2D Lidar
2D Navi Pro
2D Navi Pro
Range
Detection
Detection Angle
Angular Resolution

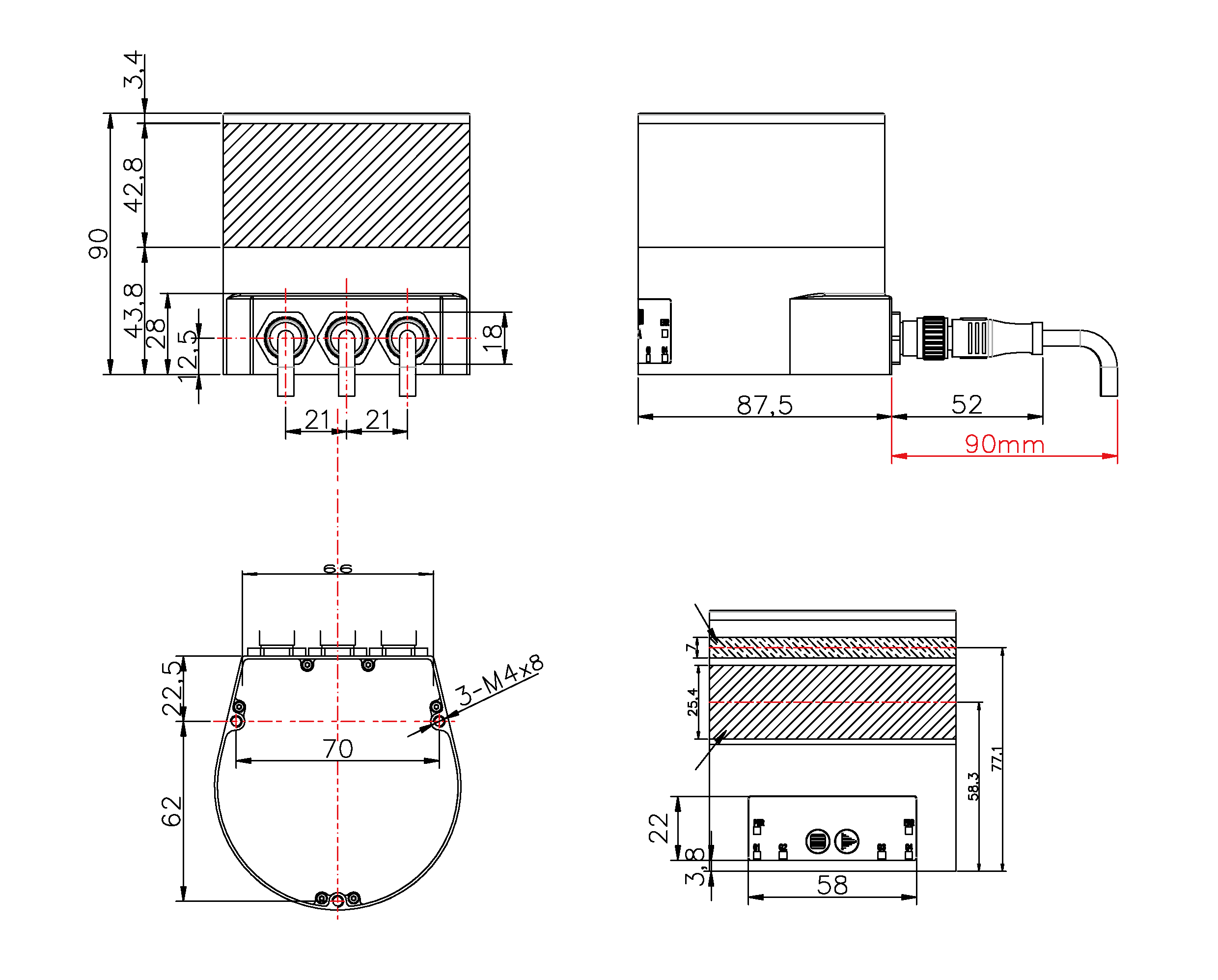

.png)
| Model | AB-LD-B01-R50-DM12 |
| Performance Parameters | |
| Detection Distance | 0.05 m–20 m (reflectivity 2%) 0.05 m–50 m (reflectivity 90%) |
| Detection Angle | 360°(2D) |
| Scan Frequency | 50K, 100K, 150K, 200K |
| Angular Resolution | 0.018° (determined by scanning frequency, motor speed, and single-point sampling count) |
| Scanning Motor Speed | 10Hz, 15Hz, 20Hz, 25Hz, 30Hz (five configurable speeds) |
| Single Point Sampling Frequency | 1-50 Hz (adjustable) |
| Recognizable Object Shape | Almost any shape |
| Measurement Resolution | 1 mm |
| Absolute Accuracy | ±20 mm |
| Measurement Noise | ±10 mm |
| Repeatability | ±10 mm |
| Essential Parameters | |
| Communication | CANOpen, Ethernet,RS485,TCP/UDP |
| Switching input | 6 × NPN |
| Switching Output | 4 × NPN |
| Number Of Regional Protections | 3 |
| Number Of Obstacle Avoidance Channels | 64 (each channel provides 3 independent detection ranges) |
| Indicator (display) Light | Green (power indicator light) Red (fault status indicator light) Red, yellow, orange, orange (output status indicator light) Red (window display light 24 * 360 pixels) |
| Cable | M12-4 Female cable (Ethernet port) M12-6 Female Head Cable (Power and Communication Ports) M12-12 Female cable (IO port) |
| Material | Aluminum Alloy, Scan Window/PMMA |
| IP Ratings | IP65 |
| Electrical Parameters | |
| Working Voltage | DC 18 – 60V |
| Rated Power | <6 W |
| Light Source Wavelength | 905 nm |
| Environmental Parameters | |
| Object Reflectivity | 2 – 1000% |
| Ambient Light | <80000 Lux (resistant to sunlight) |
| Usage Environment | -10 ℃ – 50 ℃ (indoor use), <80% RH (no frost, no condensation) |
