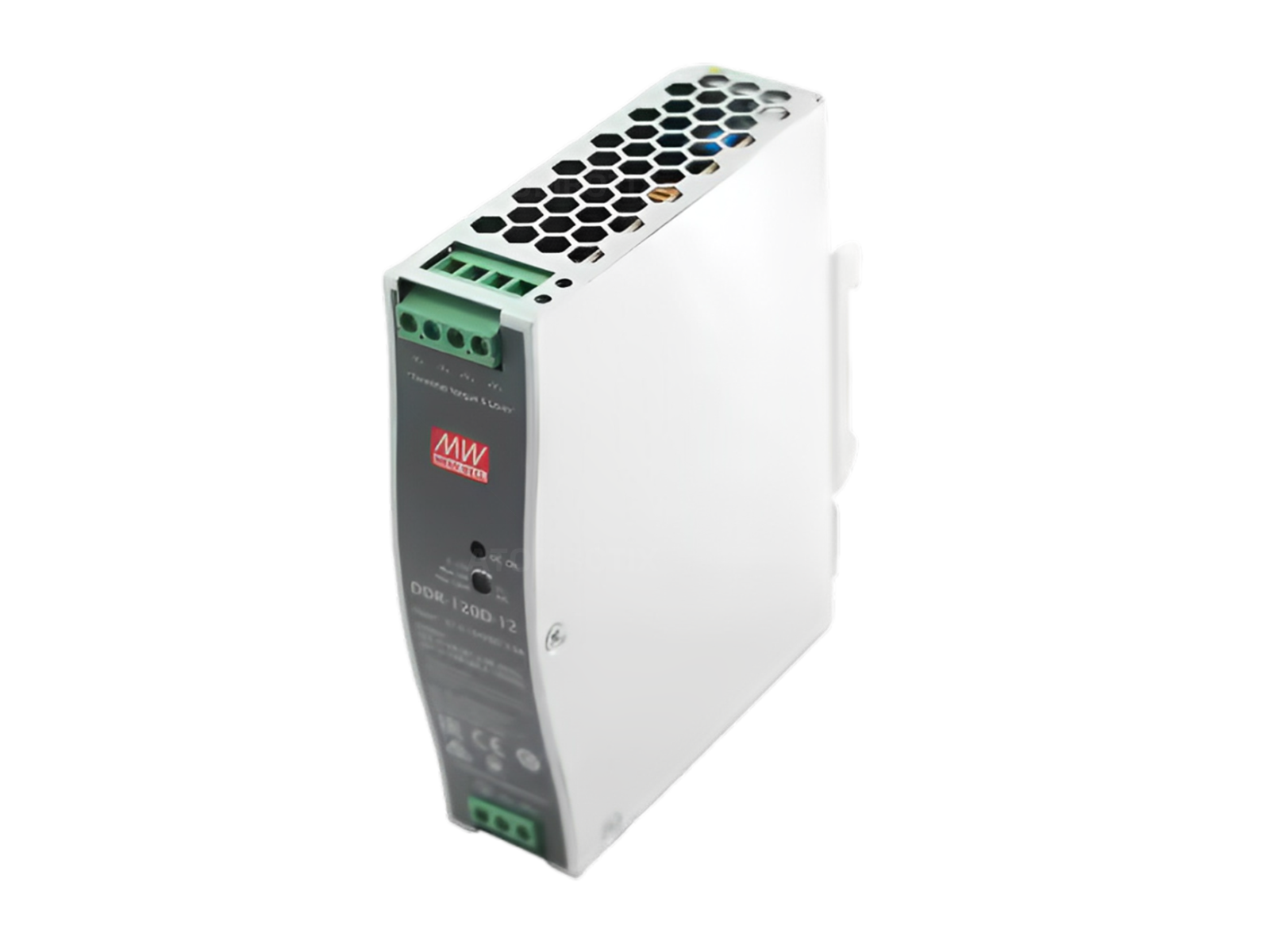

DDR-240 - DCDC - ATOMBOTIX

DCDC

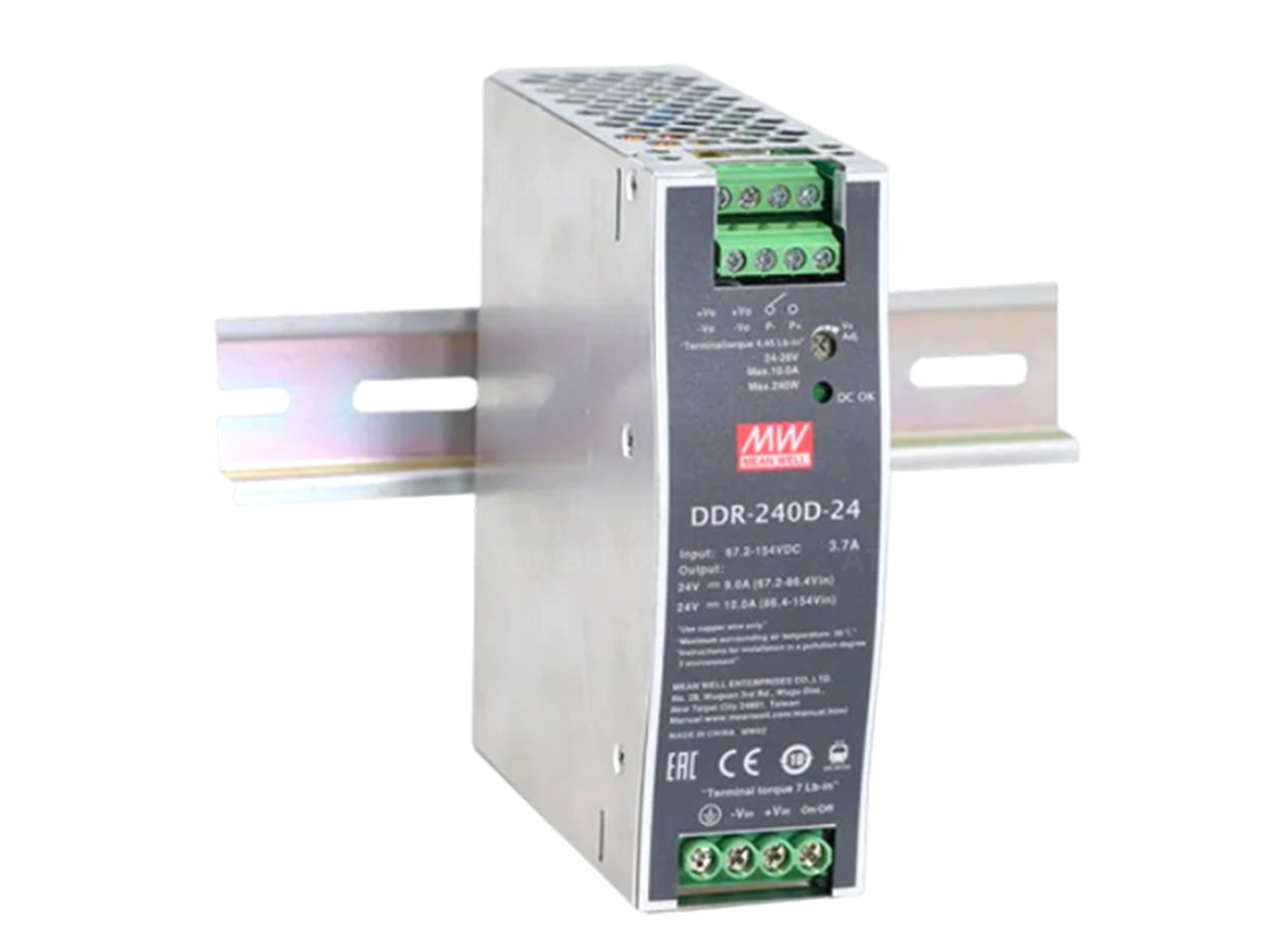

DDR-240

Rated Power

240W
Output Voltage

12/24/48V
Input Voltage

14.4-154V
Safety Standard

EN50155 Railway Standard

consult datasheet

Versatile Input Flexibility

2:1 wide input range

Comprehensive Protection

Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity

Space-Saving, Rack-Ready Design

1U low profile (39mm)

Enhanced Safety

Ultra-High Voltage Isolation 4000VDC I/O isolation

Extra Load Capacity

Supports 150% peak current for high inrush or startup demands

Optimized for AGV & AMR

EN50155 railway standard guarantee smooth performance in mobility

pec		DDR-240B-24	DDR-240B-48	DDR-240C-24
Wattage	W	240	240	240
Output Current	A	0-10	0-5	0-10
Output Voltage	V	24	48	24
Output Voltage Options		Single	Single	Single
DC output adjustment		24-28	48-56	24-28

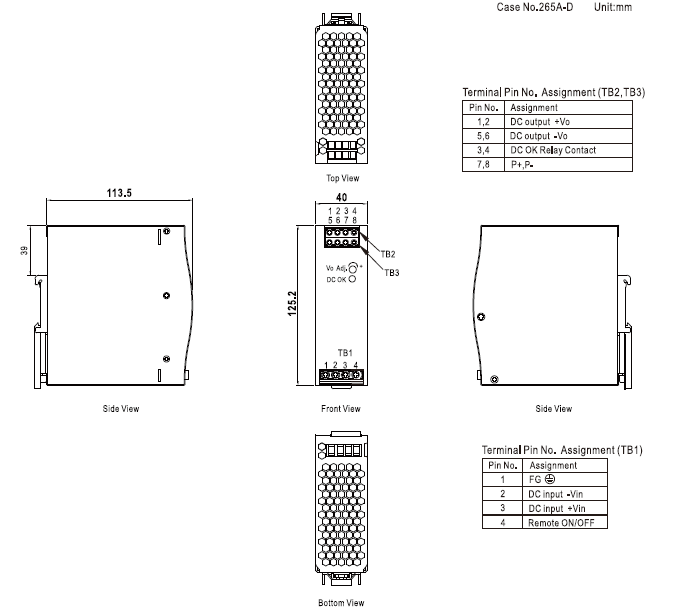

Dimensions		40 x 125.2 x 113.5	40 x 125.2 x 113.5	40 x 125.2 x 113.5
Working Temperature	°C	-40 – 70
Safety Standards		IEC 62368-1 (LVD, except for 67.2-154VIN) approved, EAC TP TC 004 approved; Design refer to UL508
EMC Standards		Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8. Compliance to EN45545-2 for fire protection ; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration EN50121-3-2 for EMC

		DDR-240C-48	DDR-240D-24	DDR-240D-48
Wattage	W	240	240	240
Output Current	A	0-5	0-10	0-5
Output Voltage	V	48	24	48
Output Voltage Options		Single	Single	Single
DC output adjustment		48-56	24-28	48-56
Dimensions		40 x 125.2 x 113.5	40 x 125.2 x 113.5	40 x 125.2 x 113.5
Working Temperature	°C	-40 – 70
Safety Standards		IEC 62368-1 (LVD, except for 67.2-154VIN) approved, EAC TP TC 004 approved; Design refer to UL508
EMC Standards		Compliance to EN55032, EN61000-3-3. Compliance to EN55024, EN61000-6-2 (EN50082-2), EN61000-4-2,3,4,5,6,8. Compliance to EN45545-2 for fire protection ; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration EN50121-3-2 for EMC
