LED

AB_LED01

An industrial-grade safety signal device featuring a bright red LED beacon, a powerful 110 dB buzzer, and a built-in 500 mA backup battery for up to 2 minutes of uninterrupted alarm.

Single Section Length

100mm
Communication Interface

RS485
Blinking Order

Fault Priority
Controller System

SD controller, DMX controller

consult datasheet

High Performance

Supports up to 16,777,216 colors with a refresh rate of 30 frames per second for vibrant and smooth display

Mature Technology

Each pixel consists of three LEDs; any single point failure does not affect

Easy Control

Directly controlled by a DMX512 signal controller — no decoder required

Versatile Display Effects

Capable of individual pixel control to create effects such as chasing lights, flowing patterns, window opening effects, animations, and more

Communication Compatibility

Supports RS485 communication, enabling integration with AGV main controllers or other industrial systems

Seamless Connection

Multiple LED strips can be connected end-to-end, enabling power and signal transmission through direct connection without additional wiring

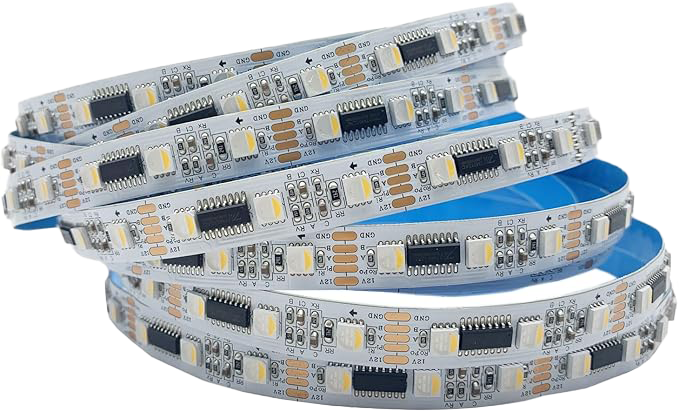

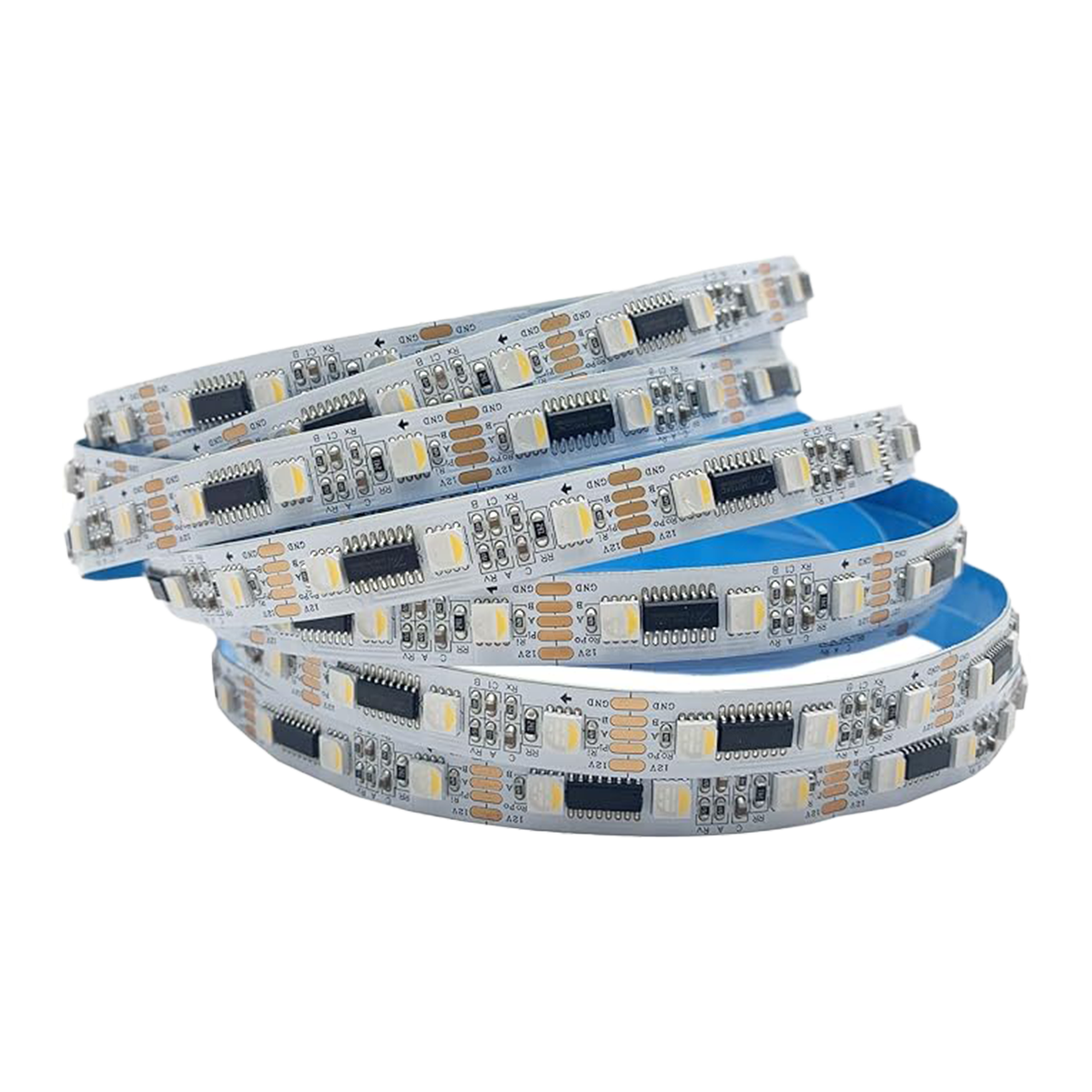

	AB-LS-DMX512-485
Number of LED Beads	60 (pcs/m)
Beam Angle	120 (degrees)
Effective Lifespan	30000 (Hours)
Weight	120 (g)
Power	19.2W/m
Input Voltage	12 (V)
LED Bead Model	5050
Luminous Flux per LED Bead	10 (lm)
Luminous Flux per LED Bead	10 (lm)
Dimmable	Support

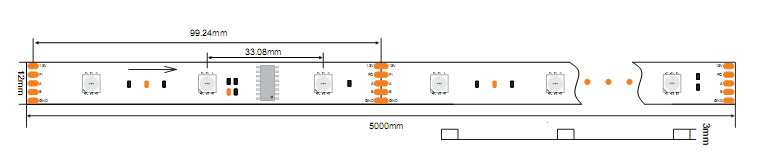

Dimension	5000102 mm
Protection Grade	Non-waterproof
Color Rendering Index (CRI)	80
Color Rendering Index (CRI)	80
Switch Type	Manual
