Stacker Truck

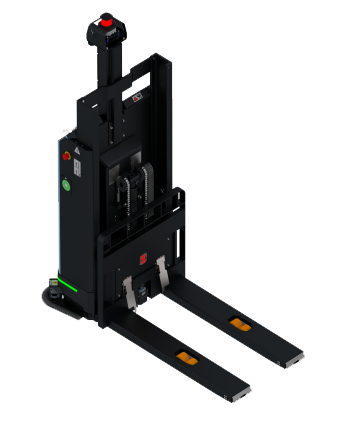

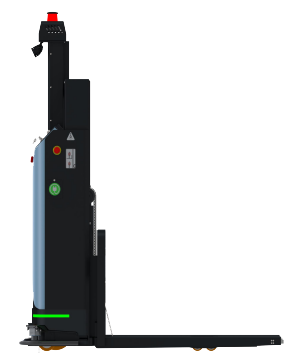

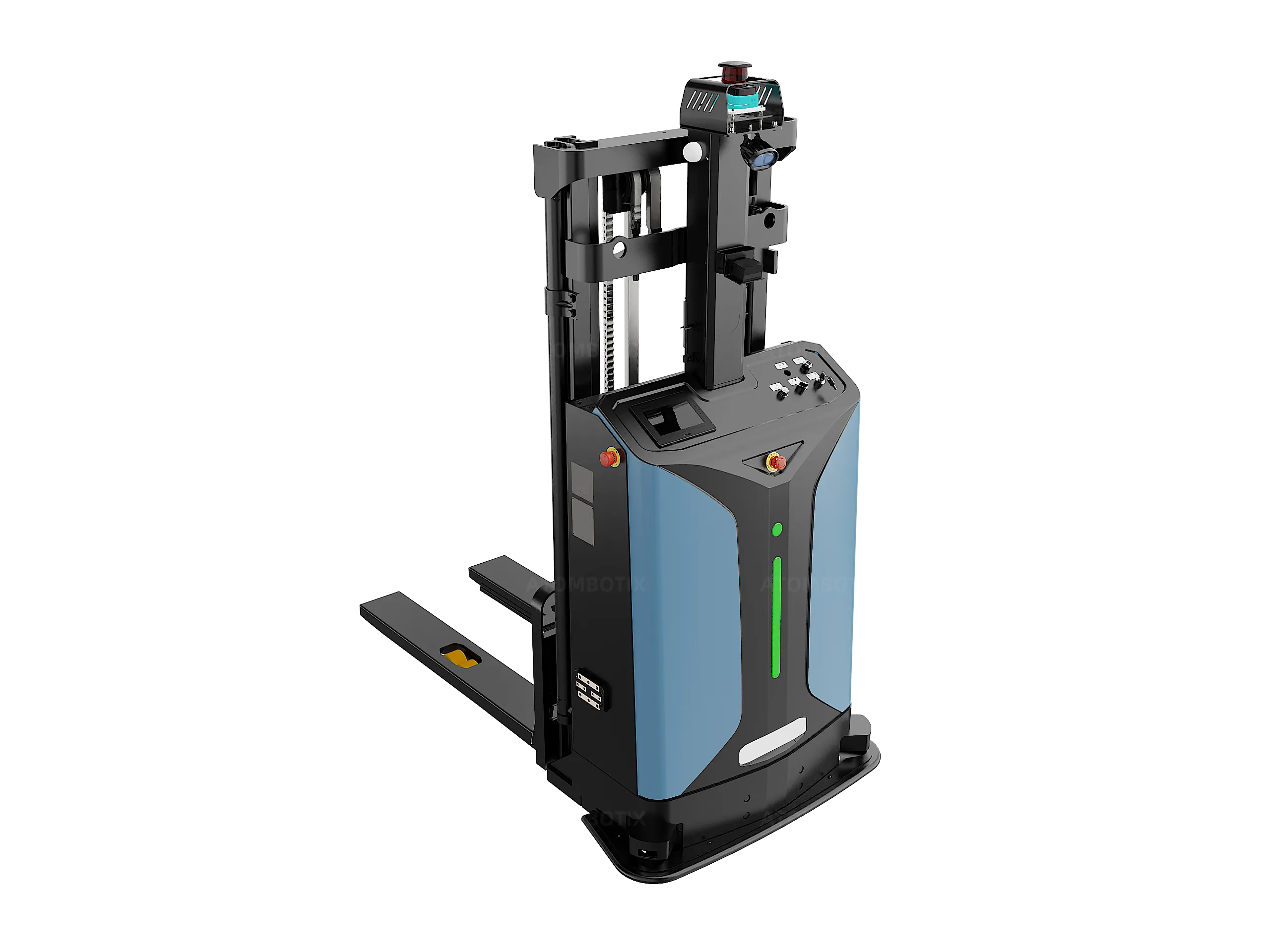

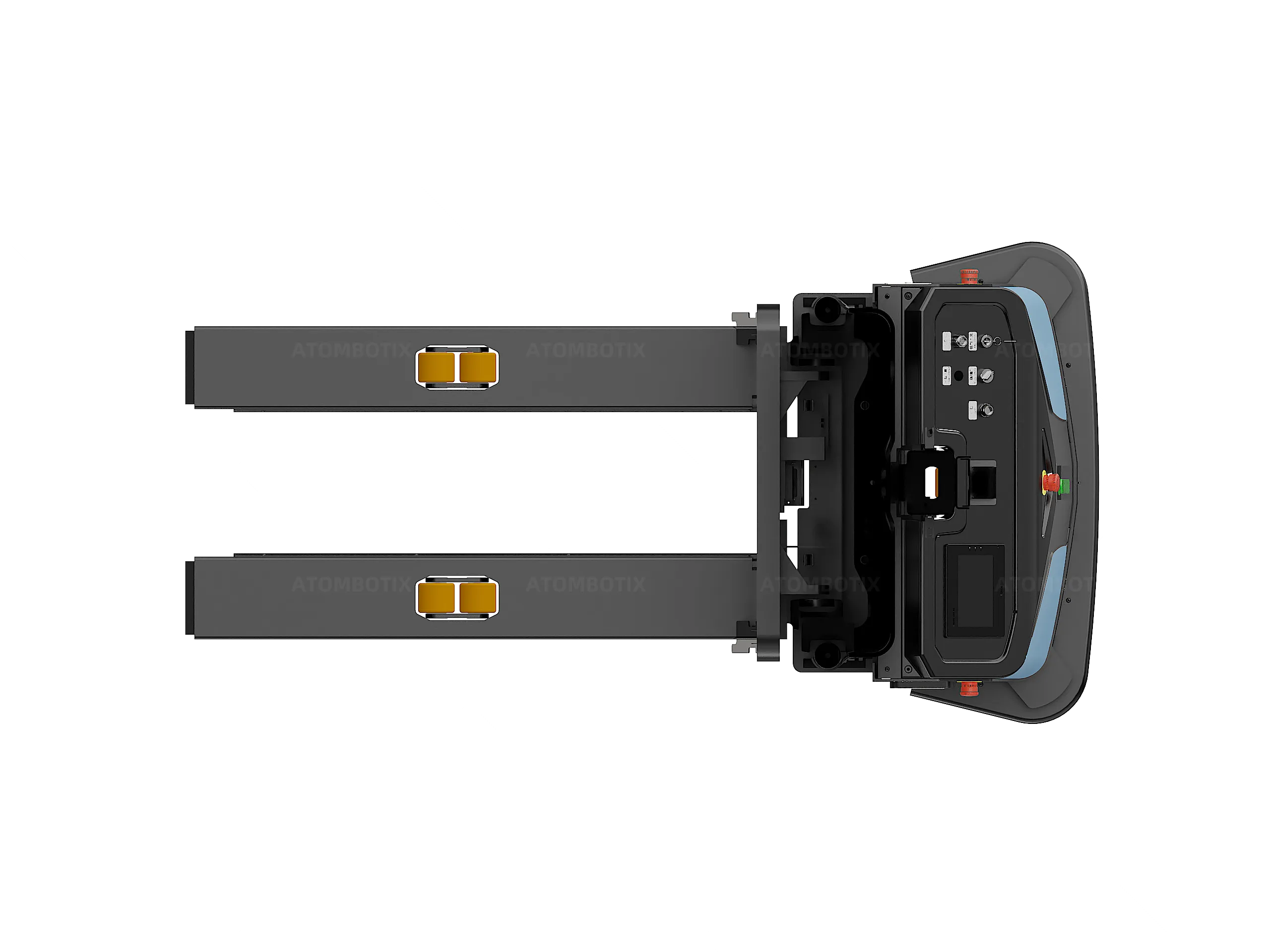

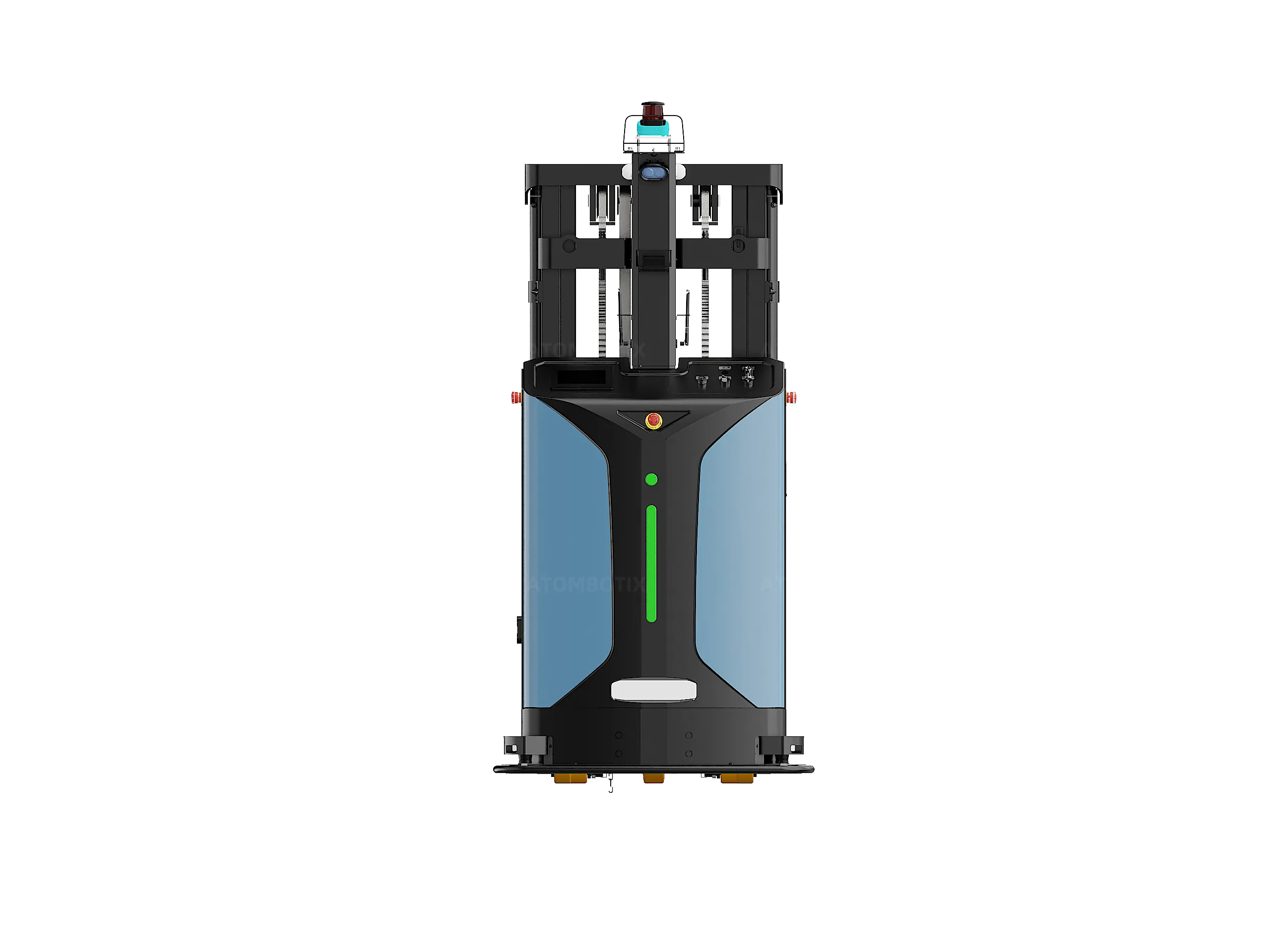

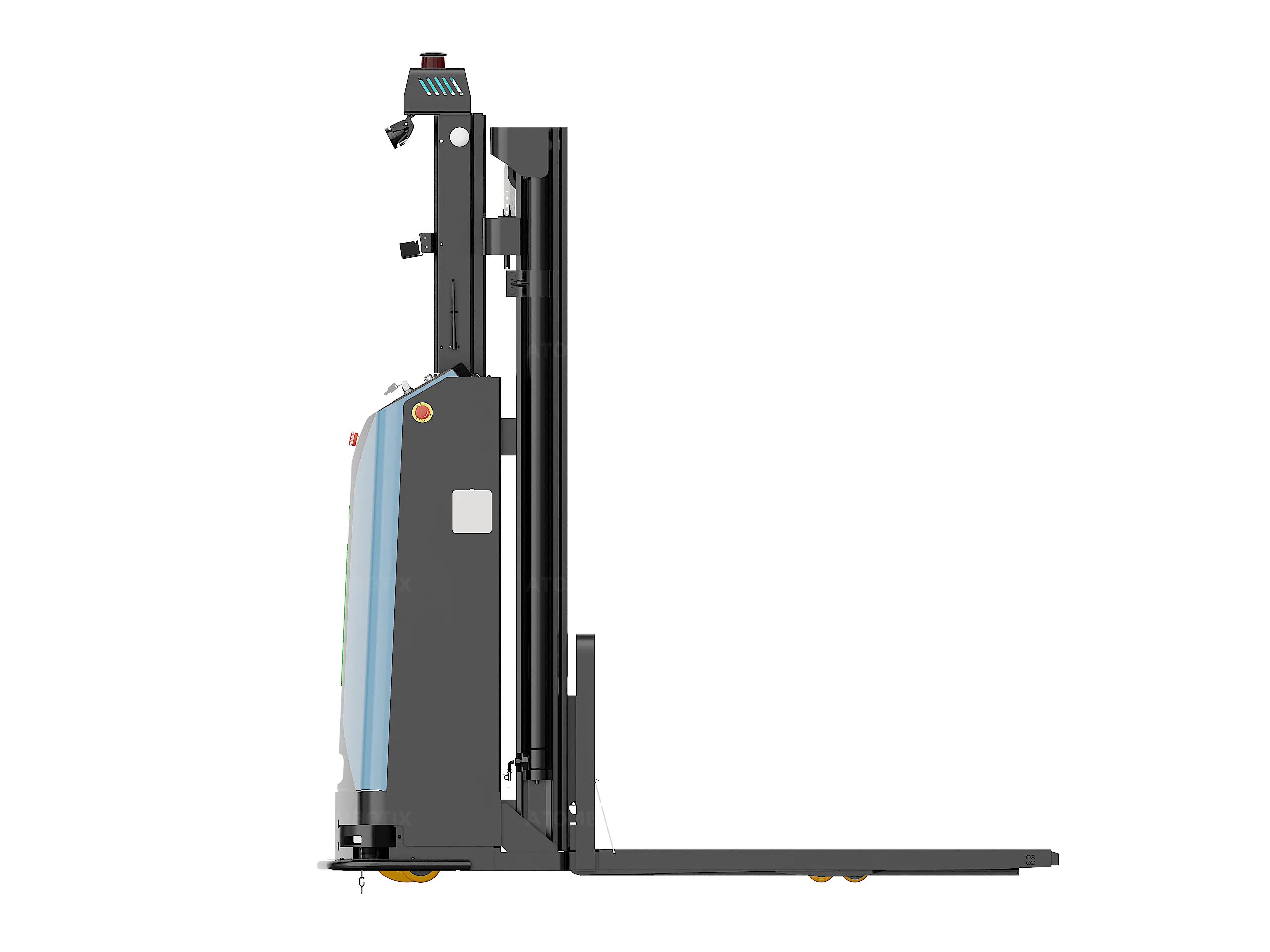

Compact Stacker 2.0T

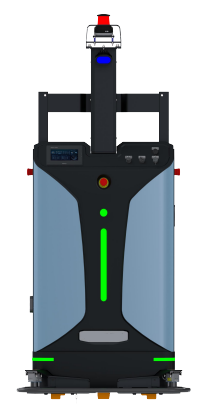

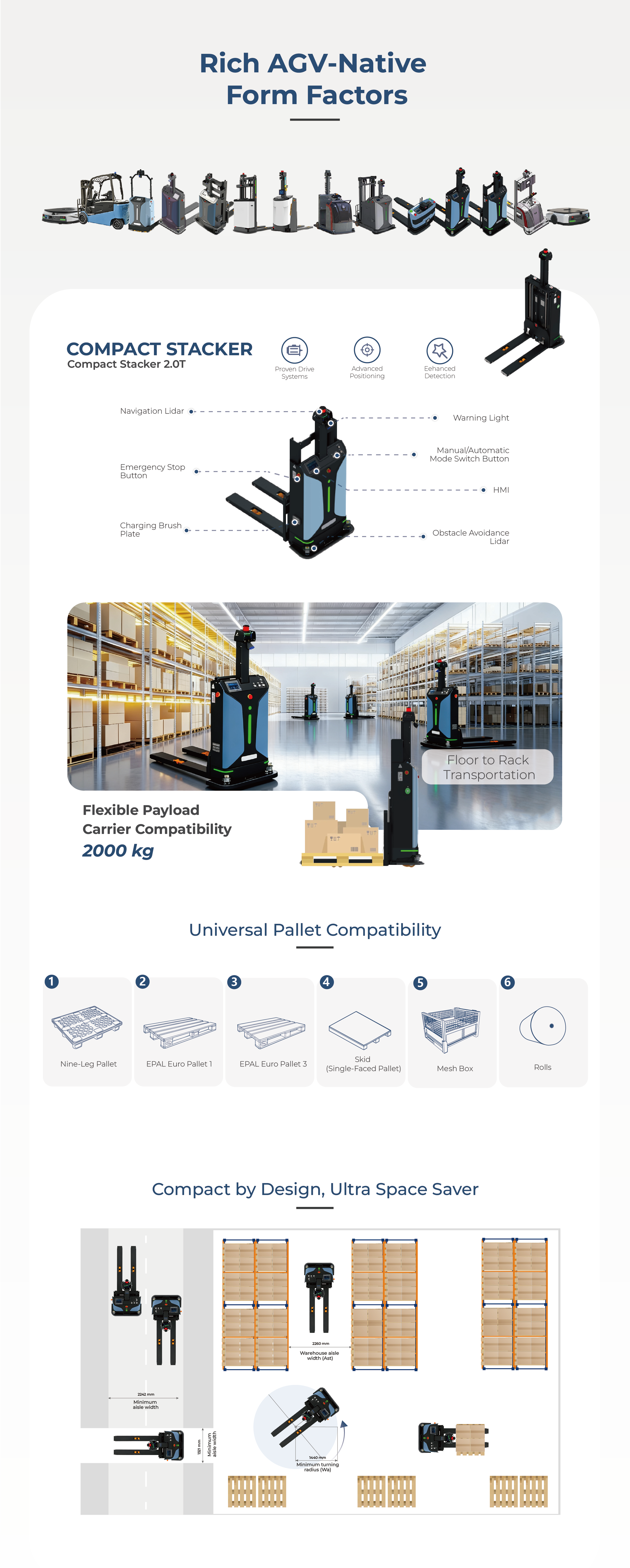

Compact Stacker 2.0T
Rated Load Capacity
Max Lifting Height
Battery

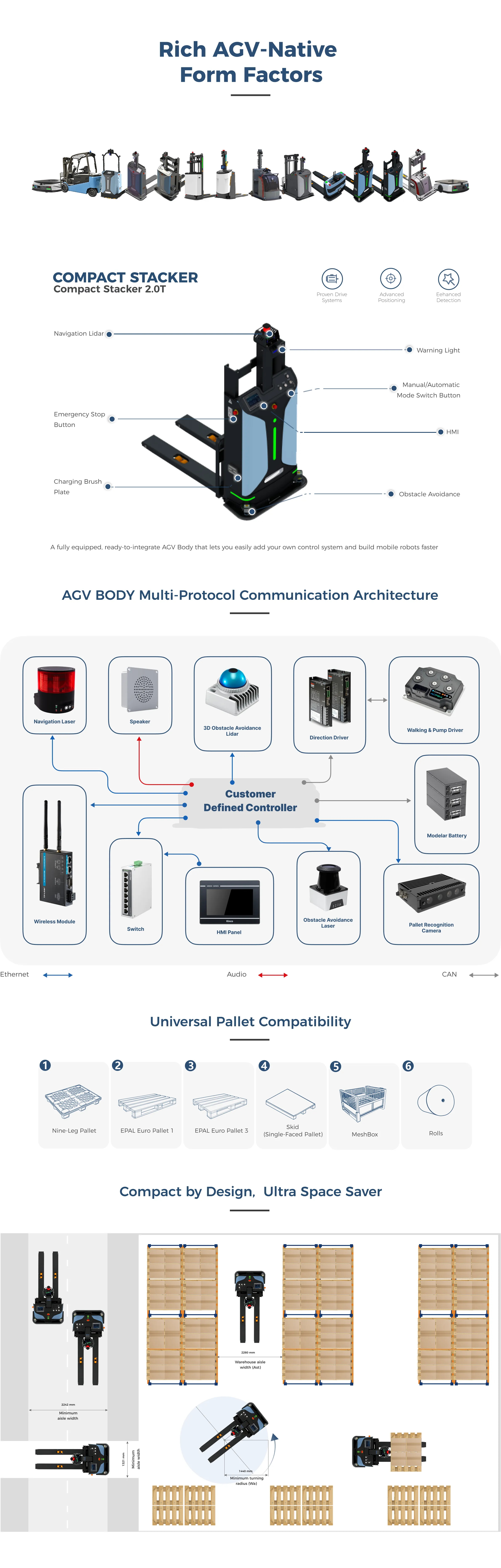

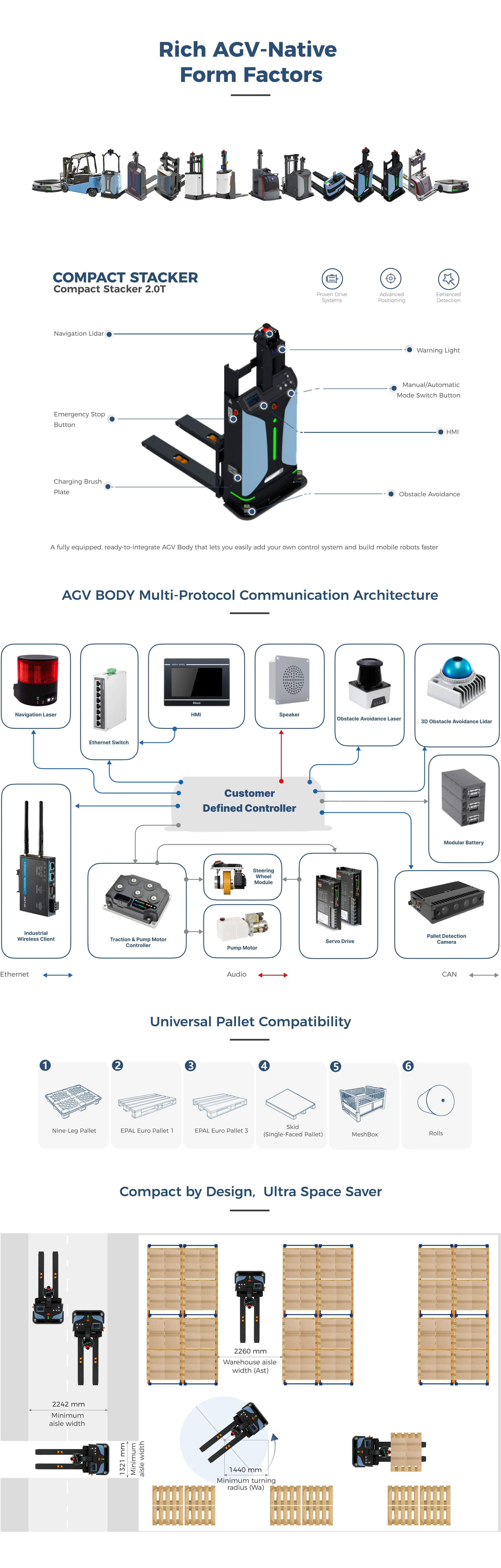

BMS Communication
.png)
.png)
| Model | AB-FLB-CS20 |
| Feature | |
| Power Type | Electric |
| Driving Style | AGV |
| Rated Load Capacity (Q) | 2000 kg |
| Load Center Distance (C) | 600 mm |
| Front Suspension Distance (x) | 649 mm |
| Wheelbase (y) | 1056 mm |
| Weight | |
| Self Weight (Including Battery) | 1200 kg |
| Axle Load (Full Load), Driving Side/Load-Bearing Side | 1020/2180 kg |
| Axle Load (Empty load), Driving Side/Load-Bearing Side | 940/260 kg |
| Wheel | |
| Tire Type | Polyurethane |
| Tire Size, Drive Wheel | Φ230×75 mm |
| Tire Size, Load-Bearing Wheels | Φ80×65 mm |
| Tire Size, Balance Wheel | Φ115×55 mm |
| Number Of Wheels, Drive Side (x=Drive Wheels)/Load-Bearing Side | 1x-2/4 |
| Front Wheel Track , Drive Side (b10) | 630 mm |
| Rear Wheel Track, Load-Bearing Side (b11) | 500 mm |

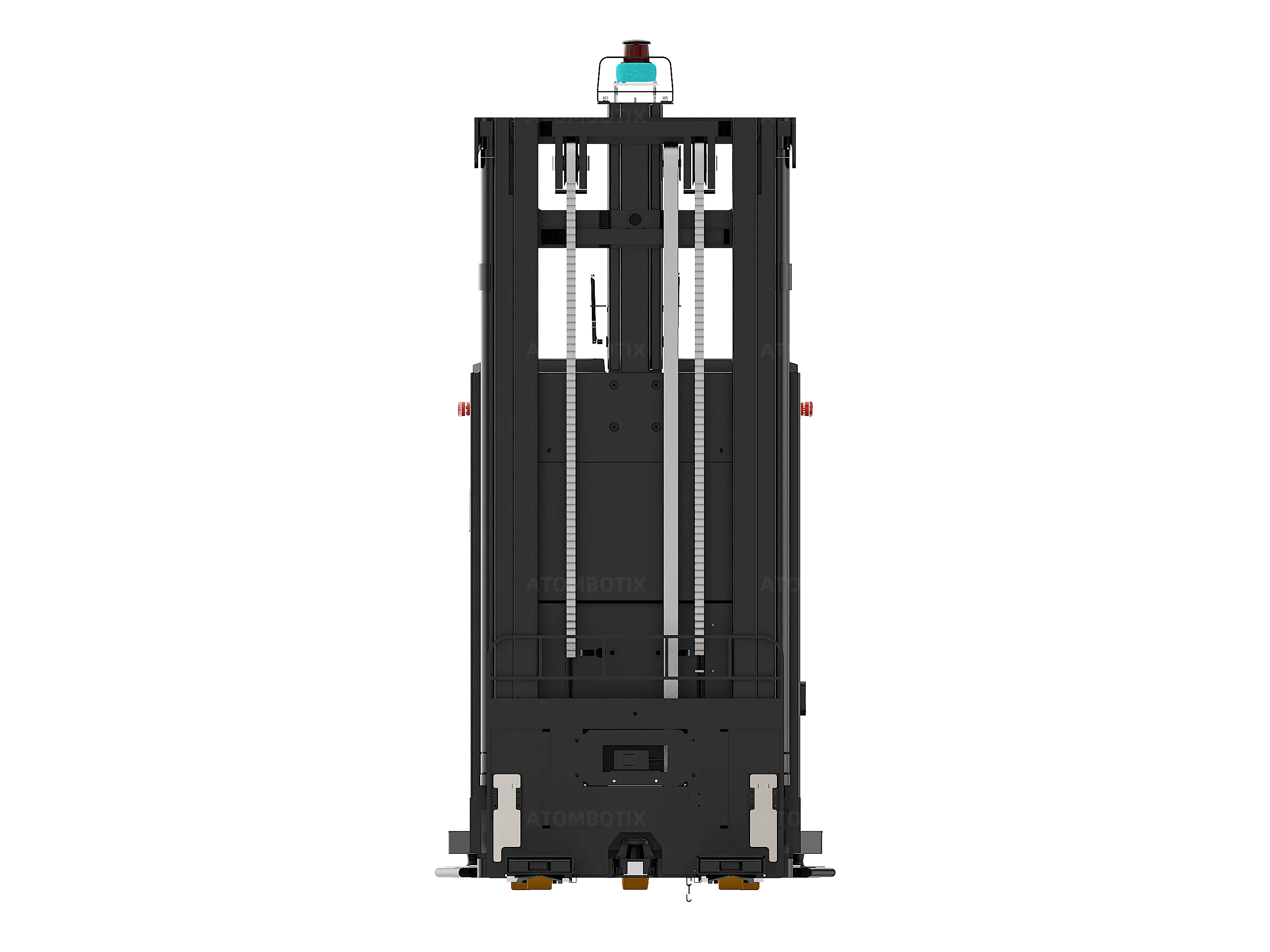

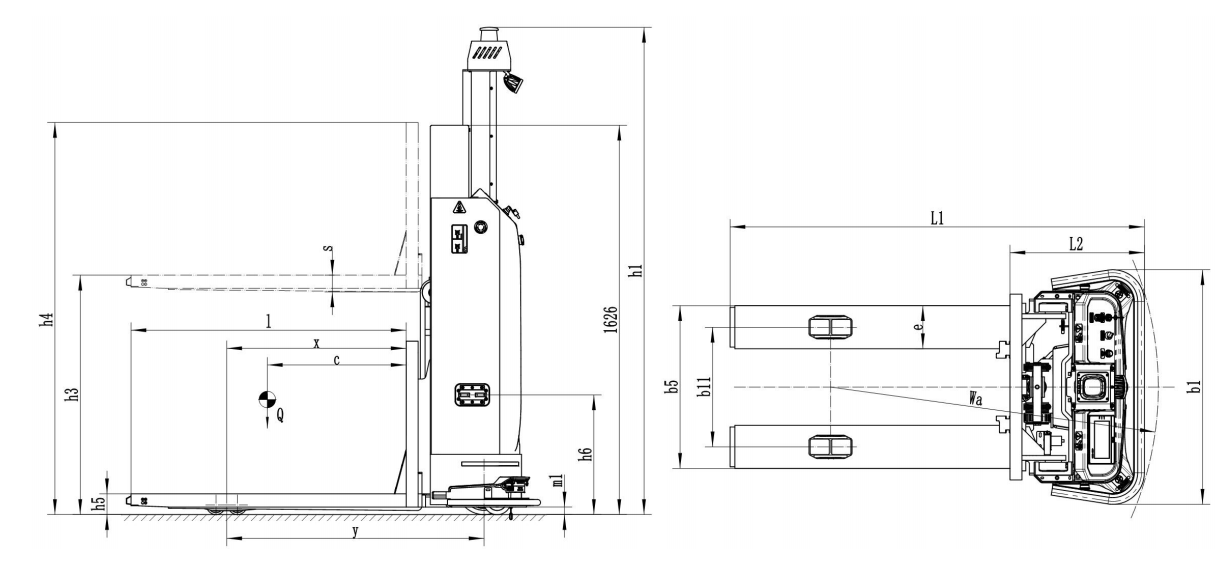

| Basic Dimensions | |
| Total Height (h1) | 2235 mm |
| Total Width | 1121 mm |
| Total Length (L1) | 1896 mm |
| Vehicle Length (Excluding Fork) (L2) | 726 mm |
| Free Lifting Height (h2) | 0 mm |
| Lifting Height (h3) | 3000 mm |
| Extended Mast Max Height (h4) | 3580 mm |
| Fork Surface Minimum Height (When The Fork Is At Its Lowest) (h5) | 85 mm |
| Charging Pad Height (h6) | 500 mm |
| Fork Size (l/e/s) | 1150/180/75 mm |
| Fork Outer Width (b5) | 680 mm |
| Min. Ground Clearance (m1) | 31 mm |
| Min. Turning Radius (Wa) | 1440 mm |
| Min. Right Angle Stacking Aisle Width | 2060+200 mm |
| Right Angle Stacking Aisle Width, Pallet 800×1200 (1200 Placed Along The Fork) | / |
| Right Angle Stacking Aisle Width, Pallet 1000×1000 (1200 Placed Along The Fork) | / |
| Right Angle Stacking Aisle Width, Pallet 1000×1200 (1200 Placed Along The Fork) | 2185+200 mm |
| Performances | |
| Driving Speed, Full load/Empty Load | 5/5 km/h |
| Lifting Speed, Full Load/Empty Load | 90/120 mm/s |
| Descent Speed, Full load/Empty load | 120/110 mm/s |
| Climbing Performance, Full Load/Empty Load | 3%/5% |
| Driving Brake Mode | Electromagnetic braking |
| Motion | |
| Drive Motor Power | 1.5 kw |
| Power of Lifting Motor | 3.0 kw |
| Steering Motor Power | 0.4 kw |
| Drive Motor Type | 24 V asynchronous AC motor |
| Steering Motor Type | 48 V DC Servo motor |
| Lifting Mechanism | Hydraulic control |
| Communication Protocol | CAN |
| Battery | |
| Weight of Battery | 58 kg |
| Battery Type | Lithium iron phosphate |
| Battery Voltage/Rated Capacity | 48/2A26:B5610 V/AH |
