IPC
AB-MC-IPC-M20-I5
.png)
| Model | AB-MC-IPC-M20-I5 |
| Operating System | Linux Ubuntu (Windows Optional, with separate License） |
| System Performance | Processor: Intel i5 1035G1 |
| Memory: DDR4 3200MHz 8GB | |
| Storage: 512G SSD | |
| Graphic | Intel® UHD Graphics |

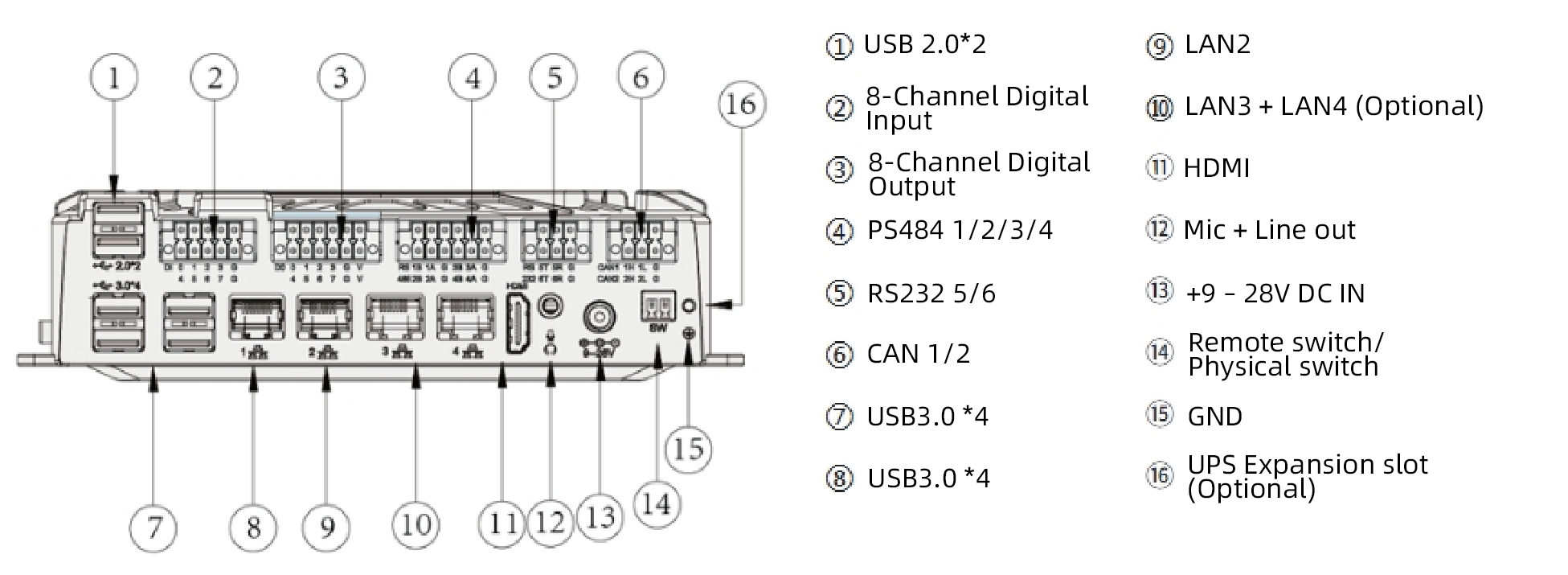

| Interface | Network： LAN1/2: Intel i211 10/100/1000Mbps LAN1/2/3/4: Intel i210 10/100/1000Mbps Support EtherCAT agreement and internet wake up.(Optional) |
| COM: 6 x COM (optional 4 x RS232+2 x RS485; 2 x RS232+4 x RS485) | |
| USB: 4 x USB3.0, 2 x USB2.0 | |
| Others: 1 x Mic-in, 1 x Line-out, 1 x HDMI | |
| DI/DO: 8 x DI, 8 x DO | |
| Voltage | +12 – 28V DC(Supports Overvoltage and Reverse polarity Protection) |
| Power Consumption | Maximum power consumption 65W (i7 1165G7 CPU/8G Memory) |
| Cooling Method | Fanless, Die-cast aluminum integrated heat dissipation or copper tube heat dissipation (i5 and above) |
| Installation | Embeded Mounting/DIN Rail Mounting/Wall Mounting |
| Dimensions | 173×52×121mm (length × width × height) |
| Environment | Electromagnetic Compatibility：IEC60068-2-64 |
| Working Environment: -20 – 50℃ (optional SSD), 0 – 40℃ (2.5″ HDD) | |
| Storage Temperature: -30 – 70℃ | |
| Vibration: with SSD: 3Grms EN60068-2-27:2009 Random vibration 5-500HZ, half an hour per axis | |
| Net Weight | 1.2 kg |
| Backup UPS | Optional (2500mAH Li-ion battery, can work continuously for 30 minutes after power off at 25℃ ambient temperature) |
| Network Modem | Optional (Wifi/4G LTE/5G) |
