Magnetic Sensor Bar-16&32&48&64
Magnetic Sensor Bar-16&32&48&64
Detection Span
Detection Height
Detection Accuracy
Detection Points

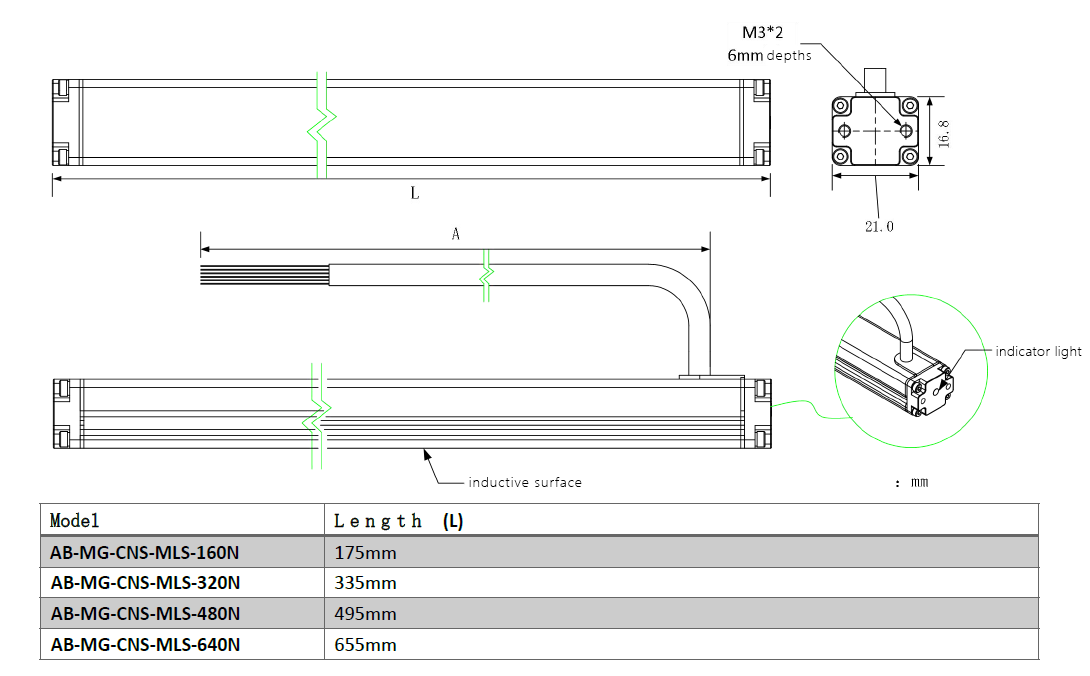

| Model | AB-MG-CNS-MLS-160N | AB-MG-CNS-MLS-320N | AB-MG-CNS-MLS-480N | AB-MG-CNS-MLS-640N |
| Performance Parameters | ||||
| Detection Height | 0 - 50mm (@ 90 Gauss magnetic stripe) | 0 - 50mm (@ 90 Gauss magnetic stripe) | 0 - 50mm (@ 90 Gauss magnetic stripe) | 0 - 50mm (@ 90 Gauss magnetic stripe) |
| Detection Range | ±75 mm | ±155 mm | ±235 mm | ±315 mm |
| Detection Accuracy | 1 mm | 1 mm | 1 mm | 1 mm |
| Number of Detection Points | 16 | 32 | 48 | 64 |
| Distance Between Detection Points | 10 mm | 10 mm | 10 mm | 10 mm |
| Sensor Sensitivity | 0-9 Level (Configurable) | 0-9 Level (Configurable) | 0-9 Level (Configurable) | 0-9 Level (Configurable) |
| Induction Polarity | N-pole,S-pole,NS-pole (Configurable) | N-pole,S-pole,NS-pole (Configurable) | N-pole,S-pole,NS-pole (Configurable) | N-pole,S-pole,NS-pole (Configurable) |
| Detection Signal | N/S pole magnetic field signal | N/S pole magnetic field signal | N/S pole magnetic field signal | N/S pole magnetic field signal |
| Response Time | 5 ms | 5 ms | 5 ms | 5 ms |
| Basic Error | 1 mm | 1 mm | 1 mm | 1 mm |
| Detection Magnetic Field Strength Range | 1.5-165 Gauss | 1.5-165 Gauss | 1.5-165 Gauss | 1.5-165 Gauss |
| Number of Supported Magnetic Strips | 3 | 3 | 3 | 3 |
| Electrical Parameter | ||||
| Retad Voltage | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% |
| Working Volatge | DC 12-36V | DC 12-36V | DC 12-36V | DC 12-36V |
| Working Current | < 20mA (Typical Value) | < 20mA (Typical Value) | < 20mA (Typical Value) | < 20mA (Typical Value) |
| Power | ≤ 7W | ≤ 7W | ≤ 7W | ≤ 7W |
| Basic Parameters | ||||
| Interface | RS232, RS485, Modbus, CAN | RS232, RS485, Modbus, CAN | RS232, RS485, Modbus, CAN | RS232, RS485, Modbus, CAN |
| Recommended Magnetic Rail Specification | Width: 30/50 mm, Thickness: 1.2 mm | Width: 30/50 mm, Thickness: 1.2 mm | Width: 30/50 mm, Thickness: 1.2 mm | Width: 30/50 mm, Thickness: 1.2 mm |
| Recommended Magnetic Strip Specification | 10–30mm in diameter | 10–30mm in diameter | 10–30mm in diameter | 10–30mm in diameter |
| Magnetic Strip Position Deviation Data | Supported | Supported | Supported | Supported |
| Magnetic Field Strength Detection Data | Supported | Supported | Supported | Supported |
| Position Output | Supported | Supported | Supported | Supported |
| Switch Signal Output | Supported (Comm. output for switching values only) | Supported (Comm. output for switching values only) | Supported (Comm. output for switching values only) | Supported (Comm. output for switching values only) |
| Track Selection Function | Supported (Left branch, Straight, Right branch commands) | Supported (Left branch, Straight, Right branch commands) | Supported (Left branch, Straight, Right branch commands) | Supported (Left branch, Straight, Right branch commands) |
| Environmental Parameters | ||||
| Temperature | -10℃ – 50℃, indoor | -10℃ – 50℃, indoor | -10℃ – 50℃, indoor | -10℃ – 50℃, indoor |
| Humidity | < 80% Rh, without codensation and frosting | < 80% Rh, without codensation and frosting | < 80% Rh, without codensation and frosting | < 80% Rh, without codensation and frosting |
| Background Magnetic Field | < 1Gauss | < 1Gauss | < 1Gauss | < 1Gauss |
