Stacker Truck

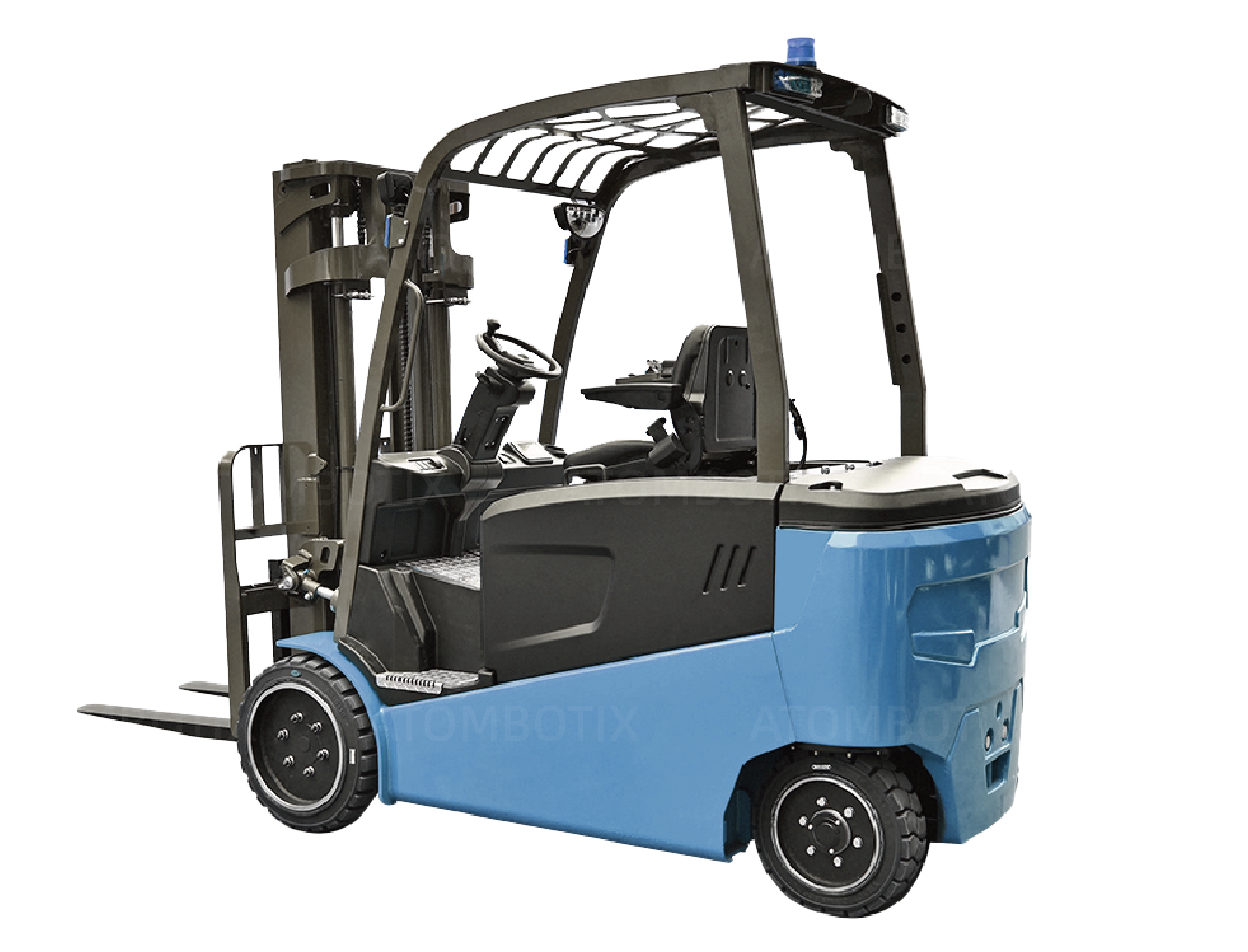

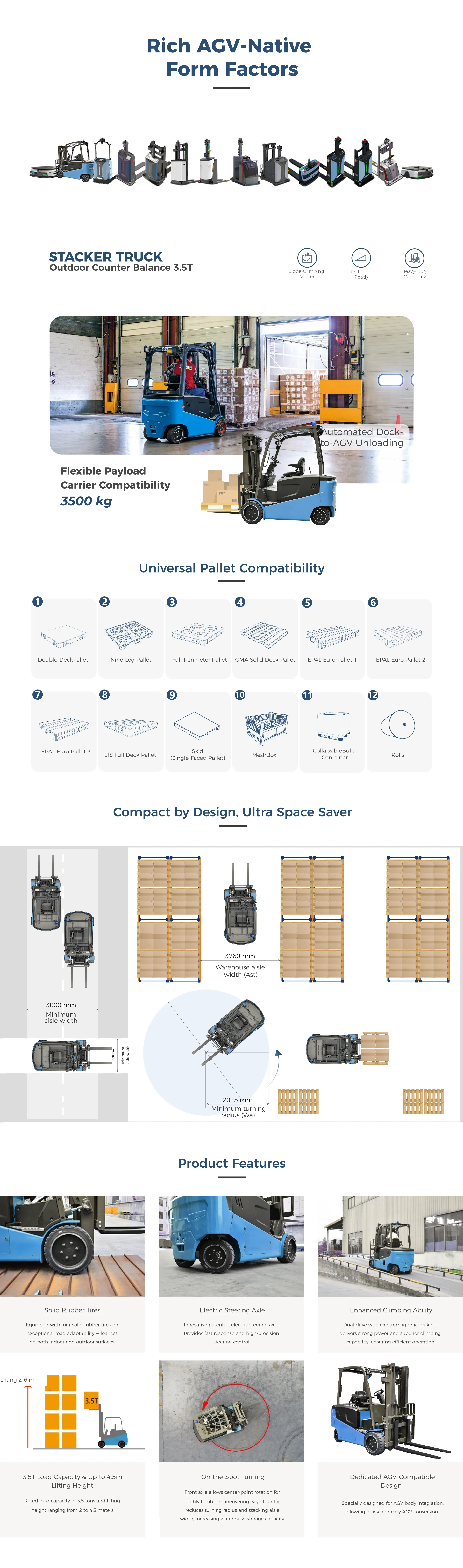

Outdoor Counter Balance 3.5T
Outdoor Counter Balance 3.5T
Rated Load Capacity
Max Lifting Height
Battery
BMS Communication
.png)
.png)

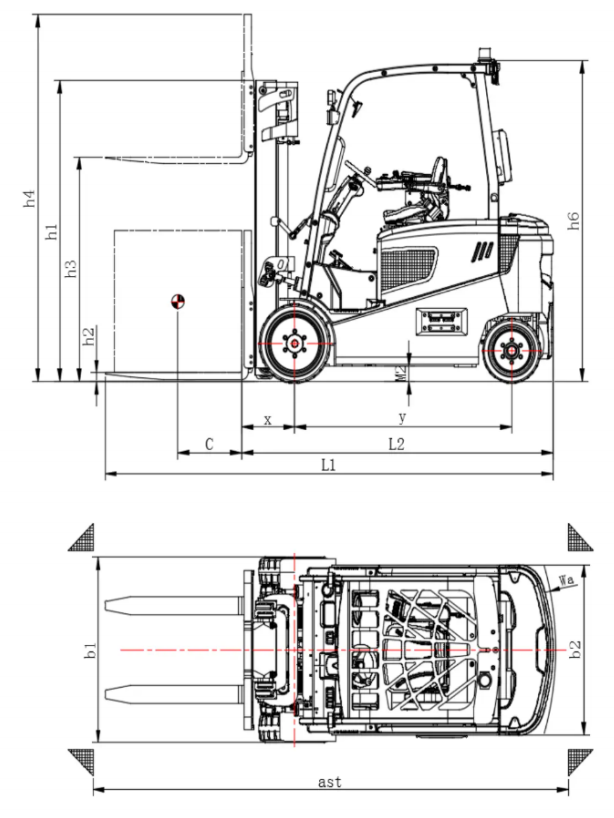

| Model | AB-FLB-CB35-Outdoor |
| Feature | |
| Power Type | Electric |
| Driving Style | Sit-on |
| Rated Load Capacity (Q) | 3500 kg |
| Load Center Distance (C) | 500 mm |
| Front Suspension Distance (x) | 417 mm |
| Wheelbase (y) | 1700 mm |
| Weight | |
| Self Weight (Including Battery) | 5380 kg |
| Axle Load (Full Load), Driving Side/Load-Bearing Side | 7810/1060 kg |
| Axle Load (Empty load), Driving Side/Load-Bearing Side | 2490/2910 kg |
| Wheel | |
| Tire Type | Solid rubber tire |
| Tire Size, Drive Wheel | 559 × 203 × 406 mm |
| Tire Size, Load-Bearing Wheels | 457 × 152 × 308 mm |
| Tire Size, Balance Wheel | / |
| Number of Wheels, Drive Side (x=Drive Wheels)/Load-Bearing Side | 2x/2 |
| Front Wheel Track , Drive Side (b10) | 1100 mm |
| Rear Wheel Track, Load-Bearing Side (b11) | 780 mm |
| Basic Dimensions | |
| Inclination Angle of Gate Frame (Front / Rear) | 6° / 6° |
| Total Height （h1） | 2120 mm |
| Free Lifting Height （h2） | 160 mm |
| Lifting Height (h3) | 3300 mm |
| Extended Mast Min. Height (h4) | 4060 mm |
| Roof Rrotection Frame Height | 2250 mm |
| Seat Height | 1140 mm |
| Vehicle Length | 3510 mm |
| Body Length (excluding forks) | 2440 mm |
| Vehicle Width(Front/Rear) | 1300/1200 mm |
| Fork Size | 1070/125/50 mm |
| Fork Frame Width | 1100 mm |
| Fork Outer Distance | 450-1050 mm |
| Gap Between The Mast and the Ground | 100 mm |
| Ground Clearance of the Vehicle Body | 110 mm |
| Min. Stack Aisle Width (1000 × 1200 Cross Fork) | 3760 mm |
| Min. Stack Aisle Width (800 × 1200 Along The Fork) | 3890 mm |
| Min. Turning Radius | 2025 mm |
| Performances | |
| Driving Speed, Full / Empty (Manual) | 15/15 km/h |
| Driving Speed, Full / Empty (Automatic) | 7/8 km/h |
| Maximum Climbing Ability, Full / Empty Load (S2-5min) | 14% / 15% |
| Braking Mode for Driving(Artificial) | Hydraulic |
| Braking Mode for Driving(Automatic) | Electromagnetism |
| Braking Method, Parking | Electromagnetism |
| Drive | |
| Drive Motor Power (S2-60min) | AC 6×2 kw |
| Lifting Motor Power (S3-15%) | AC 12.8 kw |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Battery, Voltage / Rated Capacity | 80 / 460 V/AH |
| Battery Weight | 380 kg |
| Steering Motor Power | AC0.75×2 kw |
