Lifting and Rotating Mechanism

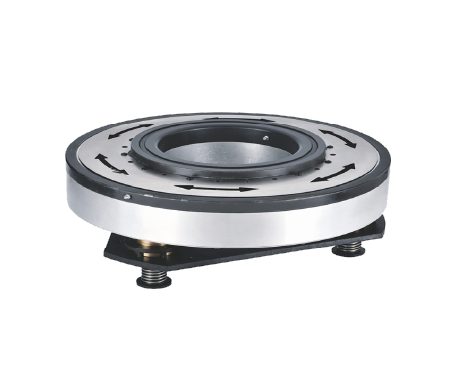

A compact all-in-one direct-drive module that integrates lifting and rotation, offering high precision, fast response, long service life, and stable performance for 500–2000 kg payloads while saving space.

Motor Power

400-1200 W
Route

50-60 mm
Self weight

26.5-88 kg
Limit Sensor

Sick-24 V

consult datasheet

Large Load Range

Covers 500 - 2000kg and adapts to various load types

Compact Structure

Direct-drive structure enables fast torque output for agile robot performance

High Precision

Quick response, accurate positioning, anti-interference

Superior Quality

Wear-resistant, anti-aging, long service life

Excellent Design

Stable operation with low noise

Powerful Function

Has both rotation and lifting functions

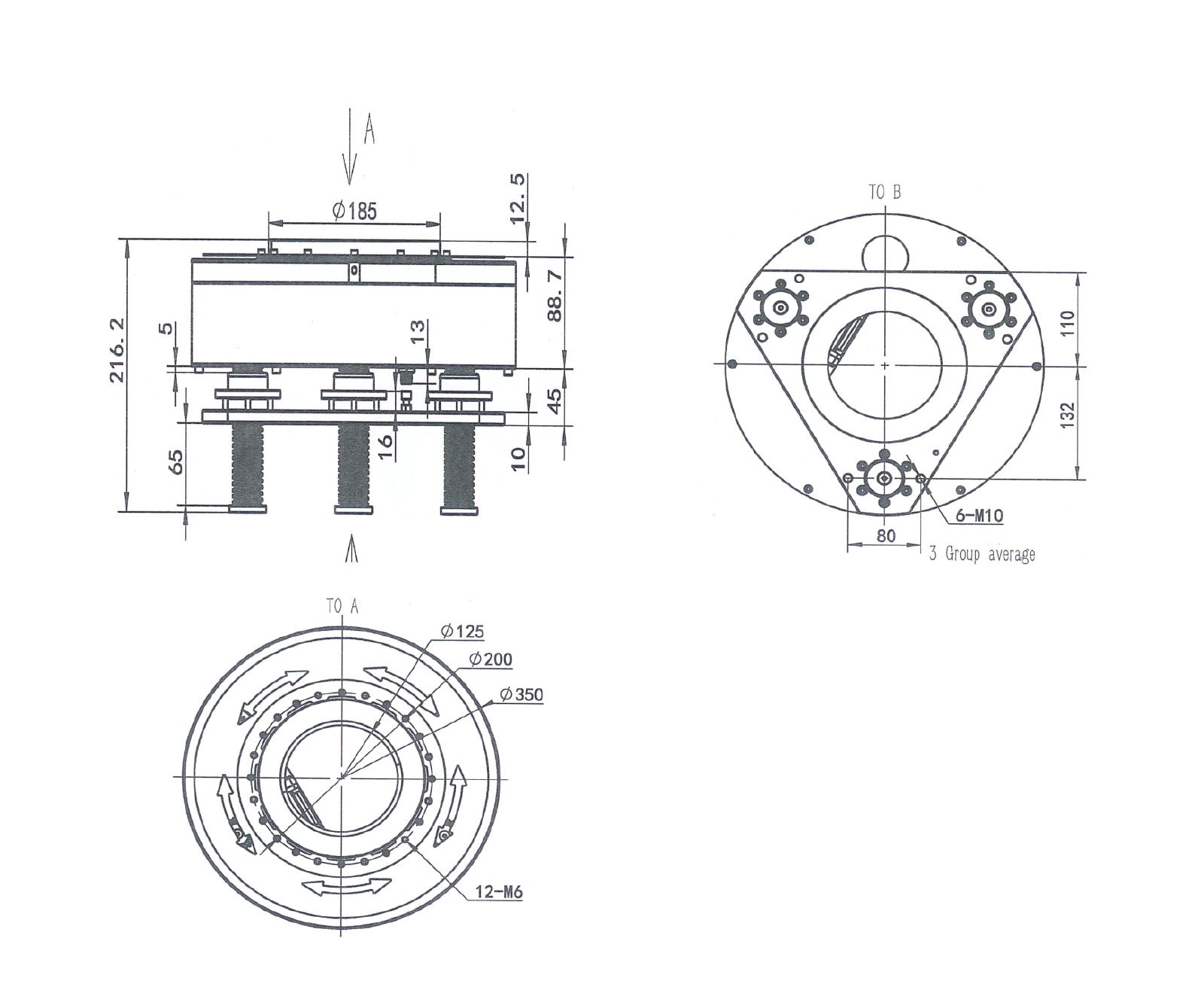

Model	AB-LRP-P400-L60C500	AB-LRP-P600-L50C1000	AB-LRP-P750-L50-C1500	AB-LRP-P1200-L50-C2000
Lift Parameters
Route (mm)	60	50	50	50
Reducer Ratio	40	40	49.5	49.5
Up/Down Speed (mm/s)	6.25	7.5	10	10
Lift Motor Parameters
Load (kg)	500	1000	1500	2000
Power (W)	400	600	750	1200
Voltage (V)	48	48	48	48
Torque (N·m)	1.27	1.91	2.39	4
Rotation Parameters
Ratio	241.6	355.6	202.5	202.5
Rotate 90° (s/90°)	1.21	1.78	1.01	1.01
Weight (kg)	30	58	88.8	88.8
