Stacker Truck

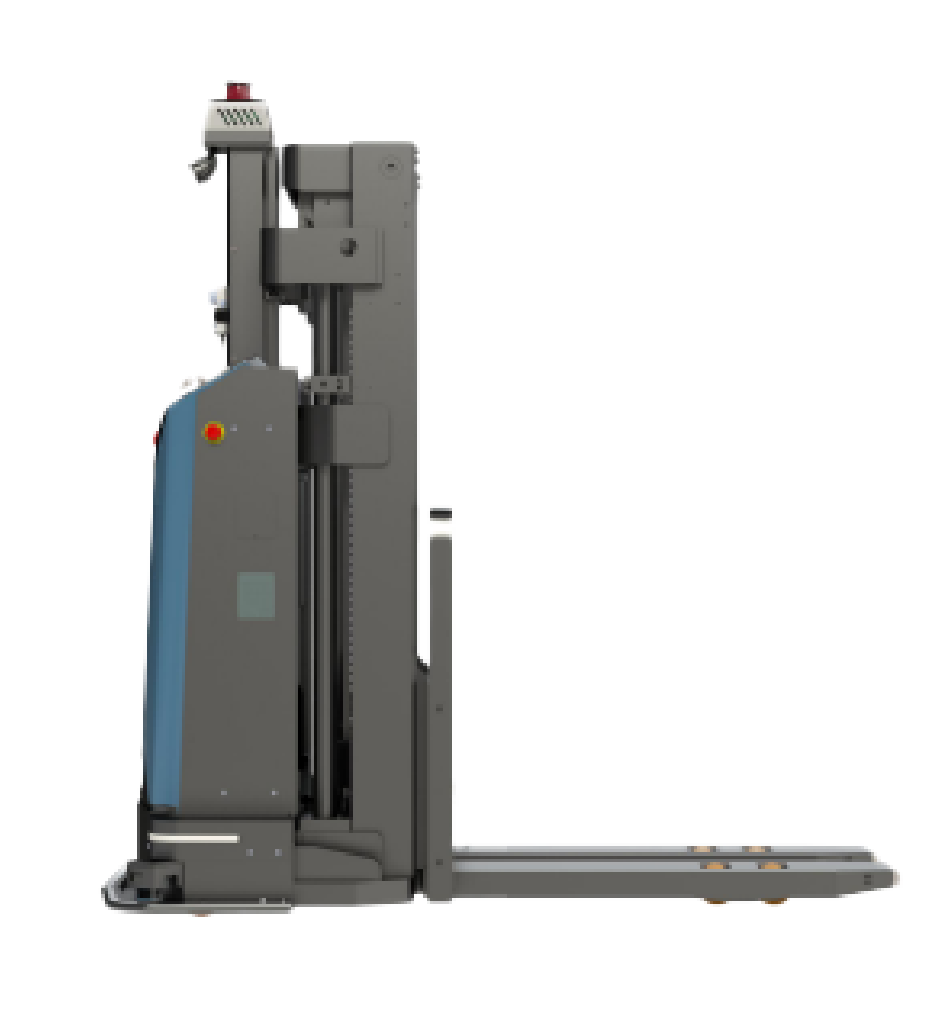

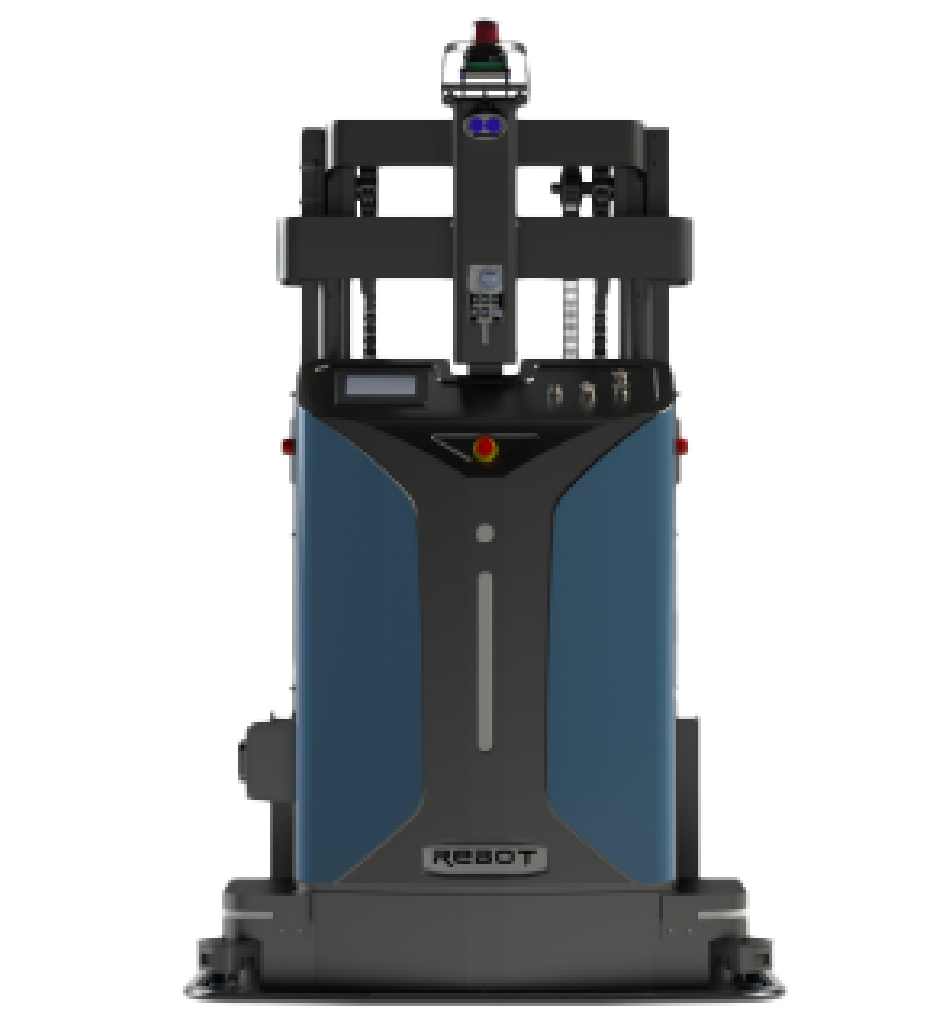

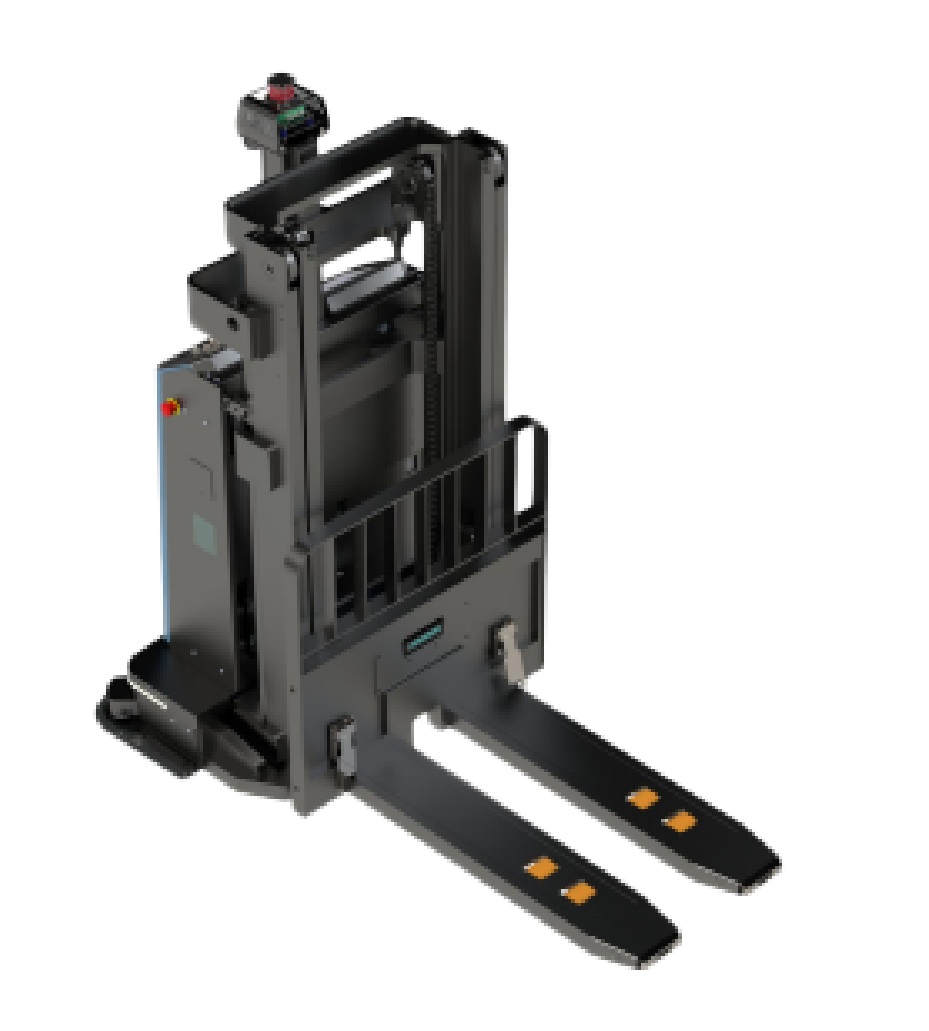

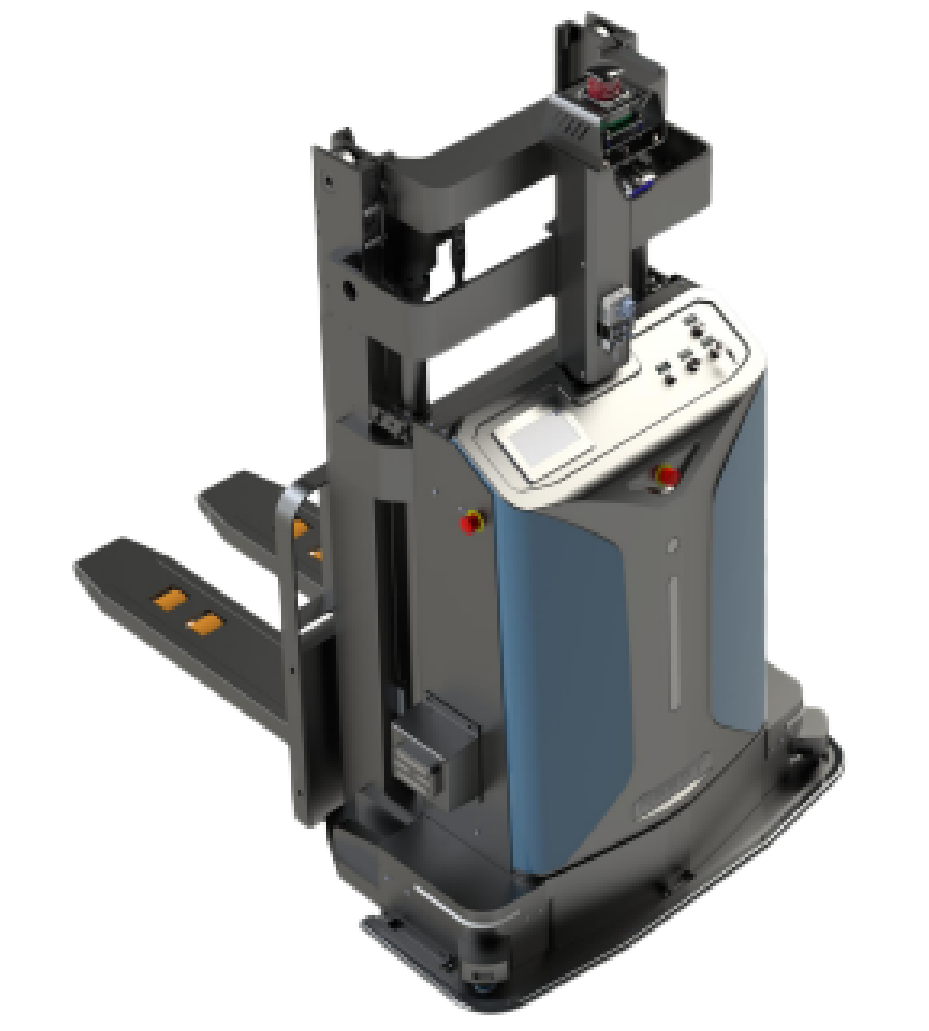

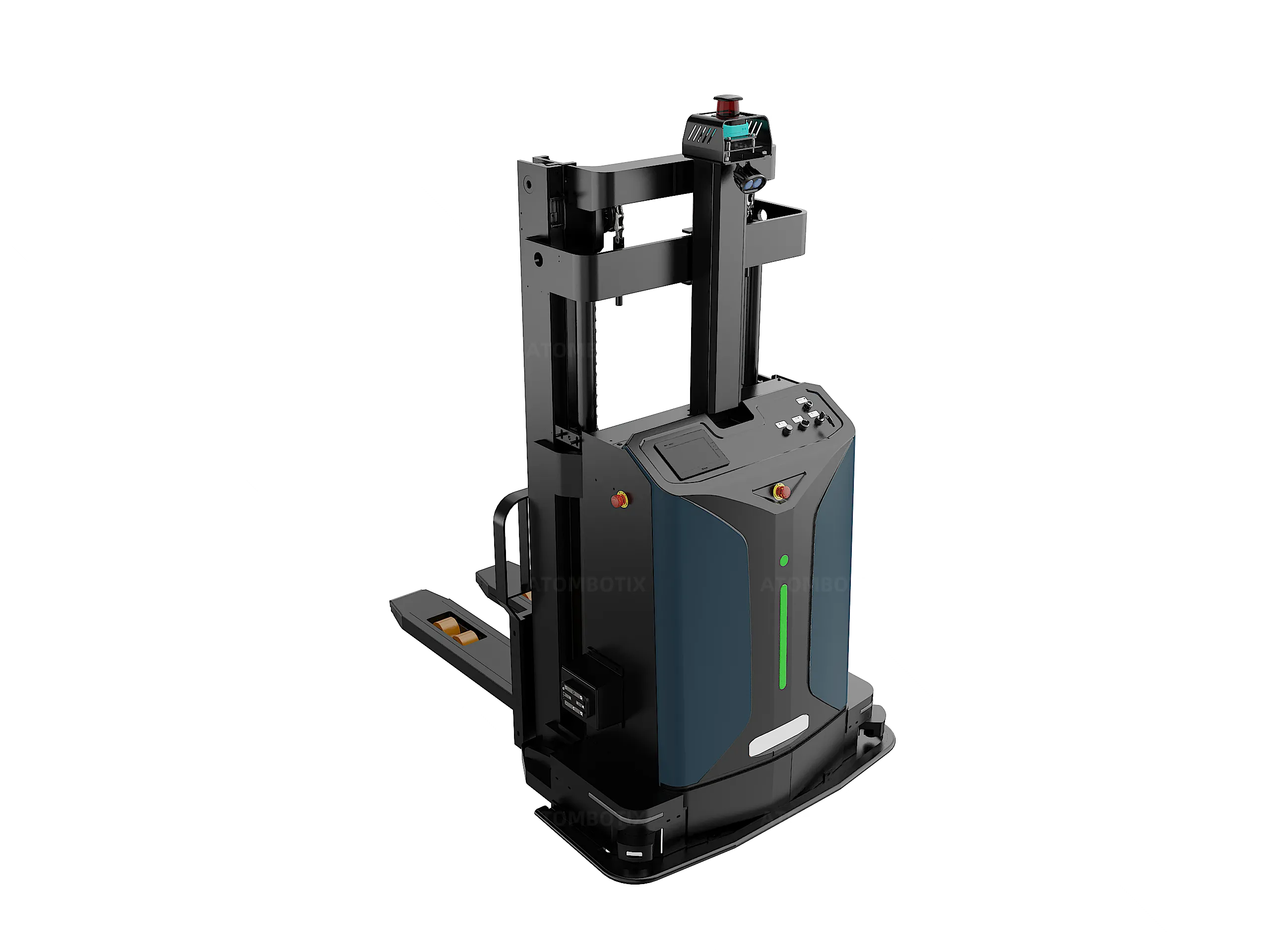

Compact Stacker 3.0T

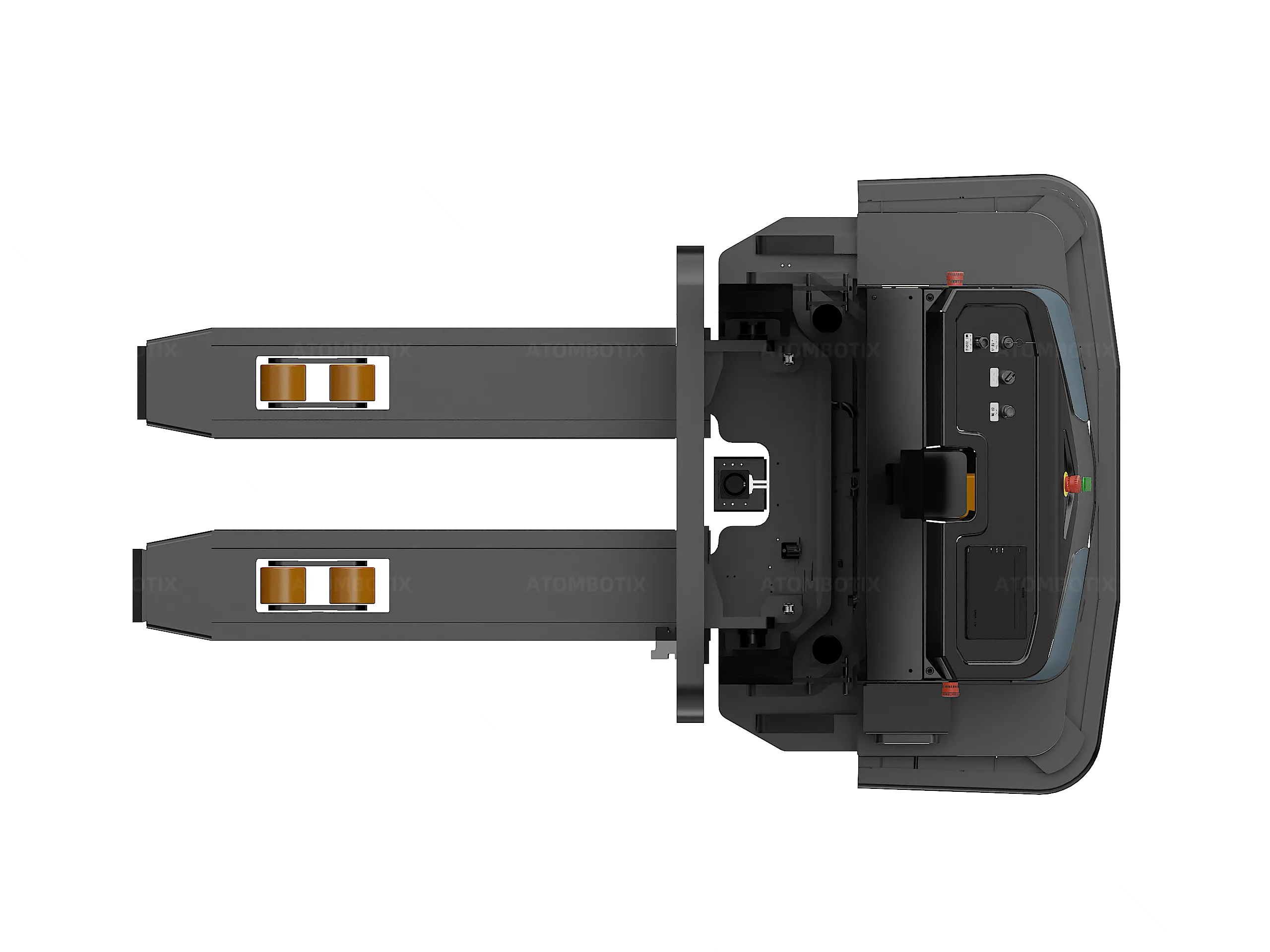

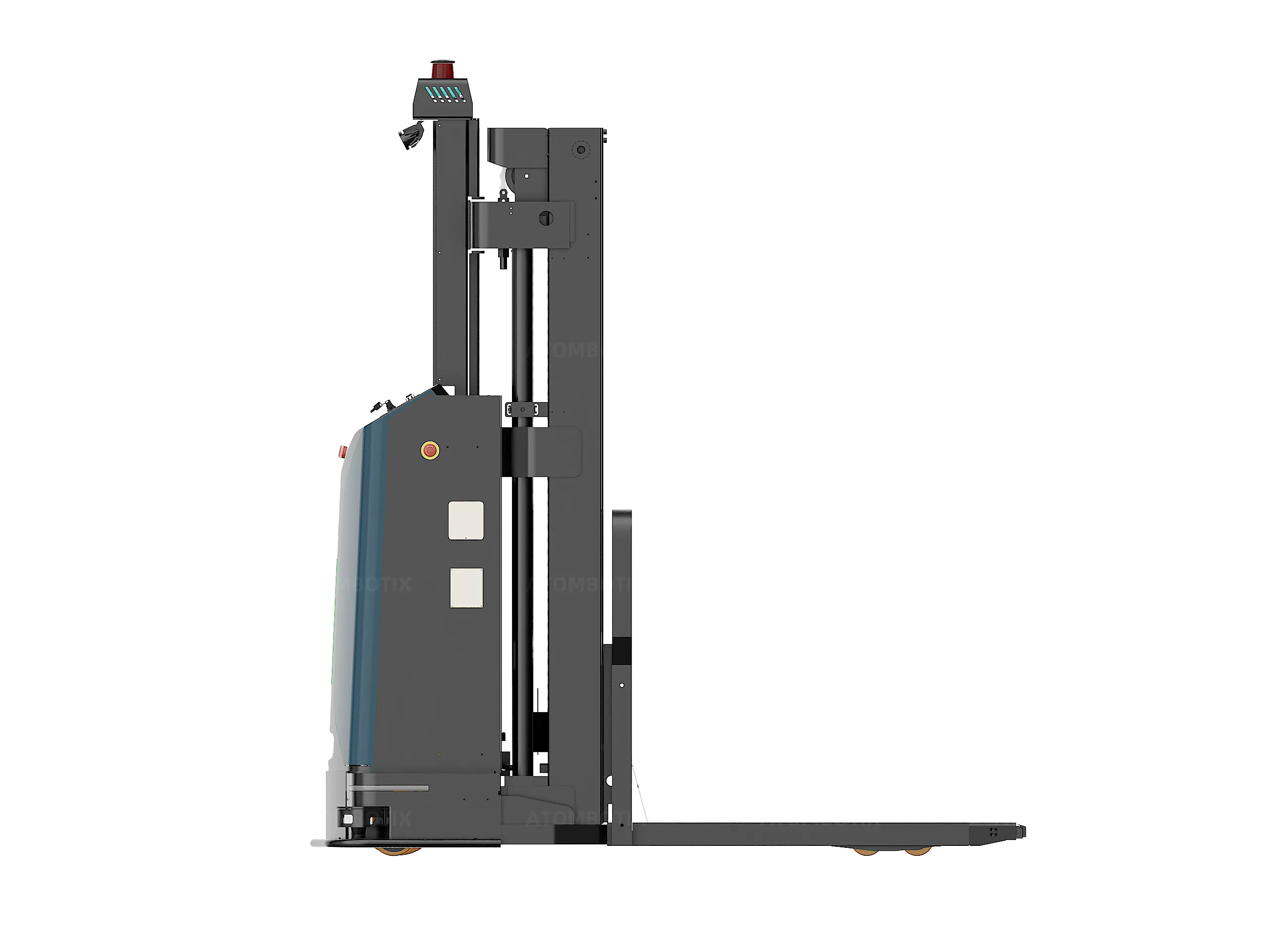

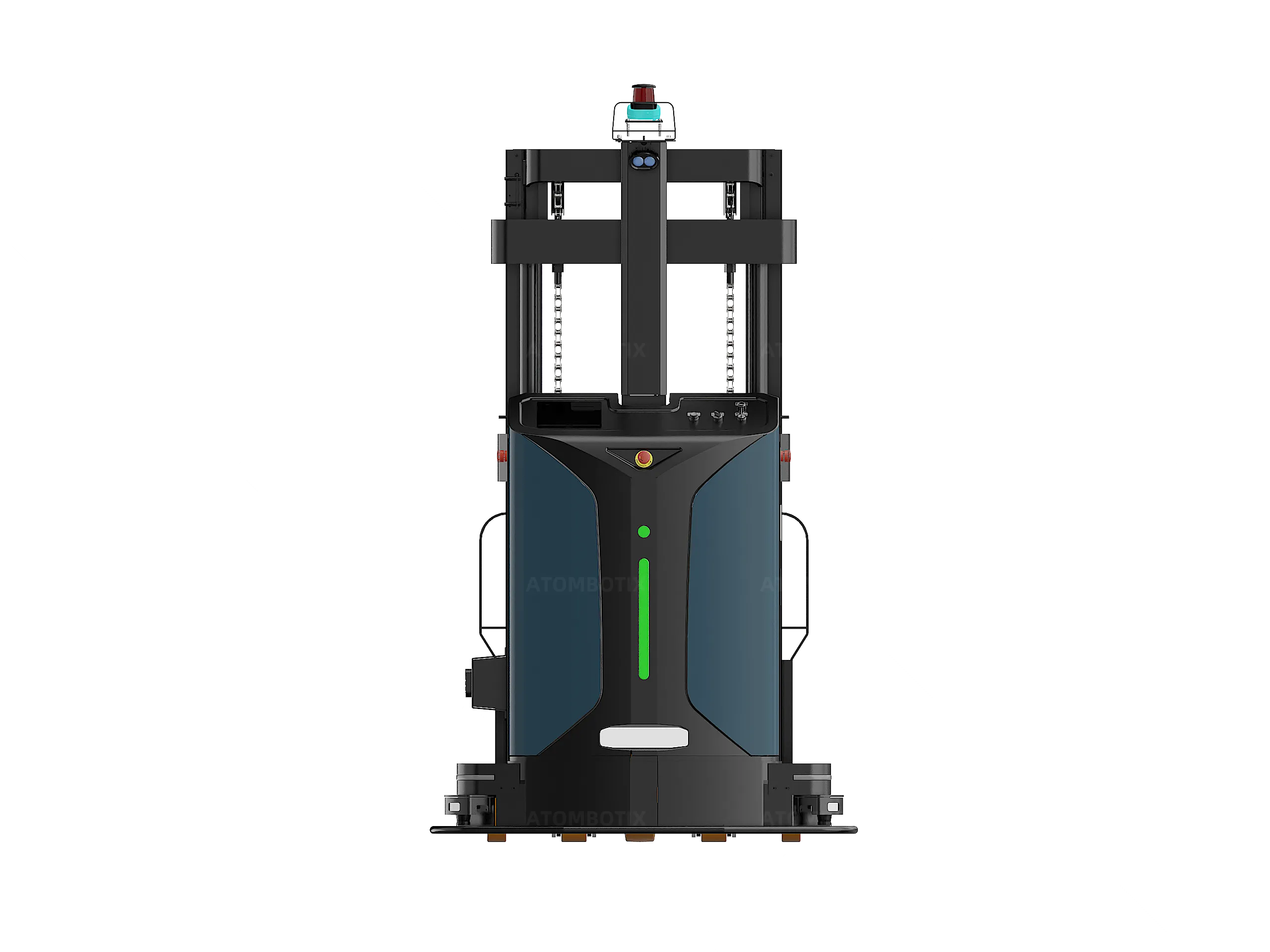

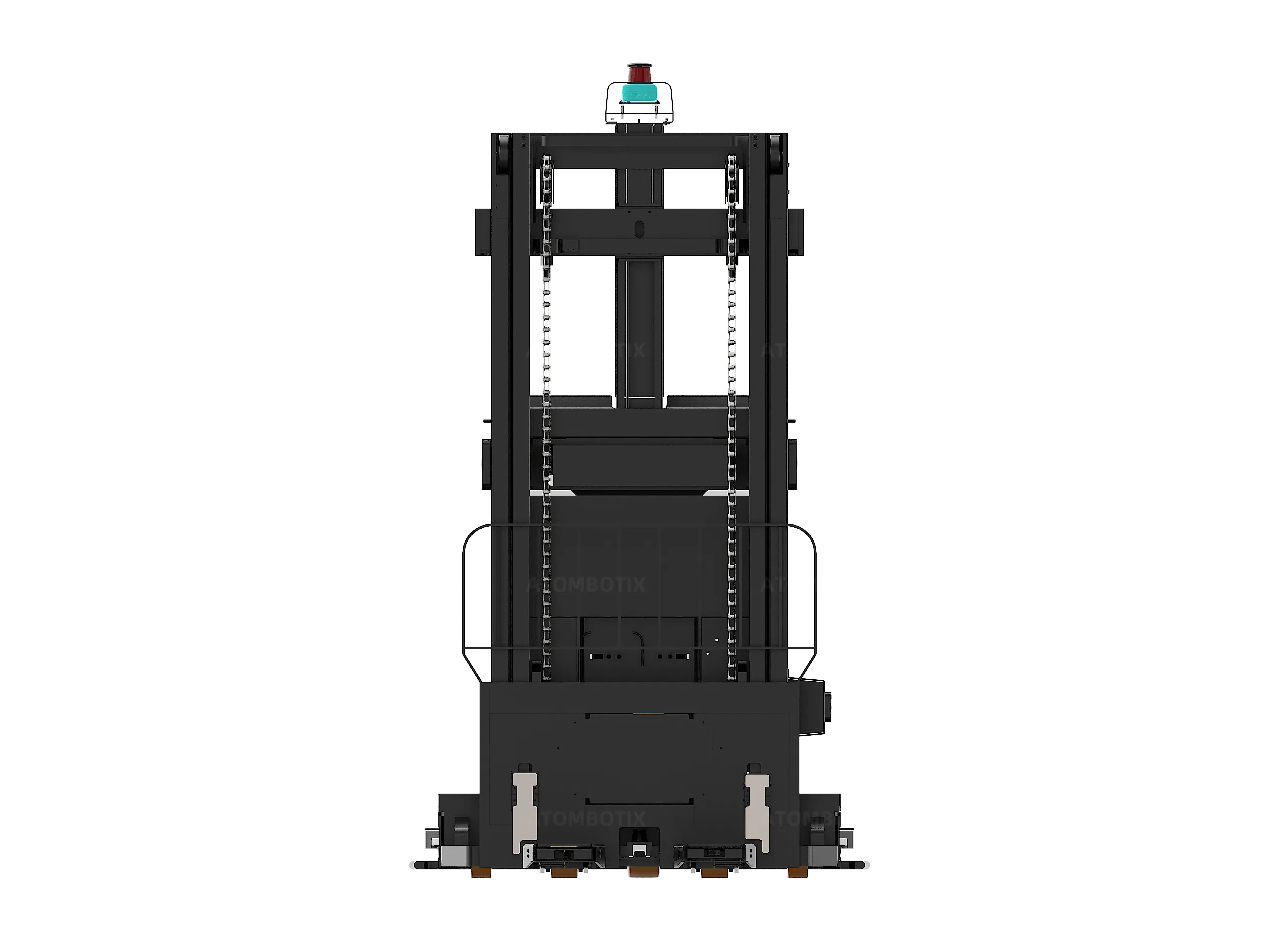

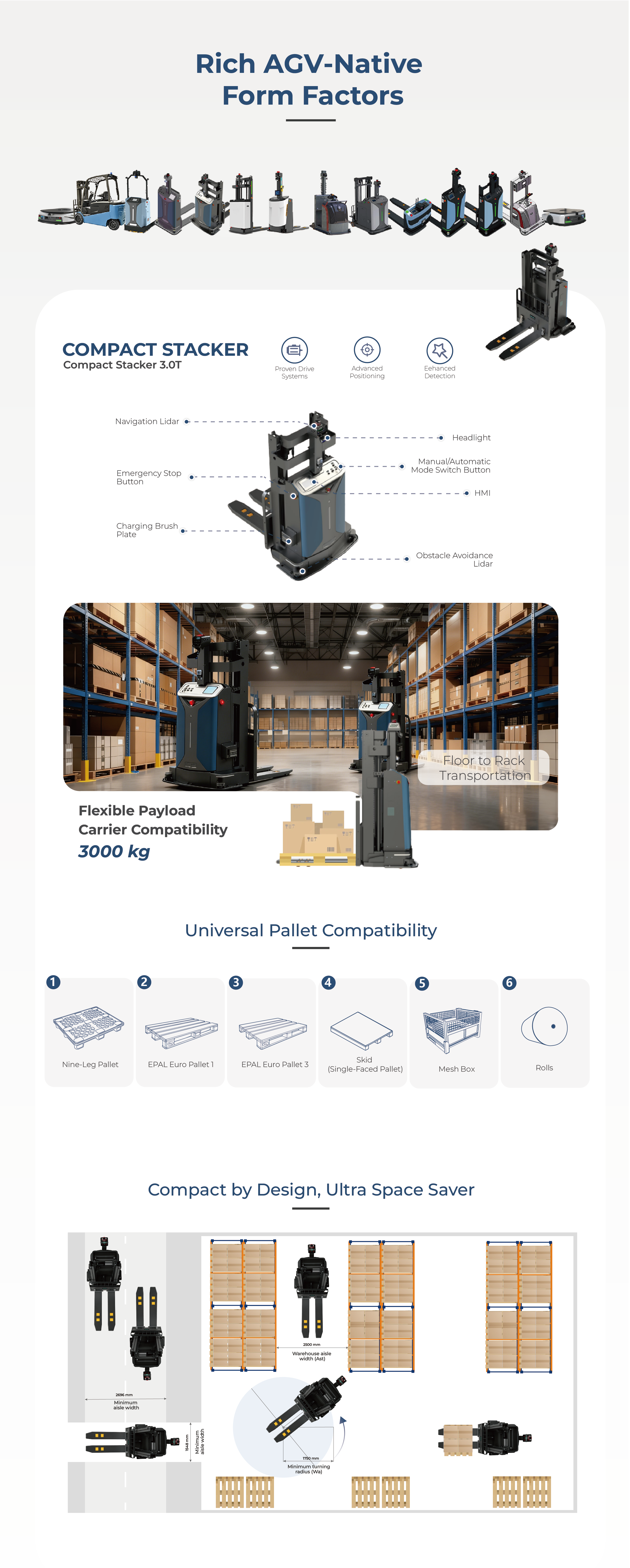

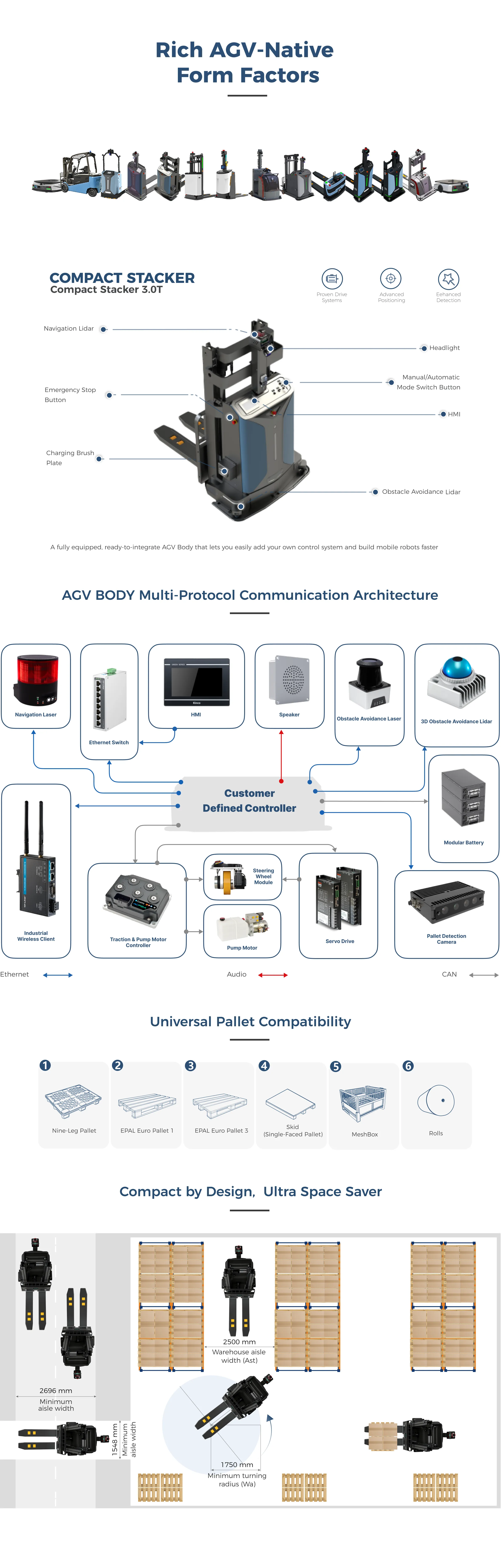

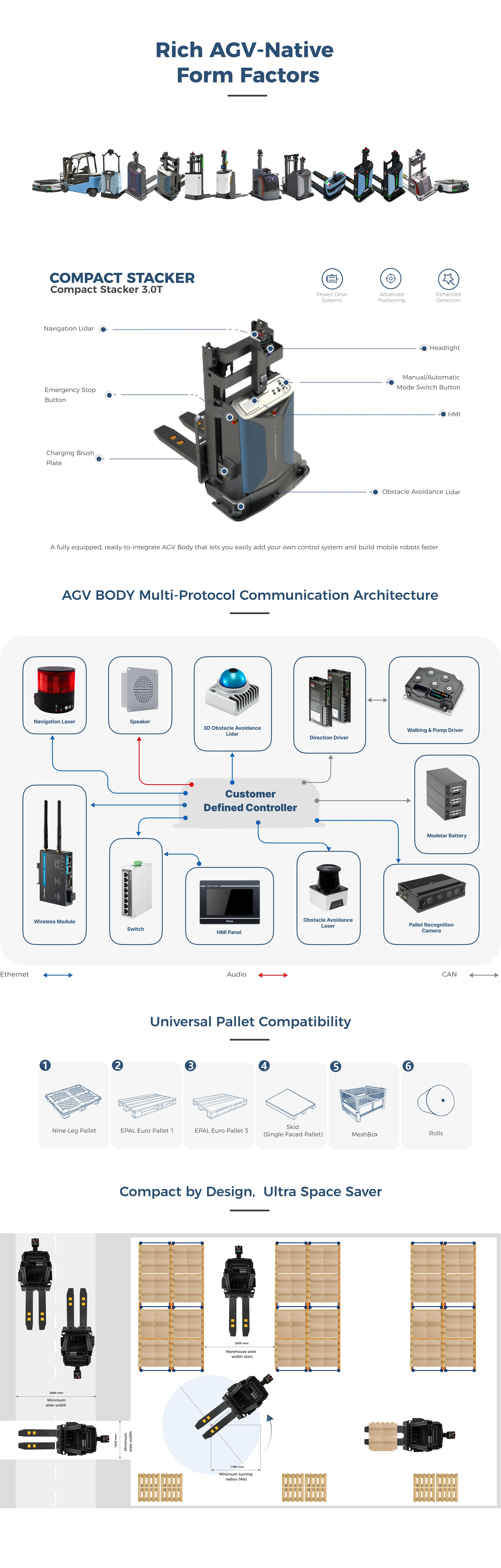

Compact Stacker 3.0T
Rated Load Capacity
Max Lifting Height
Battery
BMS Communication
.png)
.png)

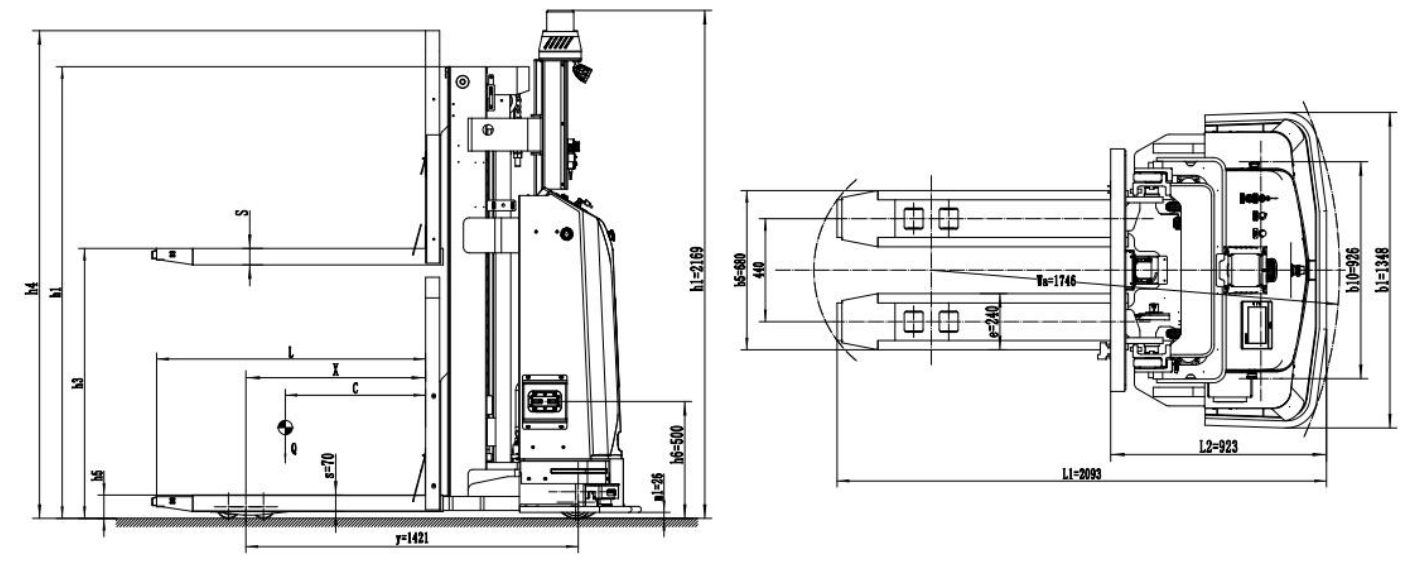

| Model | AB-FLB-CS30 |
| Feature | |
| Power Type | Electric |
| Driving Style | AGV |
| Rated Load Capacity (Q) | 3000 kg |
| Load Center Distance (C) | 600 mm |
| Front Suspension Distance (x) | 768 mm |
| Wheelbase (y) | 1421 mm |
| Weight | |
| Self Weight (Including Battery) | 1860 kg |
| Axle Load (Full Load), Driving Side/Load-Bearing Side | 1778/3082 kg |
| Axle Load (Empty load), Driving Side/Load-Bearing Side | 1395/465 kg |
| Wheel | |
| Tire Type | Polyurethane |
| Tire Size, Drive Wheel | Φ230×75 mm |
| Tire Size, Load-Bearing Wheels | Φ100×80 mm |
| Tire Size, Balance Wheel | Φ140×60 mm |
| Number of Wheels, Drive Side (x=Drive Wheels)/Load-Bearing Side | 1x-2/4 |
| Front Wheel Track , Drive Side (b10) | 440 mm |
| Rear Wheel Track, Load-Bearing Side (b11) | 930 mm |
| Basic Dimensions | |
| Total Height (h1) | 2500 mm |
| Total Width | 1348 mm |
| Total Length (L1) | 2073 mm |
| Vehicle Length (Excluding Fork) (L2) | / |
| Free Lifting Height (h2) | 0 |
| Lifting Height (h3) | 3000 mm |
| Extended Mast Min. Height (h4) | 4030 mm |
| Fork Surface Min. Height (When the Fork is at its Lowest)(h5) | 100 mm |
| Charging Pad Height (h6) | 500 mm |
| Fork Size (l/e/s) | 1150/240/70 mm |
| Fork Outer Width (b5) | 680 mm |
| Min. Ground Clearance (m1) | 25.5 mm |
| Min. Turning Radius (Wa) | 1750 mm |
| Min. Right Angle Stacking Aisle Width | |
| Right Angle Stacking Aisle Width, Pallet 800×1200 (1200 Placed Along The Fork) | 2350+200 mm |
| Right Angle Stacking Aisle Width, Pallet 1000×1000 (1200 Placed Along The Fork) | |
| Right Angle Stacking Aisle Width, Pallet 1000×1200 (1200 Placed Along The Fork) | 2400+200 mm |
| Performances | |
| Driving Speed, Full load/Empty Load | 5/6 km/h |
| Lifting Speed, Full Load/Empty Load | 115/170 mm/s |
| Descent Speed, Full load/Empty load | 160/125 mm/s |
| Climbing Performance, Full Load/Empty Load | 3%/5% |
| Driving Brake Mode | Electromagnetic braking |
| Motion | |
| Drive Motor Power | 2.2 kw |
| Power of Lifting Motor | 3.8 kw |
| Steering Motor Power | 0.6 kw |
| Drive Motor Type | 24 V asynchronous AC motor |
| Steering Motor Type | 48 V DC Servo motor |
| Lifting Mechanism | Hydraulic control |
| Communication Protocol | CAN |
| Battery | |
| Weight of Battery | 100 kg |
| Battery Type | Lithium iron phosphate |
| Battery Voltage/Rated Capacity | 48/210 V/AH |
