Ranger Slim - 3D Lidar

3D Lidar

Ranger Slim

Compact LiDAR sensors designed for obstacle detection and navigation.

Range

4m
Angle Resolution

0.1 °
Detection Angle

120°, 4-line scanning
Obstacle Avoidance Channels

64

consult datasheet

Reliable Power Supply

DC 12-30V

Compact Size

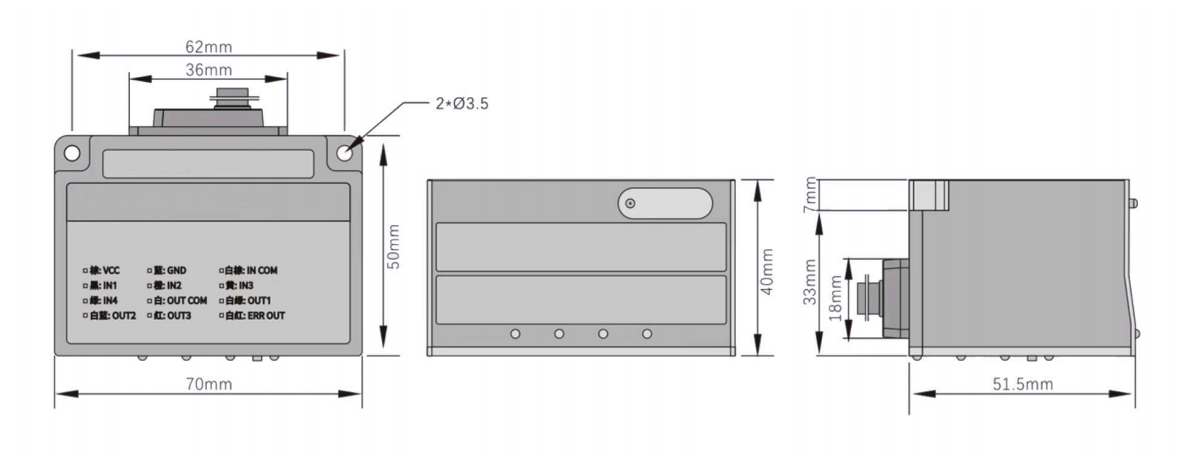

70 × 51.5 × 40 mm

Wide-Angle Scanning

4-line 120°H, 14°V (TOF)

Precision Range Detection

0.1-4m (90% reflectivity), 0.1-1.5m (10% reflectivity)

Simultaneous Monitoring

64 channels

AGV Specific

Designed for Fork-tip Safety and other tight moving parts

Model	Range Slim
Performance Parameters
Detection Distance	0.05 m–1.5 m (reflectivity 10%) 0.05 m–4 m (reflectivity 90%)
Detection Angle	120° (4-line vertical angle of 12 °)
Scan Frequency	10 Hz × 4
Min. Resolution for Obstacle Detection	0.5°
Angle Resolution	0.1°/0.2° (Software Configurable)
Absolute Accuracy	±40 mm
Detect Output Delay	0–500 ms Configurable
Detect Maintain Delay	0–500 ms Configurable
Essential Parameters
Communication	I/O, USB, RS232, RS485, CAN, Ethernet
Light Source Wavelength	905 nm
Pulse Width	5 ns
Raw Data Output	Optional
Status Indicators	Green (power indicator light) Yellow (output signal 1 indicator) Orange (output signal 2 indicator) Red (output signal 3 indicator)
Cable	1.5 m
Number Of Obstacle Avoidance Channels	64
IP Ratings	IP65
Electrical Parameters
Working Voltage	DC 18V – 30V
Rated Power	<1.2 W
Environmental Parameters
Object Reflectivity	2–1000%
Ambient Light	<80000 Lux (resistant to sunlight)
Usage Environment	-10 ℃–50 ℃ (indoor use), <80% RH (no frost, no condensation)
