Platform Style
Platform Lifter 50kg
.png)
.png)
| Model | AB-FLB-PLT5 |
| Feature | |
| Drive Mode | Differential drive of two wheels |
| Dimensions | 678 × 450 × 435 mm |
| Rotation Diameter | 678 mm |
| Self-weight | 70 kg |
| Rated Load | 50 kg |
| Chassis Ground Clearance | 25 mm |
| Lifting Panel Size | 606×405 mm |
| Lifting Height | 400 mm |
| Motion | |
| Rated Operating Speed (Rated Load/No Load) | 3.5 m/s; 4 m/s |
| Acceleration (Rated Load/No Load) | 1.2 m/s²; 2 m/s² |
| Rotation Speed (Full Load/No Load) | 300°/s; 350°/s |
| Battery | |
| Battery Type | Lithium iron phosphate |
| Capacity/Rated Voltage | 10 Ah/48V |
| Charge-Discharge Cycle Times | 1,500 times |
| Rated Working Condition Endurance Time | 4-6 h |
| Charging Time After Complete Discharge | ≤1.5 h |
| Communication Protocol | CAN/RS485 |
| Other Parameters | |
| Human-Computer Interaction Mode | / |
| Navigation Mode | Laser SLAM or 2D code |
| Front Laser Obstacle Avoidance (Quantity/Installation Height) | 1 piece/185 mm |
| Opening Angle | 180° |
| 3D Vision Obstacle Avoidance | / |
| Rear Ultrasonic | / |
| Emergency Stop Buttons | 2 pieces (front and rear each 1) |
| Contact Protection | Piezoelectric edge switch |
| Acoustic-Optic Alarm | Standard |
| Chassis Damping Mode | Floating chassis |
| Climbing Capacity | ≤5%/3° |
| Step Capacity | ≤3 mm |
| Gutter Crossing Capacity | ≤3 mm |
| Signal | Supports dual-band Wi-Fi (2.4 GHz and 5 GHz), with wireless signal strength ≥ -70 dBm |
| Humidity | Relative humidity 10%–90% without condensation |
| Temperature | Working area: -10°C–40°C Charging area: 0°C–40°C |

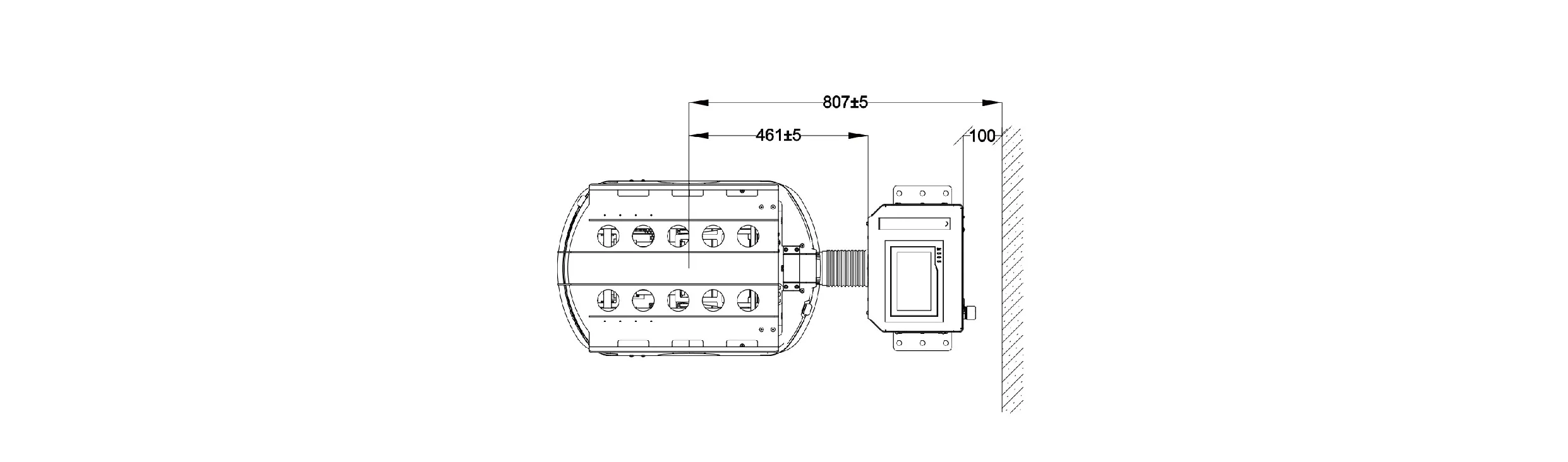

AGV Charging Station Docking Illustration:
