3D Lidar
3D Ranger
3D Ranger
Range
Beams
Coverage
Angular Resolution

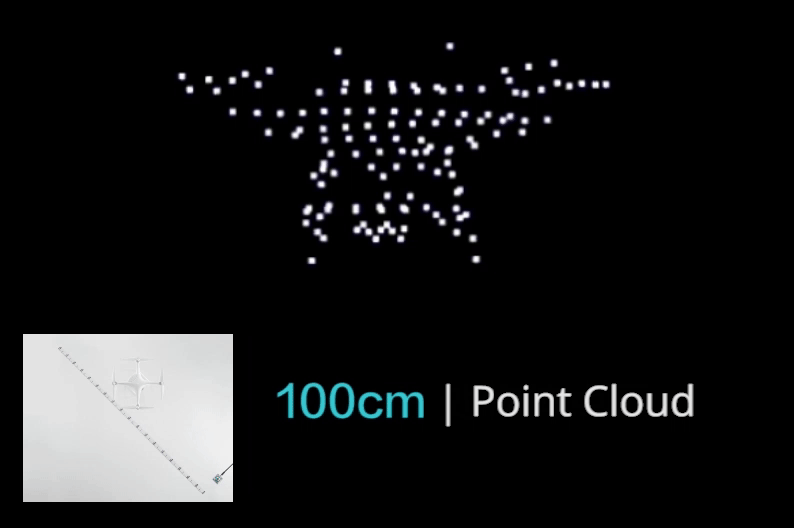

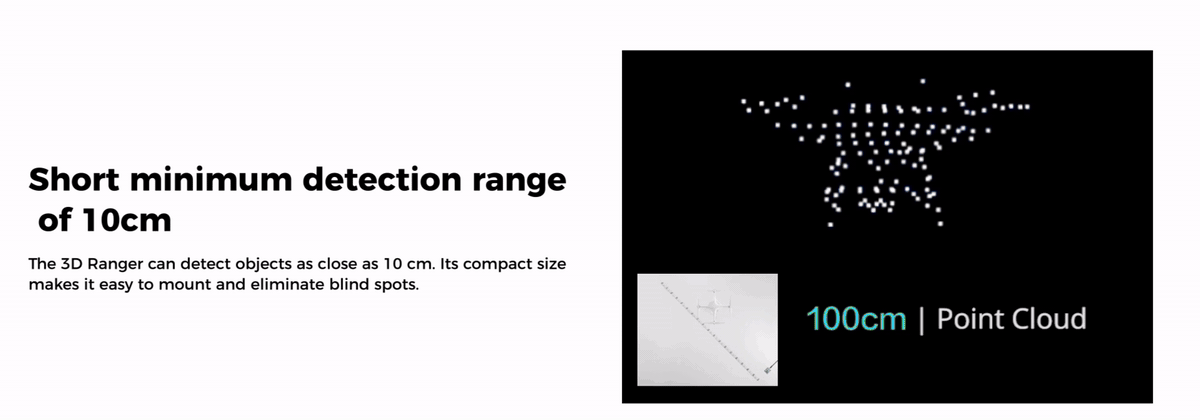

Short minimum detection range of 10cm
The 3D Ranger can detect
objects as close as 10 cm.

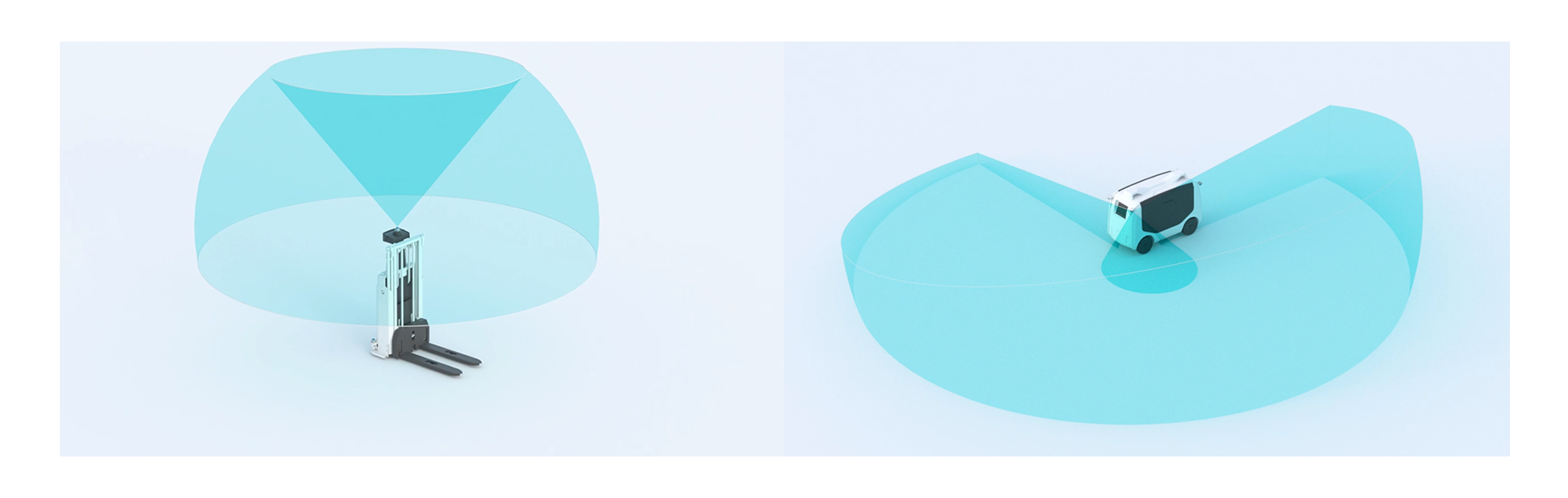

Its compact size makes it easy
to mount and eliminate blind spots.

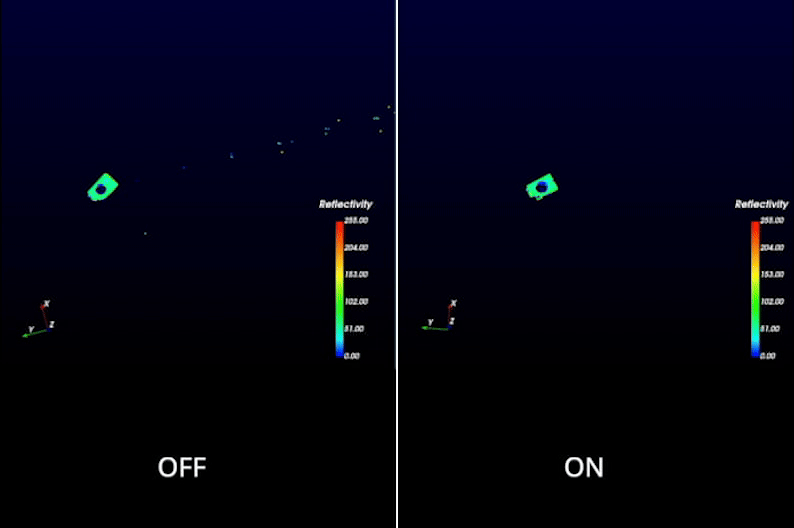

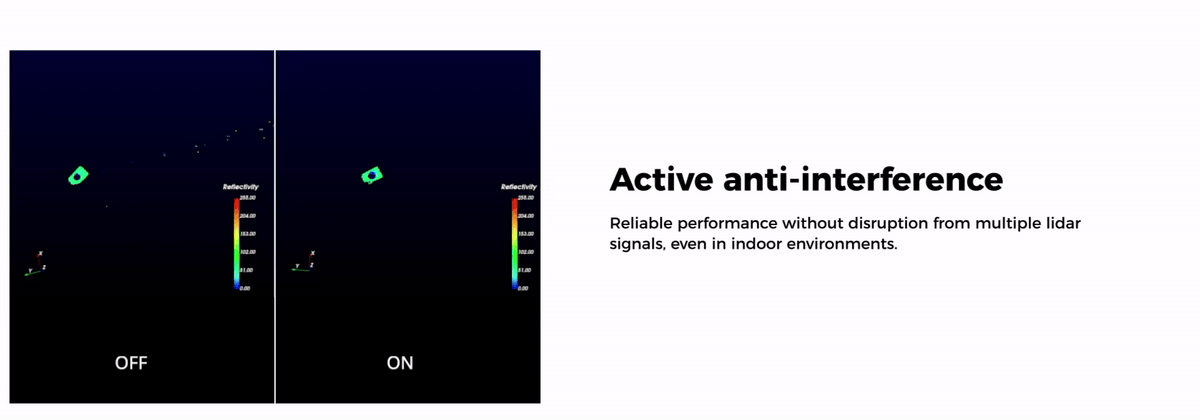

Active anti-interference
Reliable performance
without disruption
from multiple lidar signals,
even in indoor environments.

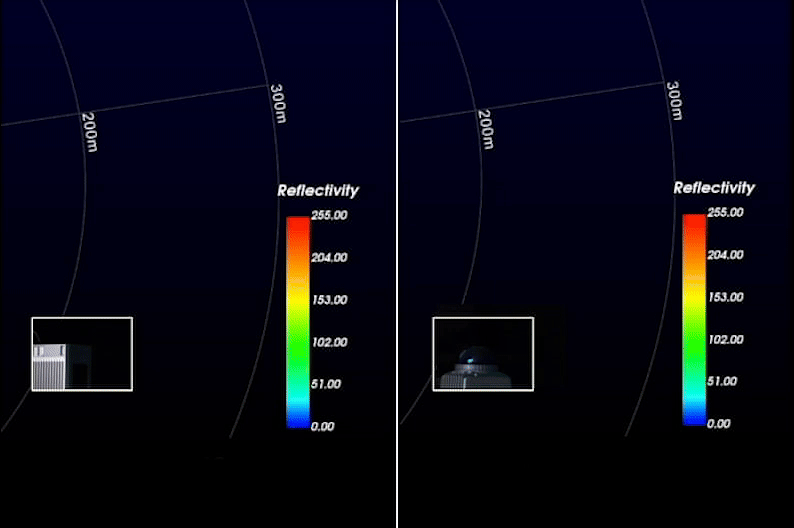

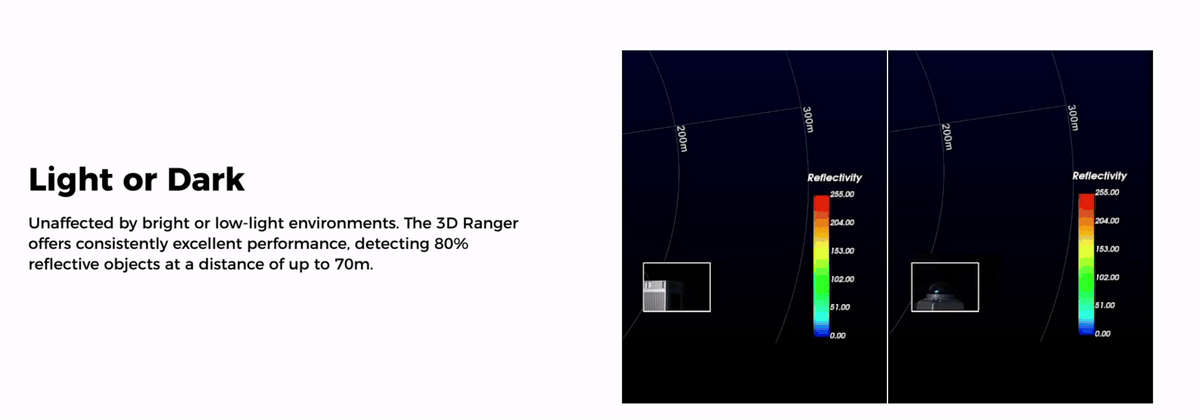

Light or Dark
Unaffected by bright or low-light environments.
The 3D Ranger offers consistently
excellent performance,
detecting 80% reflective objects
at a distance of up to 70m.

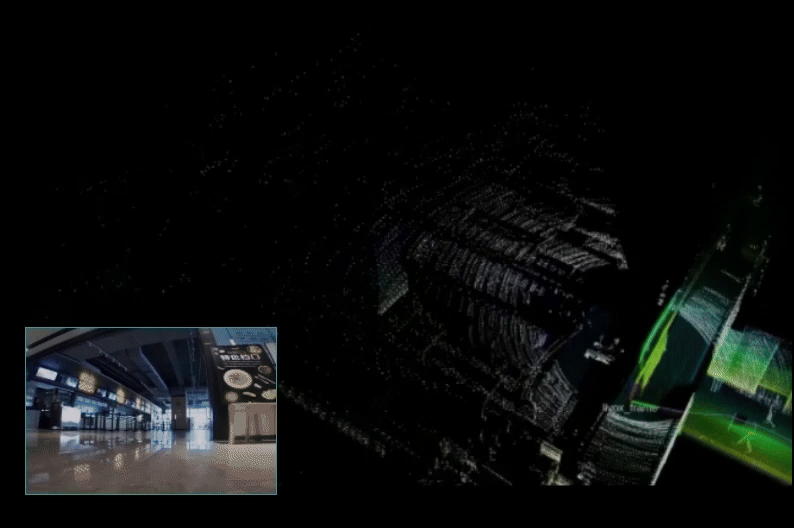

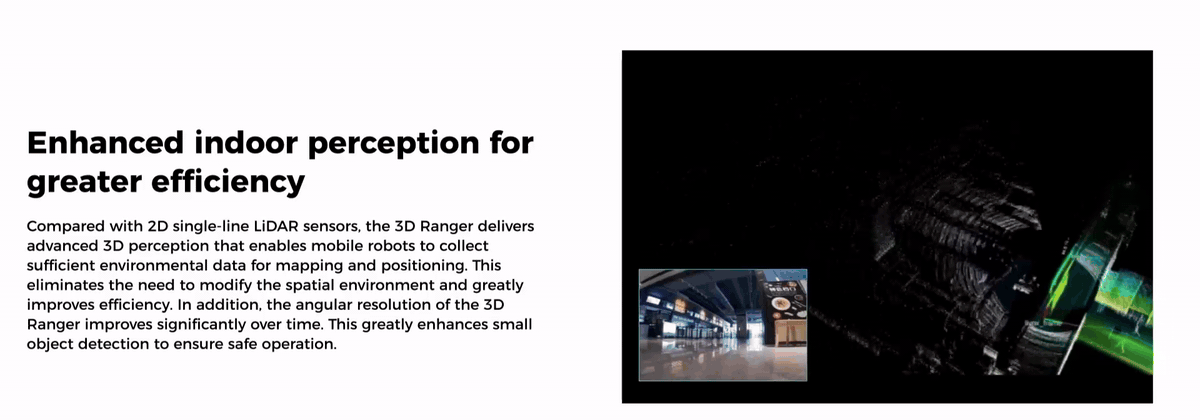

Enhanced indoor perception for greater efficiencyCompared with 2D single-line LiDAR sensors,
the 3D Ranger delivers advanced 3D perception
that enables mobile robots to collect sufficient
environmental data for mapping and positioning.
This eliminates the need to modify the spatial
environment and greatly improves efficiency.
In addition, the angular resolution of the 3D Ranger
improves significantly over time. This greatly enhances
small object detection to ensure safe operation.

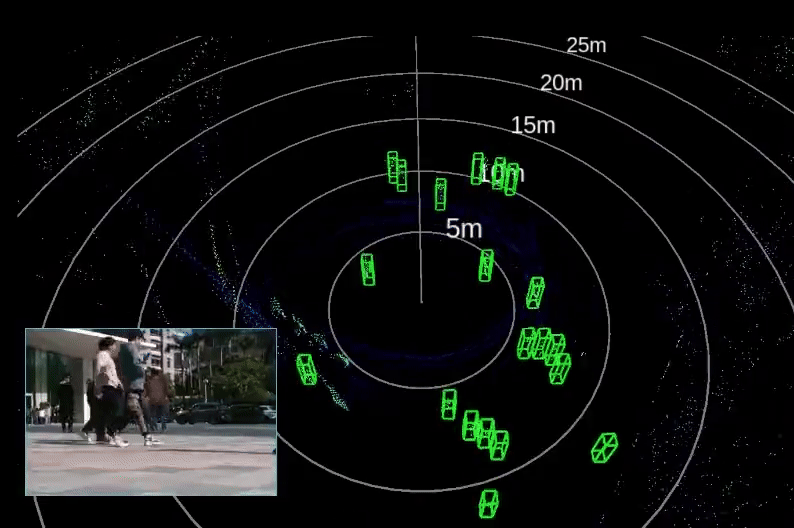

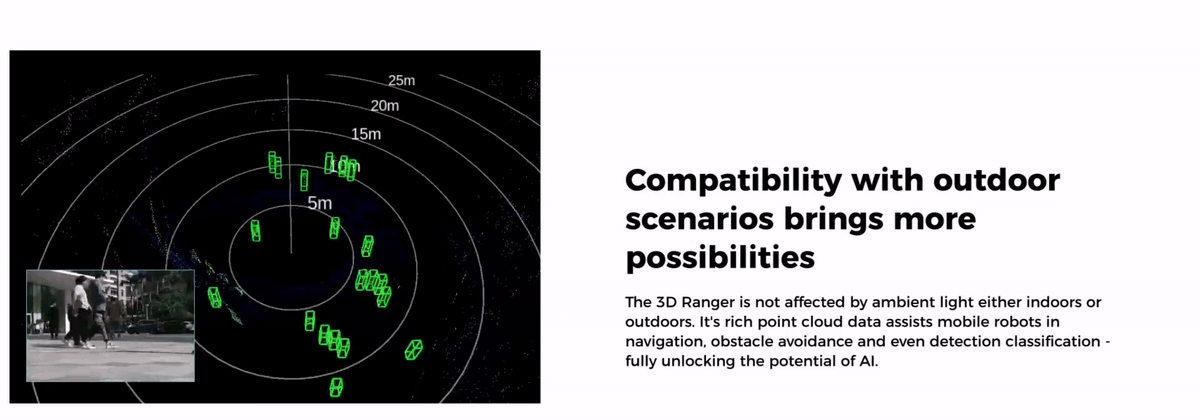

Compatibility with outdoor scenariosThe 3D Ranger is not affected by ambient light
either indoors or outdoors. It's rich point cloud data
assists mobile robots in navigation, obstacle avoidance
and even detection classification - fully unlocking the potential of AI.
| Model | AB-LD-B40-R40-DM12-LX |
| Performance Parameters | |
| Laser Wavelength | 905 nm |
| Detection Distance | 0.1 m – 40 m (10% reflectivity) 0.1 m – 70 m (80% reflectivity) |
| Range Precision(1σ) | ≤ 2 cm (80% reflectivity at a distance of 10m) ≤ 3 cm (80% reflectivity at a distance of 0.2m) |
| FOV | Horizontal: 360° Vertical: -7°–52° |
| Close Proximity Blind Zone | 0.1 m |
| Angular Precision（1σ ） | < 0.15º |
| Point Rate | 200,000 points/s (first return) |
| Frame Rate | 10 Hz (typical) |
| False Alarm Rate (@ 100 klx) | < 0.01% |
| Essential Parameters | |
| Laser Safety | Class 1 (IEC60825-1:2014)(Eye Safety) |
| Data Port | 100 BASE-TX Ethernet |
| Data synchronization | IEEE 1588-2008 (PTPv2), GPS |
| Anti-Interference Function | Available |
| IMU | Built-in IMU Model: ICM40609 |
| IP Ratings | IP67 |
| Electrical Parameters | |
| Power | 6.5 W (average) |
| Power Supply Voltage Range | 9–27 V DC |
| Physical Parameters | |

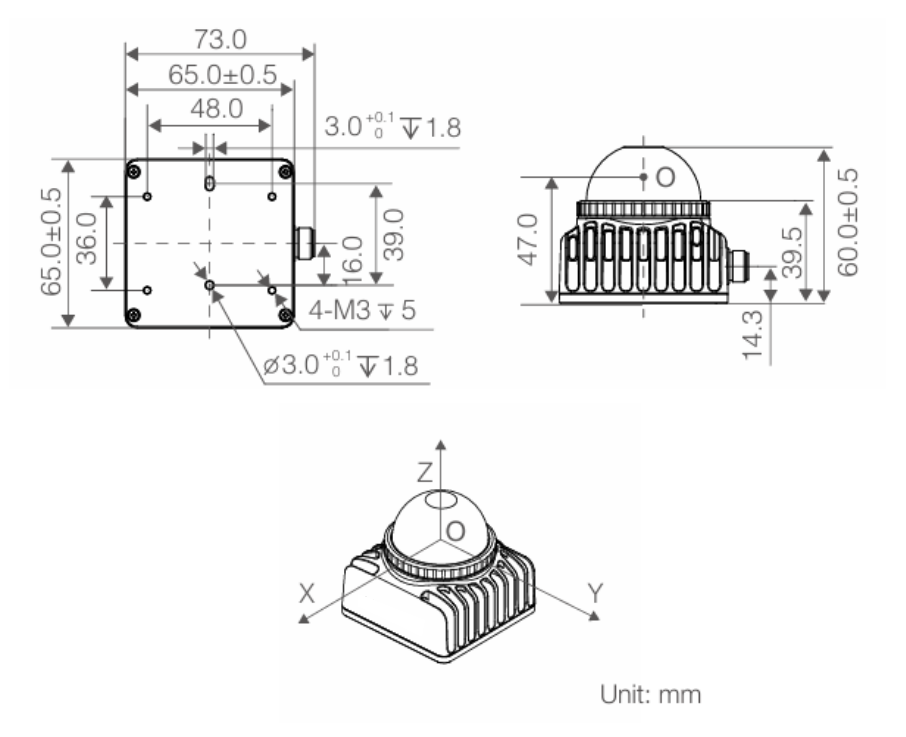

| Dimensions | 65 × 65 × 60 mm |
| Net Weight | 265 g |
| Environmental Parameters | |
| Operating Temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 70℃ |
