AB-MC-IPC-M20-I7 - IPC

Rich Integrated Interfaces

With Built-in and configurable DI/DO, CAN, RS-485/232, Audio, USB2.0/3.0, don't need external modules.

Ultra Powerful Compute

The product houses Intel Core I7 processor, 16G DDR4 RAM, 512G SSD, as well as powerful GPU of Intel Iris Xe Graphics for machine vision application.

Modular Design

Easy customization under same housing, fast scale-up & scale down, supports multiple chipset, multiple interfaces, Network modules, Storage options etc.

Super-Efficient Heat Dissipation

Through thermal simulation analysis of over 10 CPU power consumption scenarios, With high-precision die-cast aluminum molding and Integrated copper-aluminum, it boasts a compact and robust design, ensuring stable and reliable high-performance computing in confined spaces.

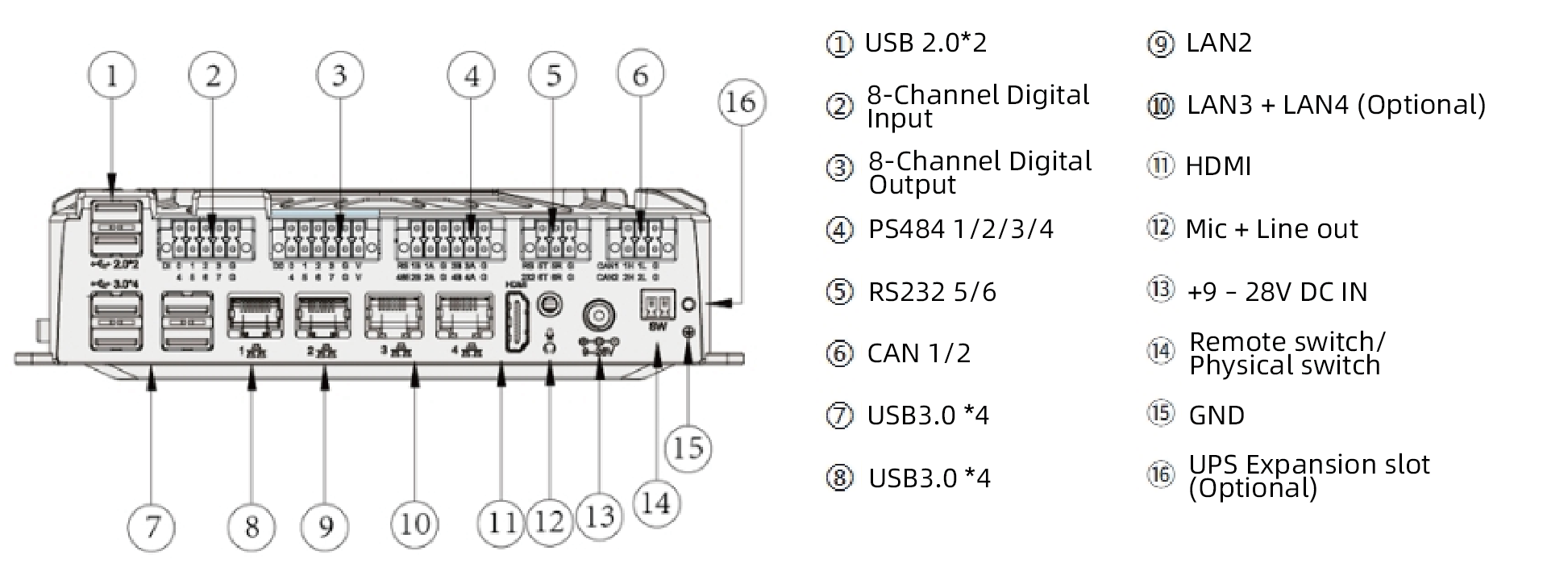

Single-Sided Interface, Modular Installation Design

The product features a streamlined single-sided I/O and flexible mounting options, enabling simpler installation in tight spaces than traditional dual-I/O systems.

Cable-Free Design for Enhanced Reliability

The product ensures maximum stability with its cable-free, direct-connect I/O interface. This robust design eliminates vibration, movement, and poor cable connection issues during operation/transport, minimizing environmental impacts to maintain reliable, high-efficiency production.

Model	AB-MC-IPC-M20-I7
Operating System	Linux Ubuntu (Windows Optional, with separate License）
System Performance	Processor: Intel i7 1195G7
	Memory: DDR4 3200MHz 16GB
	Storage: 512G SSD
Graphic	Intel Iris Xe Graphics, DirectX12.1, OpenGL 4.6, 1 x HDMI,4096*2304@60Hz
Interface	Network： LAN1/2: Intel i211 10/100/1000Mbps LAN1/2/3/4: Intel i210 10/100/1000Mbps Support EtherCAT agreement and internet wake up.(Optional)
	COM: 6 x COM (optional 4 x RS232+2 x RS485; 2 x RS232+4 x RS485)
	USB: 4 x USB3.0, 2 x USB2.0
	Others: 1 x Mic-in, 1 x Line-out, 1 x HDMI
	DI/DO: 8 x DI, 8 x DO
Voltage	+12 – 28V DC(Supports Overvoltage and Reverse polarity Protection)
Power Consumption	Maximum power consumption 65W (i7 1165G7 CPU/8G Memory)
Cooling Method	Fanless, Die-cast aluminum integrated heat dissipation or copper tube heat dissipation (i5 and above)
Installation	Embeded Mounting/DIN Rail Mounting/Wall Mounting
Dimensions	173×52×121 mm (length × width × height)
Environment	Electromagnetic Compatibility：IEC60068-2-64
	Working Environment: -20 – 50℃ (optional SSD), 0 – 40℃ (2.5″ HDD)
	Storage Temperature: -30 – 70℃
	Vibration: with SSD: 3Grms EN60068-2-27:2009 Random vibration 5-500HZ, half an hour per axis
Net Weight	1.2 kg
Backup UPS	Optional (2500mAH Li-ion battery, can work continuously for 30 minutes after power off at 25℃ ambient temperature)
Network Modem	Optional (Wifi/4G LTE/5G)
