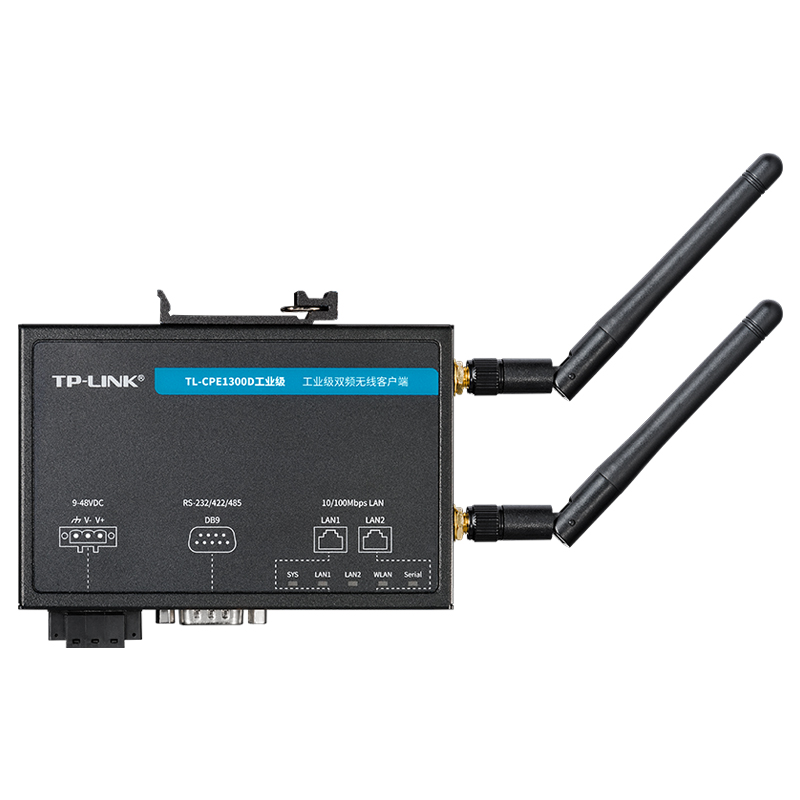

TL-CPE1300D
TL-CPE1300D
Working Temp
Industrial Protection
Supported Brandwith
Industrial Port
.png)
| Model | TL-CPE1300D |
| Structure | IP30 protection level, supports triple anti-coating protection |
| Product size: 116×76×26 mm (excluding antenna) | |
| Steel housing | |
| Standard DIN rail/wall mounting | |
| DIN rail clips and wall mounts are provided | |
| Wireless | 2.4GHz band: 400Mbps |
| 5GHz band: 867Mbps | |
| Working Frequency Band | 2.4GHz:2412MHz – 2472MHz |
| 5GHz:5180MHz – 5825MHz | |
| *Available channels may vary depending on the regulations of the selected country | |
| Port | 2 10/100Mbps RJ45 ports |
| 1 RS-232/422/485 DB9 serial port | |
| 1 pair of DC terminal power supply interface (V+, V-) | |
| 2 RP-SMA antenna interfaces | |
| 1 grounding port | |
| Antenna | 2 external dual-band detachable 3dBi omnidirectional antennas, factory delivery |
| Antenna Coverage Angle | 360° |
| Indicator Lights | 1 SYS system indicator light |
| 2 LAN port indicators | |
| 1 WLAN wireless status indicator | |
| 1 Serial port indicator | |
| All types of lights are displayed on both ends of the product | |
| Button | 1 RESET button |
| Power Supply | 9-48 VDC power supply |
| Support reverse connection protection | |
| Maximum Power Consumption | 13.4W |
| Management | Web page self-management |
| TP-LINK commercial network cloud platform centralized management | |
| Usage Environment | Working temperature: -40℃ – 75℃ |
| Working humidity: 10% – 90%RH non-condensing | |
| Storage temperature: -40℃ – 85℃ | |
| Storage humidity: 5% – 90%RH non-condensing | |
| MTBF | Time: 2,192,553 hours |
| Standard: Telcordia SR-332 | |
| Certification | CE,SRRC |
| Software Specifications | |
| Wireless Capabilities | Working mode: Client, Client-Router (access to wireless network) |
| Quick Setup Wizard: Support | |
| Enhanced roaming: Support | |
| Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK | |
| Transmit power setting: Support 1dBm linear adjustment | |
| Serial port function: Support TCP Server, TCP Client, UDP mode | |
| Hotspot function: Support | |
| Wireless Redundancy: Support | |
| System Management | Equipment management: Full Chinese WEB management |
| System log: Support | |
| Restore factory settings: Support | |
| Backup configuration: Support | |
| Import configuration: Support | |
| Software upgrade: Support | |
| Ping watchdog: Support | |
| Overseas channel adaptation: Support | |
| Client-Router Network | DHCP server: Support |
| Static address allocation: Support | |
| NAT: Support | |
| Static routing: Support | |
