Audio
AB-AD103-20W
| Parameter | Condition | Value | Unit |
| Operating Voltage | DC power supply | 9–26 | V |
| Output Power | RL = 4Ω, d = 10% | 20 | W |
| Frequency Response Range | 210–16K | Hz | |
| Signal-to-noise Ratio | 90 | dB | |
| Volume Level | Indoors | 100–150 | dB |
| Operating Ambient Temperature | Indoors | -25–55 | ℃ |
| Working Environment Humidity | Indoors | 20–80 | % |

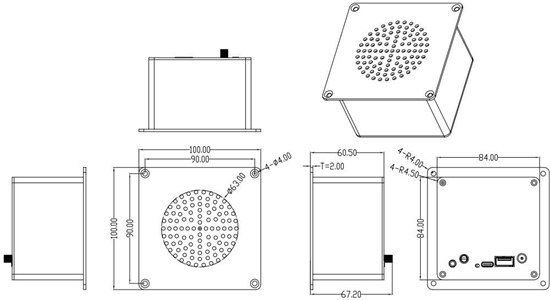

| Dimensions | 100 × 100 × 60.5 | mm | |
| AUX 3.5mm male-to-male Audio Cable (optional) | AUX version: audio input | 1500 | mm |
| USB 2.0 male-to-male Audio Cable (optional) | USB version: audio input | 1500 | mm |
| Type-C male-to-male Audio Cable (optional) | USB version: audio input | 1500 | mm |
