Pallet Truck
MONO FORK PALLET TRUCK 300kg
| Model | AB-FLB-PT03 |
| Feature | |
| Power Type | Electric |
| Driving Style | AGV |
| Rated Load Capacity (Q) | 300 kg |
| Load Center Distance (C) | 345 mm |
| Front Suspension Distance (x) | 490mm |
| Weight | |
| Self Weight (Including Battery) | 200 kg |
| Wheel | |
| Tire Type | Polyurethane |
| Tire Size, Drive Wheel | 180x45 mm |

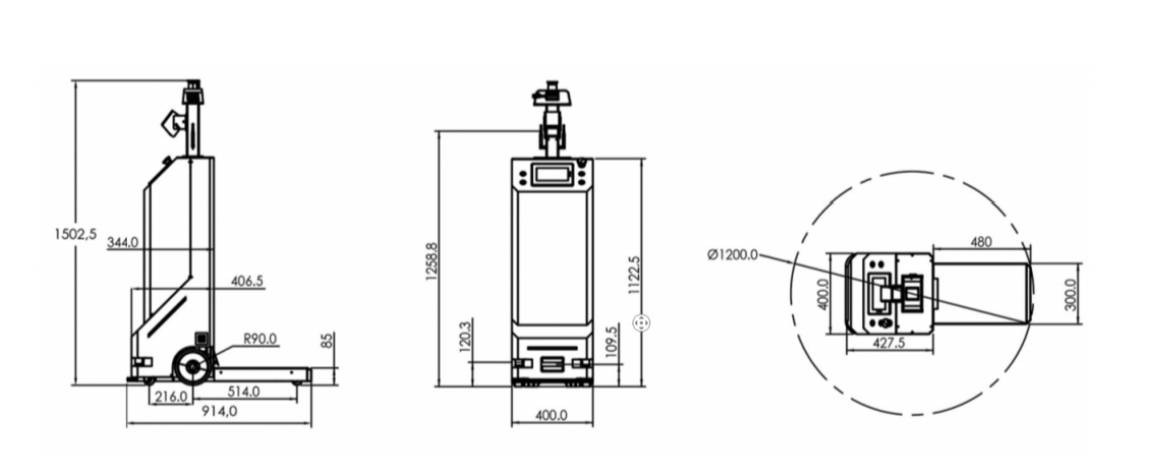

| Basic Dimensions | |
| Free Lifting Height (h2) | / |
| Lifting Height (h3) | 70/90 mm |
| Extended Mast Max. Height (h4) | / |
| Fork Surface Min. Height (When The Fork Is at Its Lowest)(h5) | 80±5 mm |
| Min. Ground Clearance (m1) | 20 mm |
| Min. Turning Radius (Wa) | 600 mm |
| Min. Right Angle Stacking Aisle Width | 600 mm |
| Performance | |
| Driving Speed, Full load/Empty Load | 2.88/5.0 km/h |
| Lifting Speed, Full Load/Empty Load | 16/16 mm/s |
| Climbing Performance, Full Load/Empty Load | ≤3/5/10 °/mm/mm |
| Driving Brake Mode | Motor reverse braking |
| Battery | |
| Battery Type | Nickel Cobalt Manganese |
| Battery Voltage/Rated Capacity | 48 V/35 Ah |
| Charging Time | ≤1.5h |
