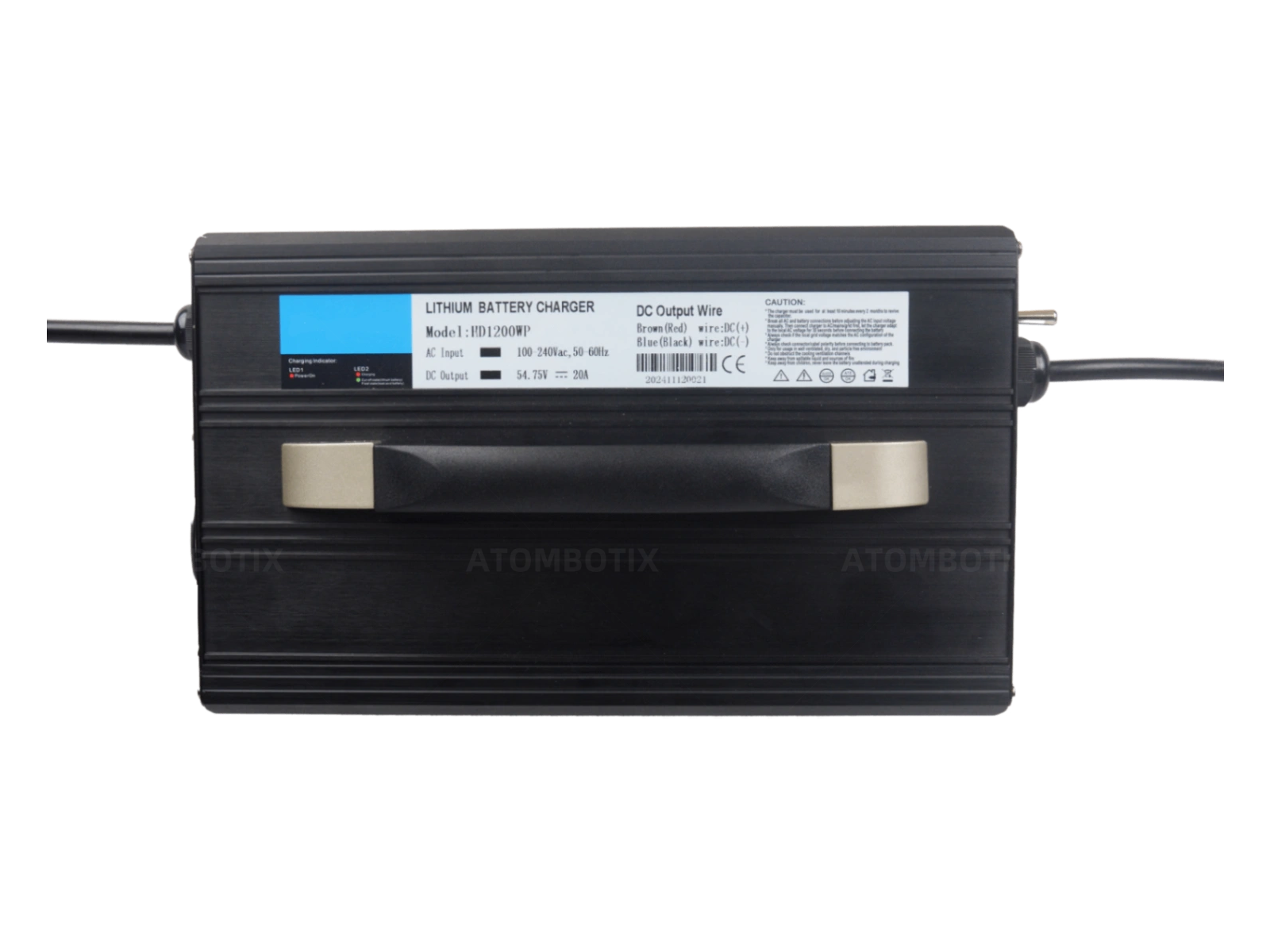

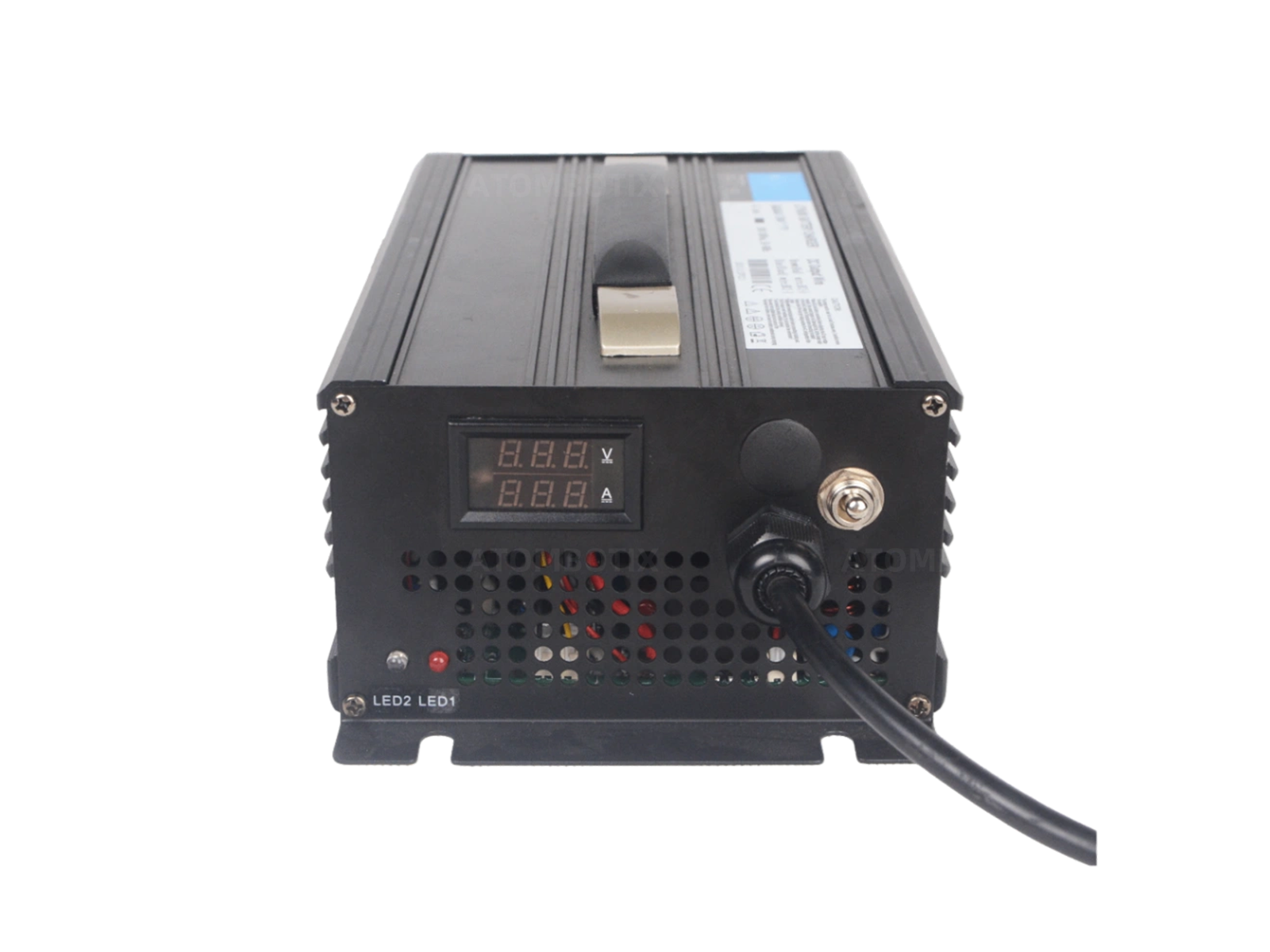

Manual Charger-1200W
Manual Charger-1200W
Rated Input Voltage
Rated Output Power
Rated Output Current
Communication Method
.png)
| Model | AB- HD1200 |
| Electrical Parameters | |
| Rated Input Voltage | 100-240VAC |
| Rated Output Power | 1200 W |
| Rated Output Current | 20A |
| Output Voltage | 54.6V 54.8V 58.4V 58.8V |
| Adjustable Current Range | 0 - 20A |
| First Stage of Charging Constant Current | ≤58.8V20A |
| Second Stage of Charging Constant Voltage | 58.8V 20A |
| The Third Stage of Charging Transition Current | 8A |
| Cut-off Current | 3A |

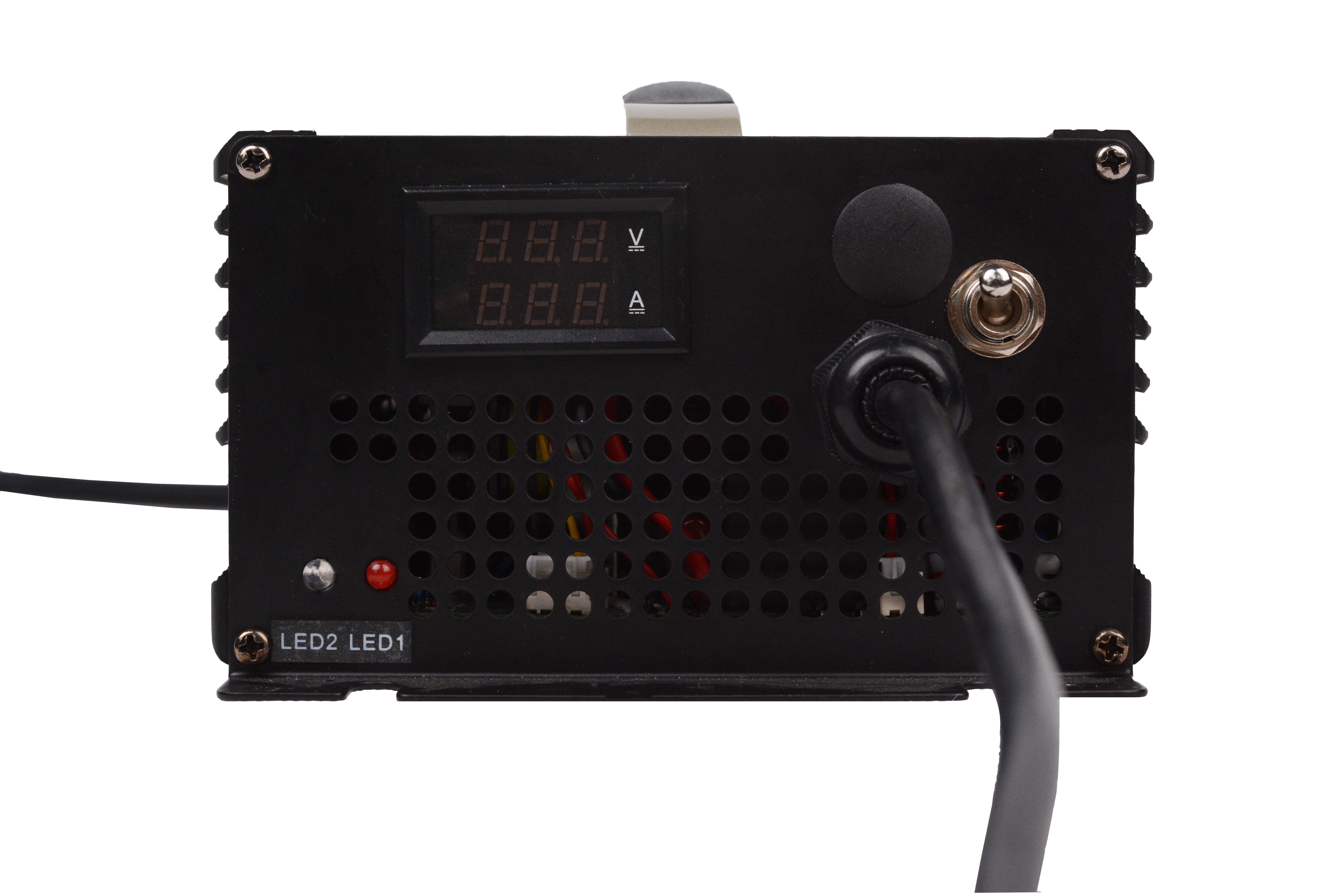

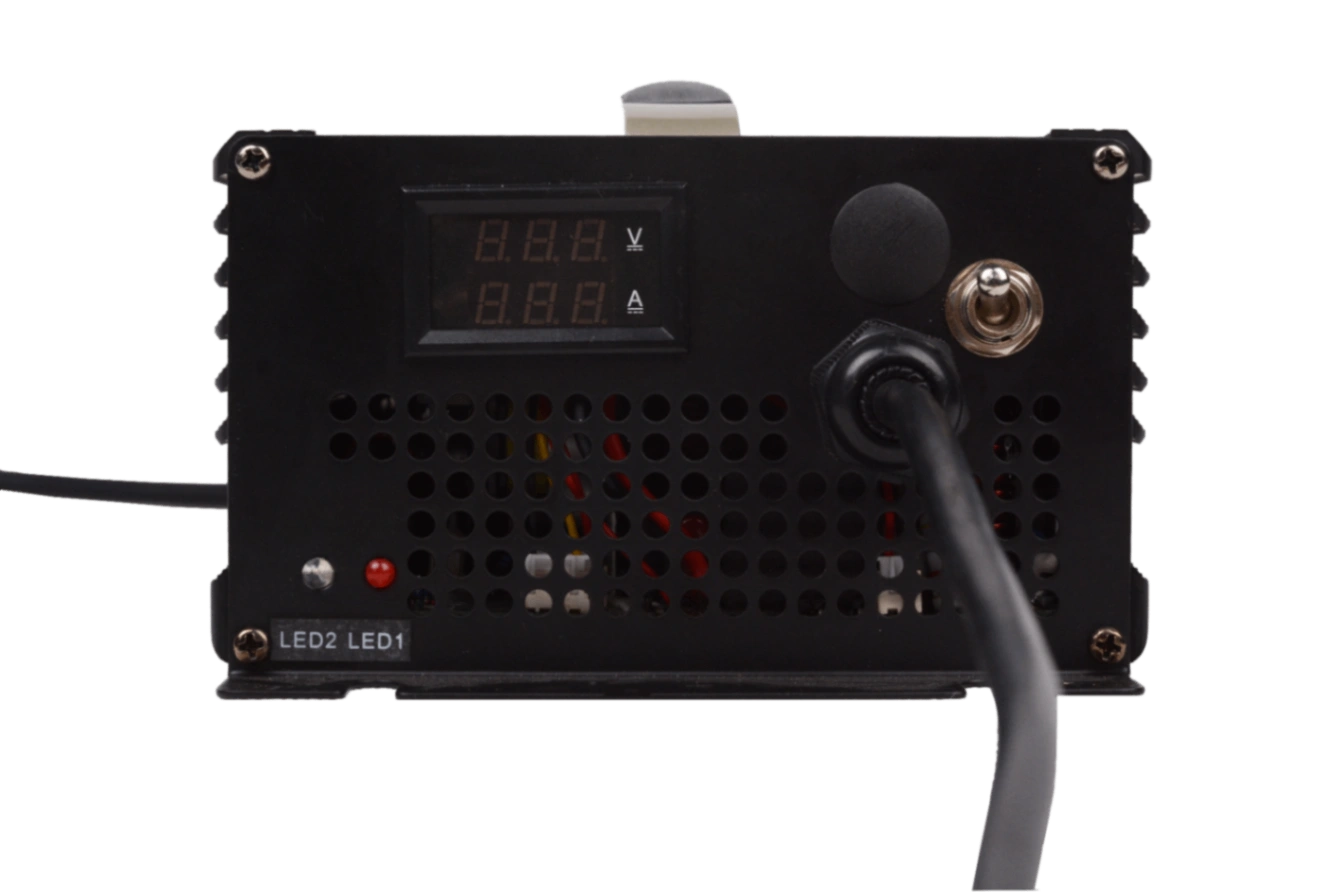

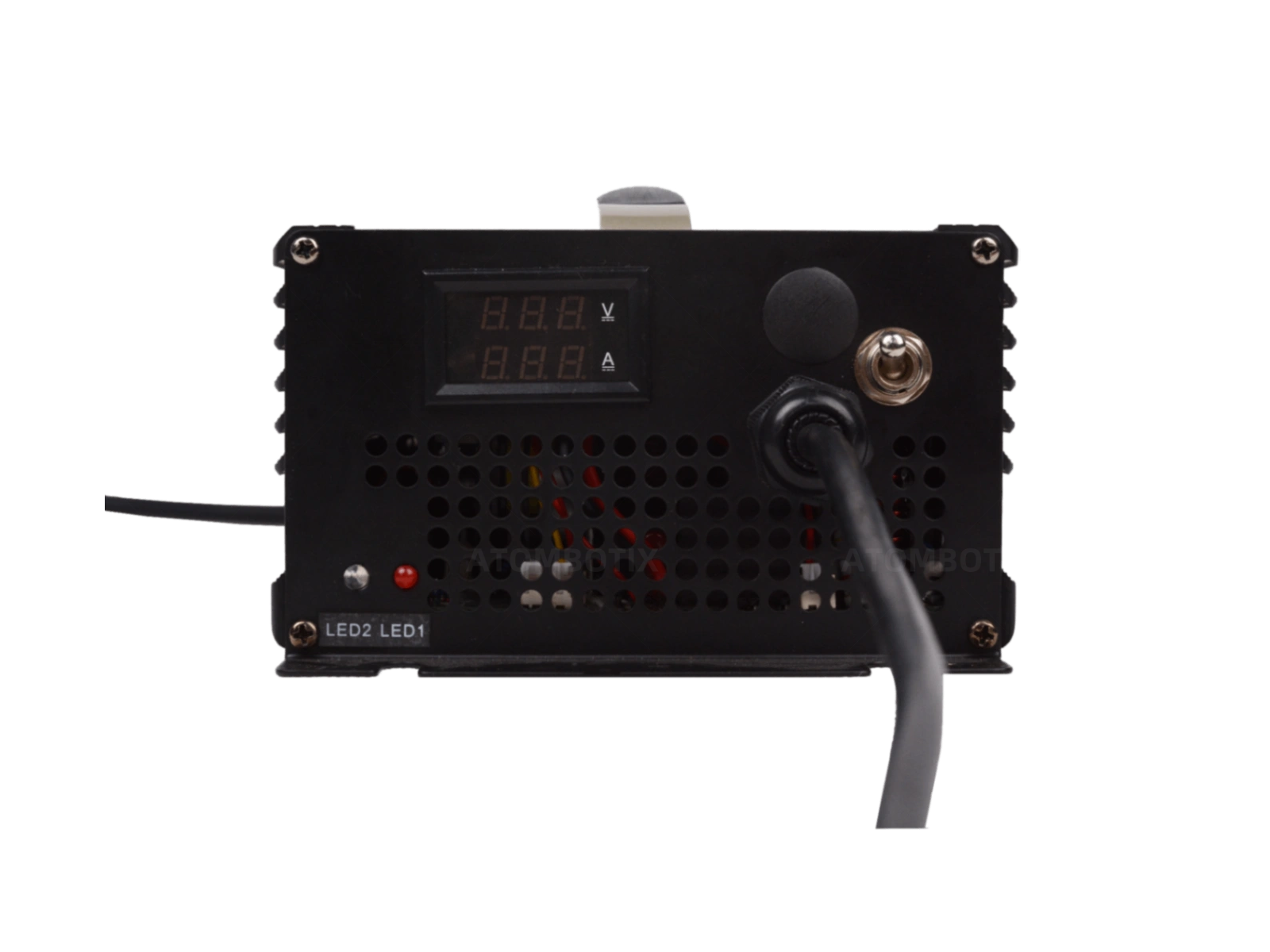

| Charging Status Indicator | 1 Power on LED1: Red LED2: Green 2 Charging LED1: Red LED2: Red 3 Fully charged LED1:Red LED2:Green |
| Charging Voltage Display | Support |
| Charging Current Display | Support |
| Communication Method | CAN |
| Input Cord Length AC | 1.5 m |
| Output Cord Length DC | 1.0m, other length customizable |
| Outside Casing Material | Aluminum |
| MTBF | 15000h |

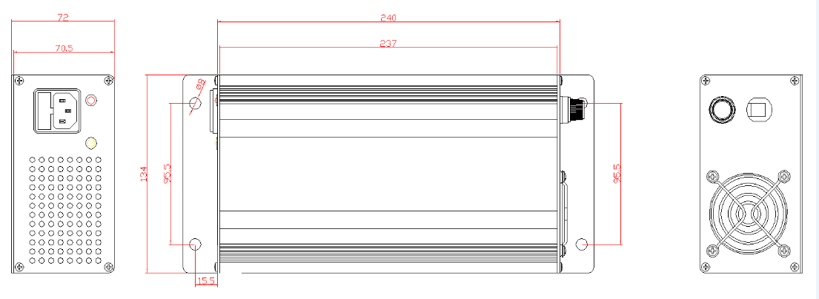

| Dimensions | 303 (L)×158 (W)×90(H) mm |
| Net Weight | 4.3 kg |
| IP Ratings | IP20 |
| Protection | Short-circuit protection, overcurrent protection, overvoltage protection, reverse connection protection, and current backflow protection |
| Environmental Parameters | |
| Working Environment | Indoor |
| Working Temperature | -20℃ – 70℃ |
| Storage | Temperature -40℃ – 70℃, Humidity 0 - 95% |
