QR Navigator - Camera

QR Navigator

consult datasheet

Product Features

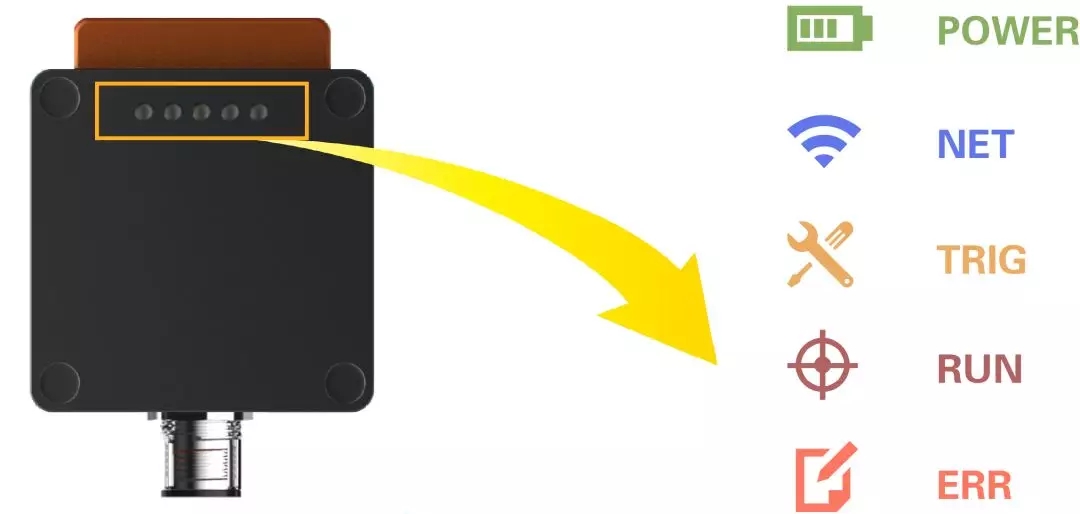

1.Five indicator lights for debugging and function display

2.Compact size, less than half the size of a smartphone

Model	AB-CM-2D-QR-AGV
Performance Parameters
Focal Length	3.37 mm
Work Distance	100 mm
FOV	110 mm × 93 mm
Max. Reading Speed	125 codes per second
Max. Operating Speed	3 m/s
Focusing Method	Fixed type
Light Source	White LED
Depth of Field	±20 mm
Angular Accuracy	0.1°
Displacement Accuracy	0.1 mm
Essential Parameters
Max. Frame Rate	120 fps
Shutter Mode	Global
Pixel	5.4 μm × 5.4 μm
Black And White/Color	Mono
Lens Interface	M12
Trigger Mode	Single frame trigger/software trigger/free running
Software Kit	SVStudio
Certifications	CE, FCC, KC
Function	DM-12&DM-14, DM4x4
Connector	1 industrial grade M12 connector, including Ethernet and GPIO interfaces
Network Interface	100Mbps Ethernet
Communication	RS485, Ethernet, I/O
LED Indicator Light	Power supply, network, trigger, status
Packaging Dimensions	60 mm × 60 mm × 43 mm (excluding interface height)
Packaging Box Size	164 mm × 122 mm × 91 mm
Net Weight	<225 g
Gross Weight	<350 g
IP Ratings	IP65
Casing Material	Aluminum alloy
Electrical Parameters
Working Voltage	DC 24V ± 10%
Rated Power	Disable illumination: <3.5 W @ 24V DC Enable illumination: <7.5 W @ 24V DC
Environmental Parameters
Operation Temperature	-20℃ – +50℃
Working Environment	20% to 95%, no condensation
Storage Temperature	-30℃ – +80℃
