Platform Lifter 600kg
Platform Lifter 600kg
Rated Load Capacity
Max Lifting Height
Battery
BMS Communication
.png)
.png)
| Model | AB-FLB-PL06 |
| Feature | |
| Drive Mode | Differential drive of two wheels |

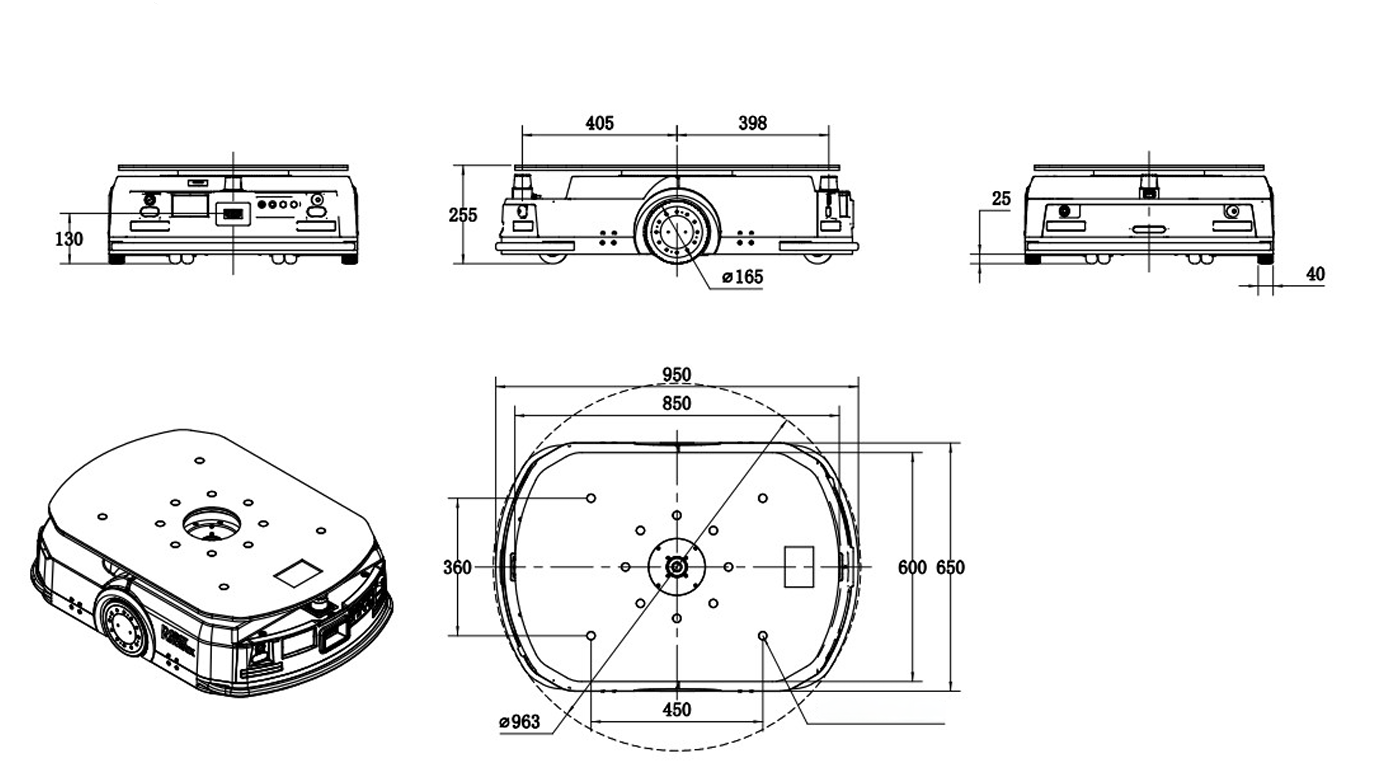

| Dimensions | 950 × 650 × 250 mm |
| Rotation Diameter | 963 mm |
| Self-weight | 130 kg |
| Rated Load | 600 kg |
| Chassis Ground Clearance | 25 mm |
| Lifting Panel Size | 850×600 mm |
| Lifting Drive | Electric |
| Lifting Height | 60 mm |
| Performances | |
| Rated Operating Speed (Rated Load/No Load) | 1.5 m/s; 1.9 m/s |
| Acceleration (Rated Load/No Load) | 0.3 m/s²; 0.6 m/s² |
| Rotation Speed (Full Load/No Load) | 100°/s; 200°/s |
| Battery | |
| Battery Type | Lithium iron phosphate |
| Capacity/Rated Voltage | 24 Ah/48V |
| Charge-Discharge Cycle Times | 1,500 times |
| Rated Working Condition Endurance Time | 8 h |
| Charging Time After Complete Discharge | ≤1.5 h |
| Other Parameters | |
| Human-Computer Interaction Mode | Touch screen |
| Navigation Mode | Laser SLAM or 2D code |
| Front Laser Obstacle Avoidance (Quantity/Installation Height) | 1 piece/201.5 mm |
| Opening Angle | 250° |
| 3D Vision Obstacle Avoidance | Optional |
| Rear Ultrasonic | Optional |
| Emergency Stop Buttons | 2 pieces (front and rear each 1) |
| Contact Protection | Piezoelectric edge switch |
| Acoustic-Optic Alarm | Standard |
| Chassis Damping Mode | Two-stage floating chassis |
| Climbing Capacity | ≤5%/2.8° |
| Step Capacity | ≤5 mm |
| Gutter Crossing Capacity | ≤30 mm |
| Signal | Supports dual-band Wi-Fi (2.4 GHz and 5 GHz), with wireless signal strength ≥ -70 dBm. |
| Humidity | Relative humidity 10%–90% without condensation |
| Temperature | Working area: -10°C – 45°C Charging area: 0°C – 45°C |
