Stacker Truck

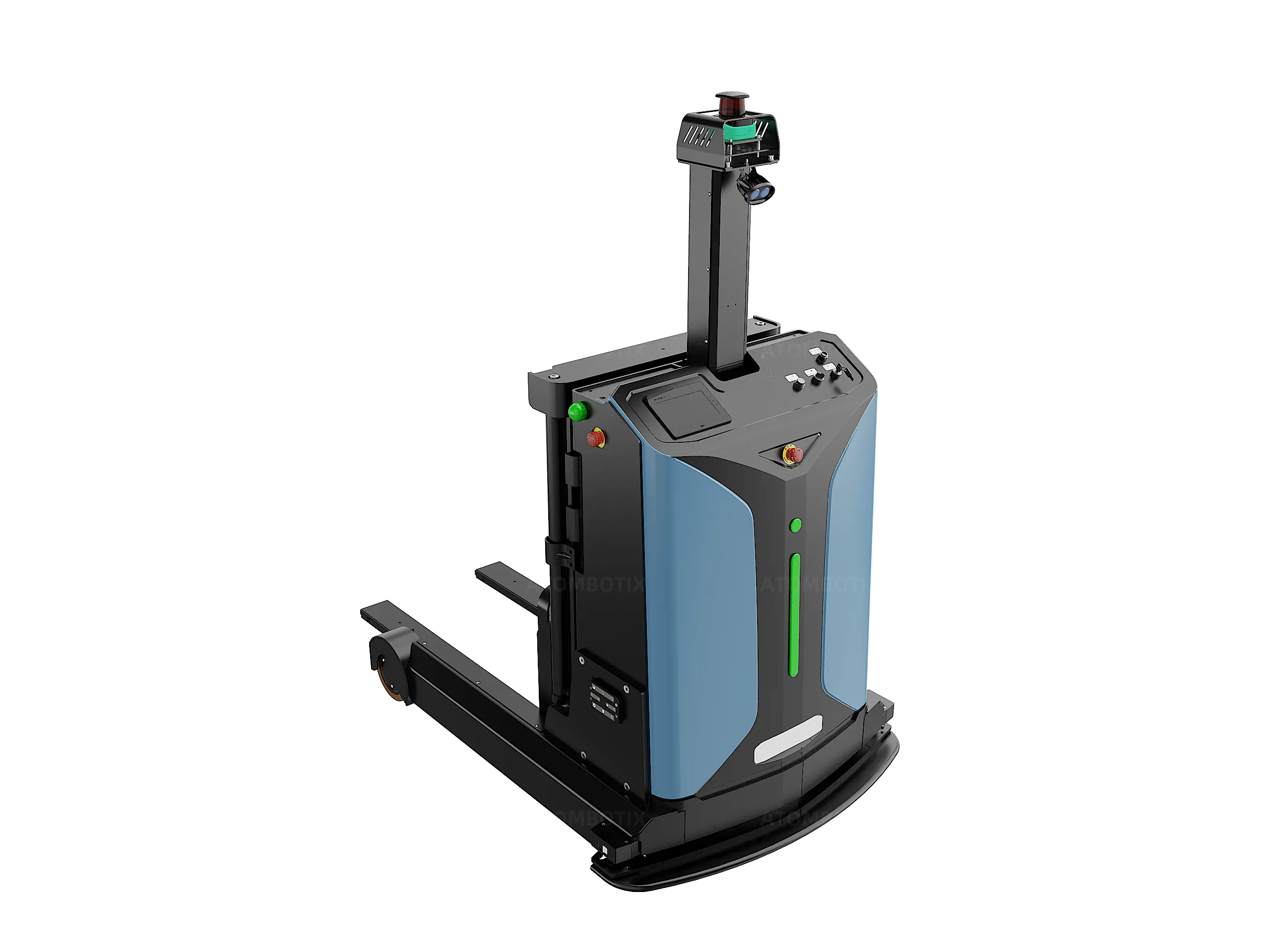

Reach Stacker 1.4T
Reach Stacker 1.4T
Rated Load Capacity
Max Lifting Height
Battery
BMS Communication
.png)
.png)

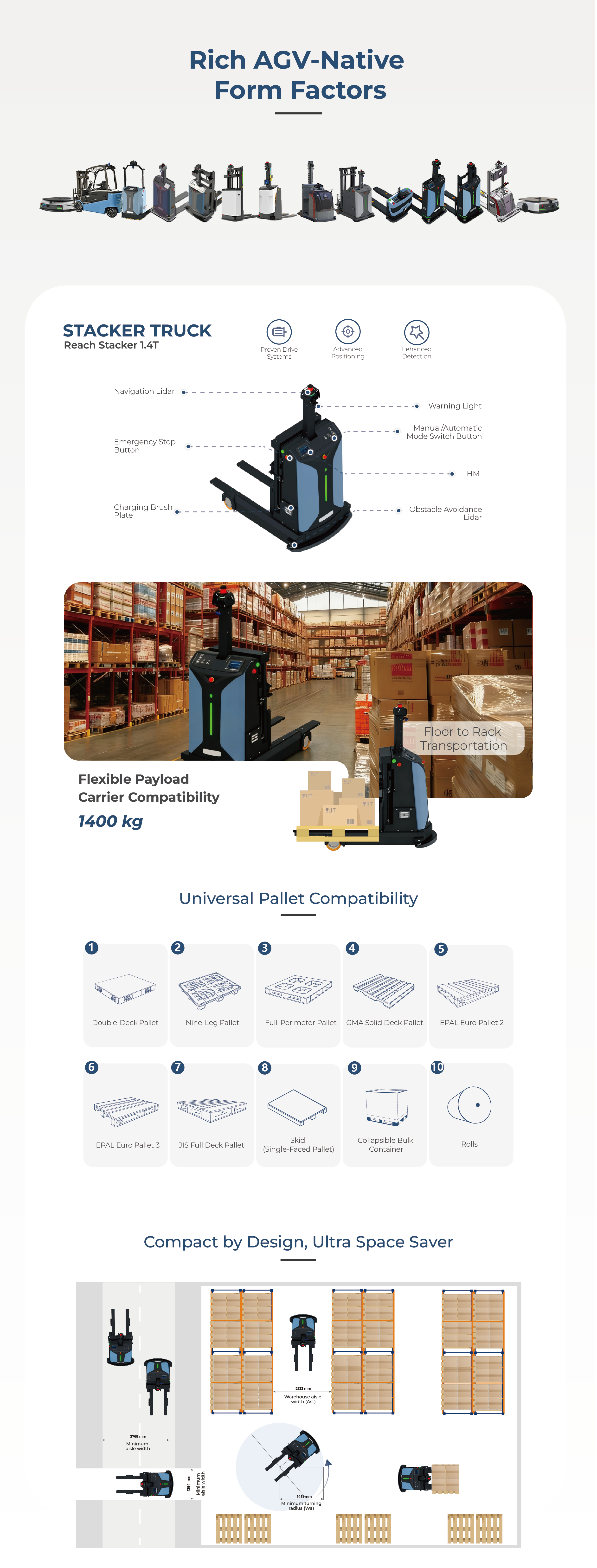

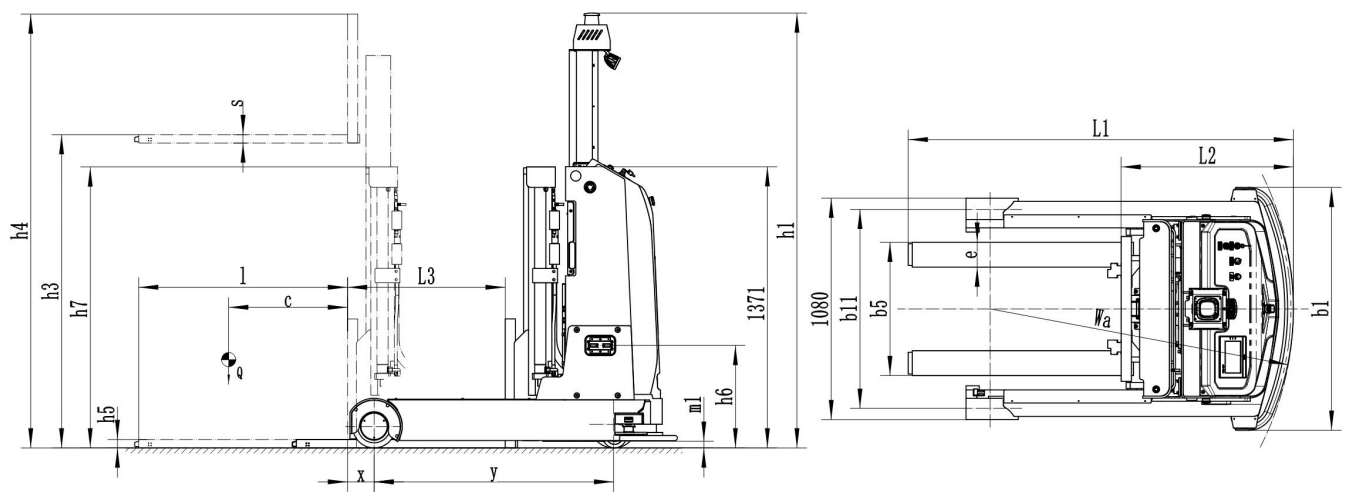

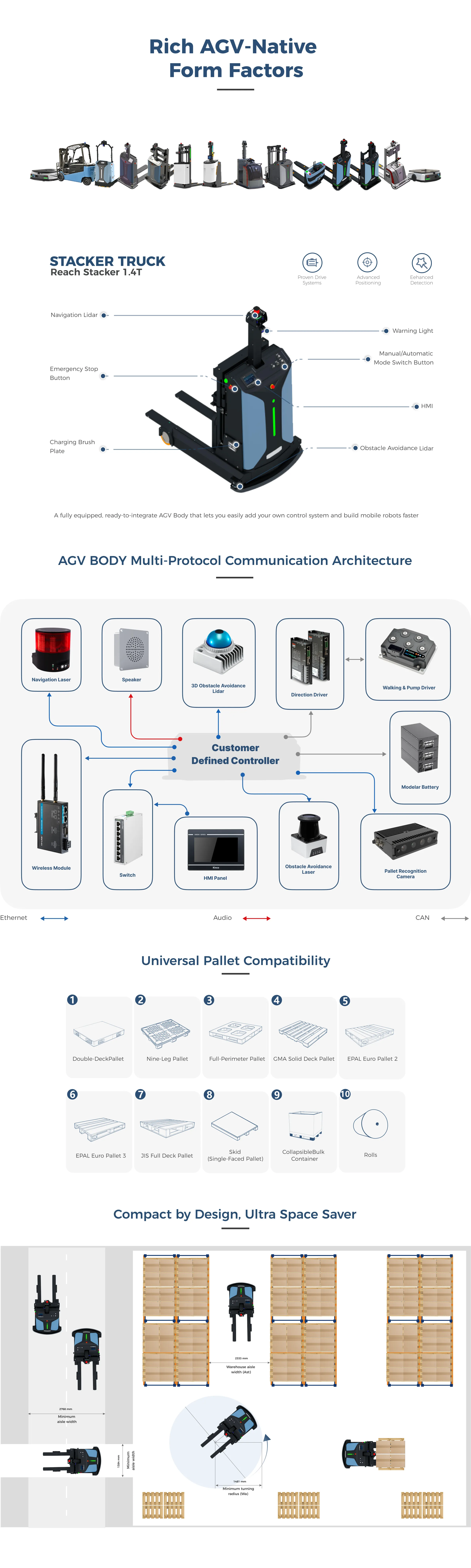

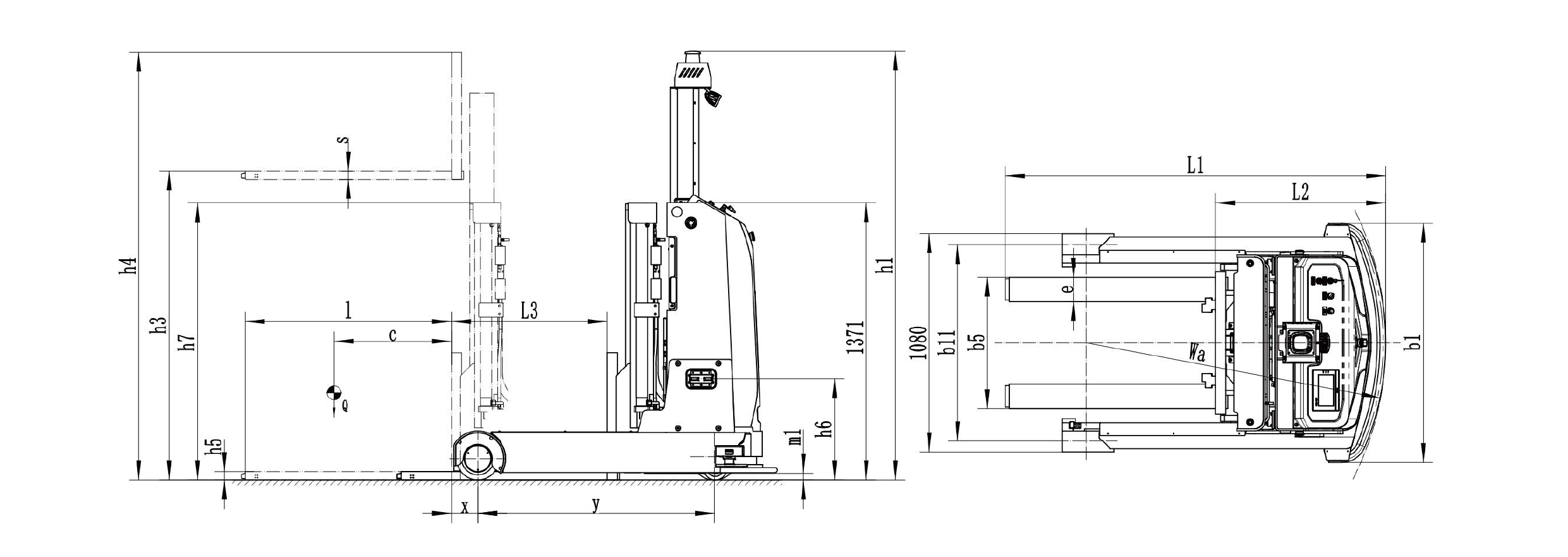

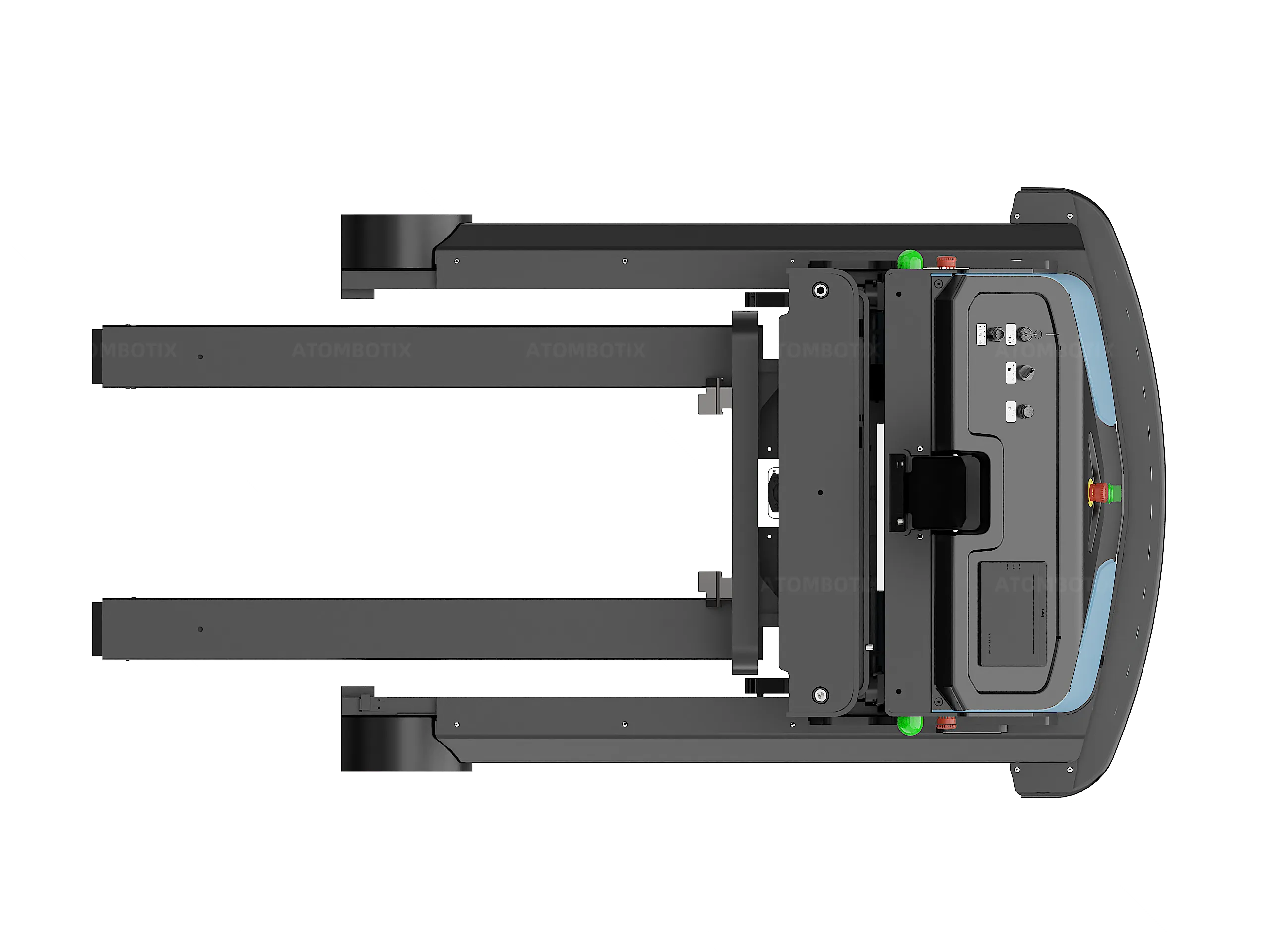

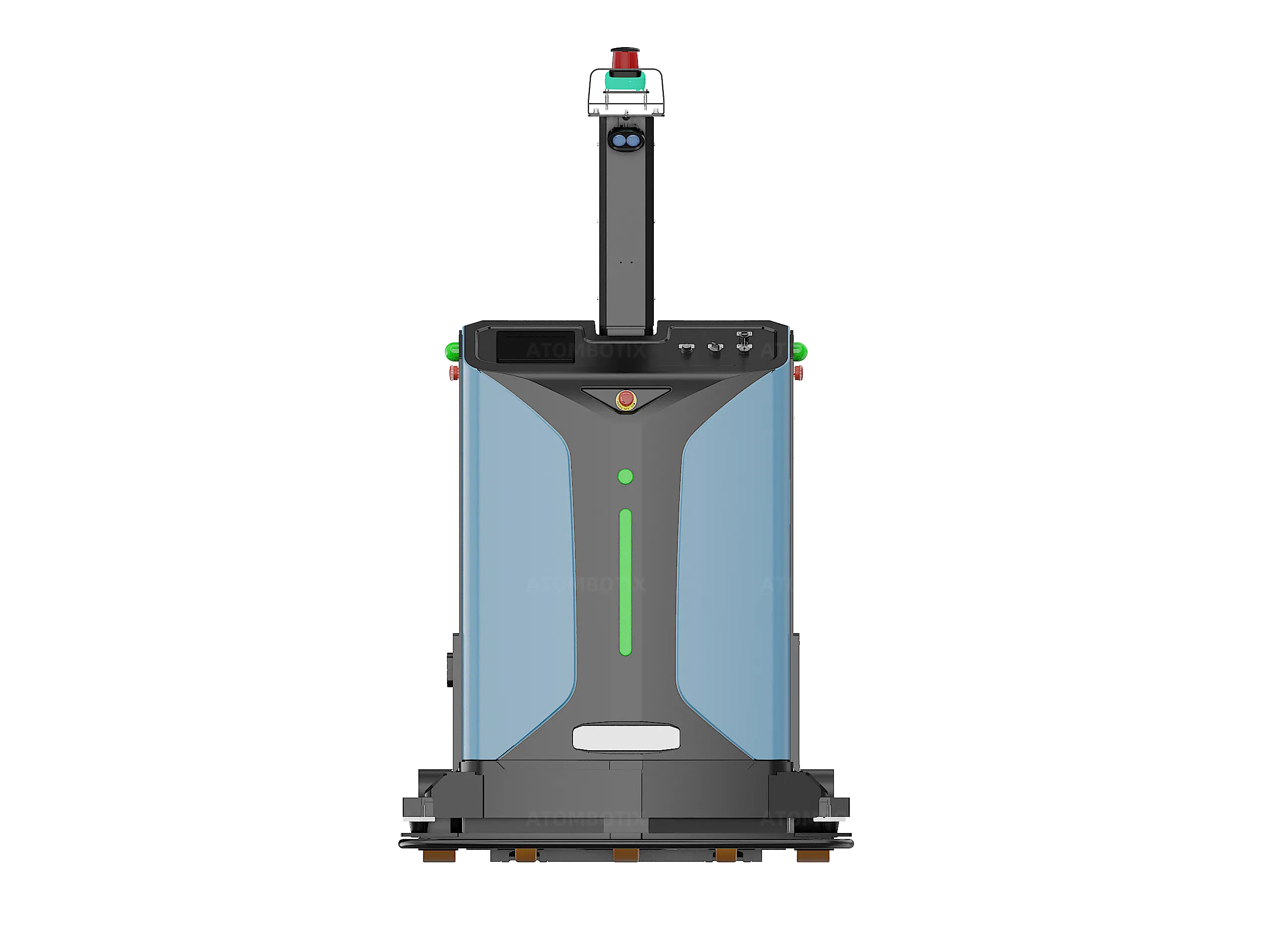

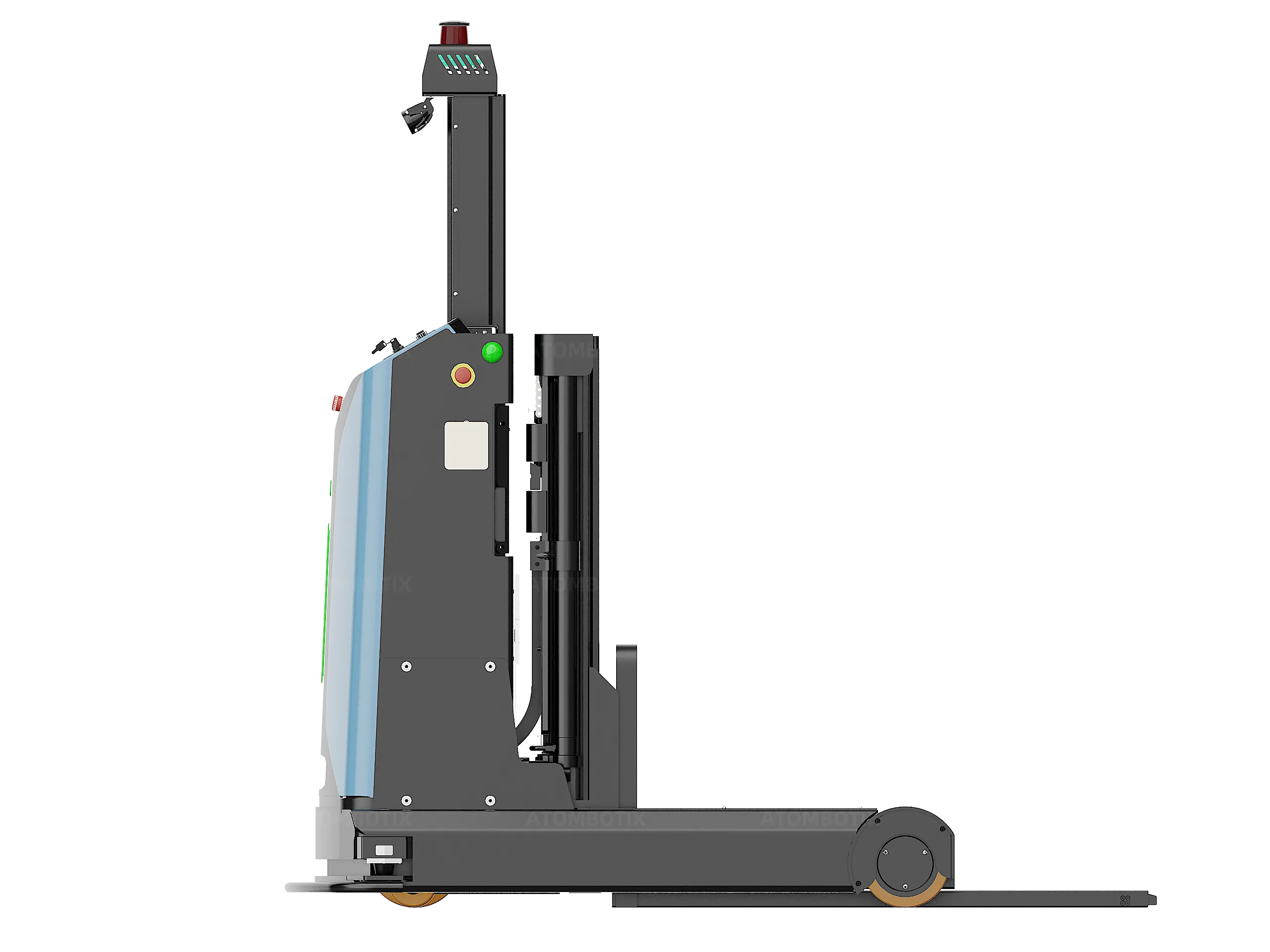

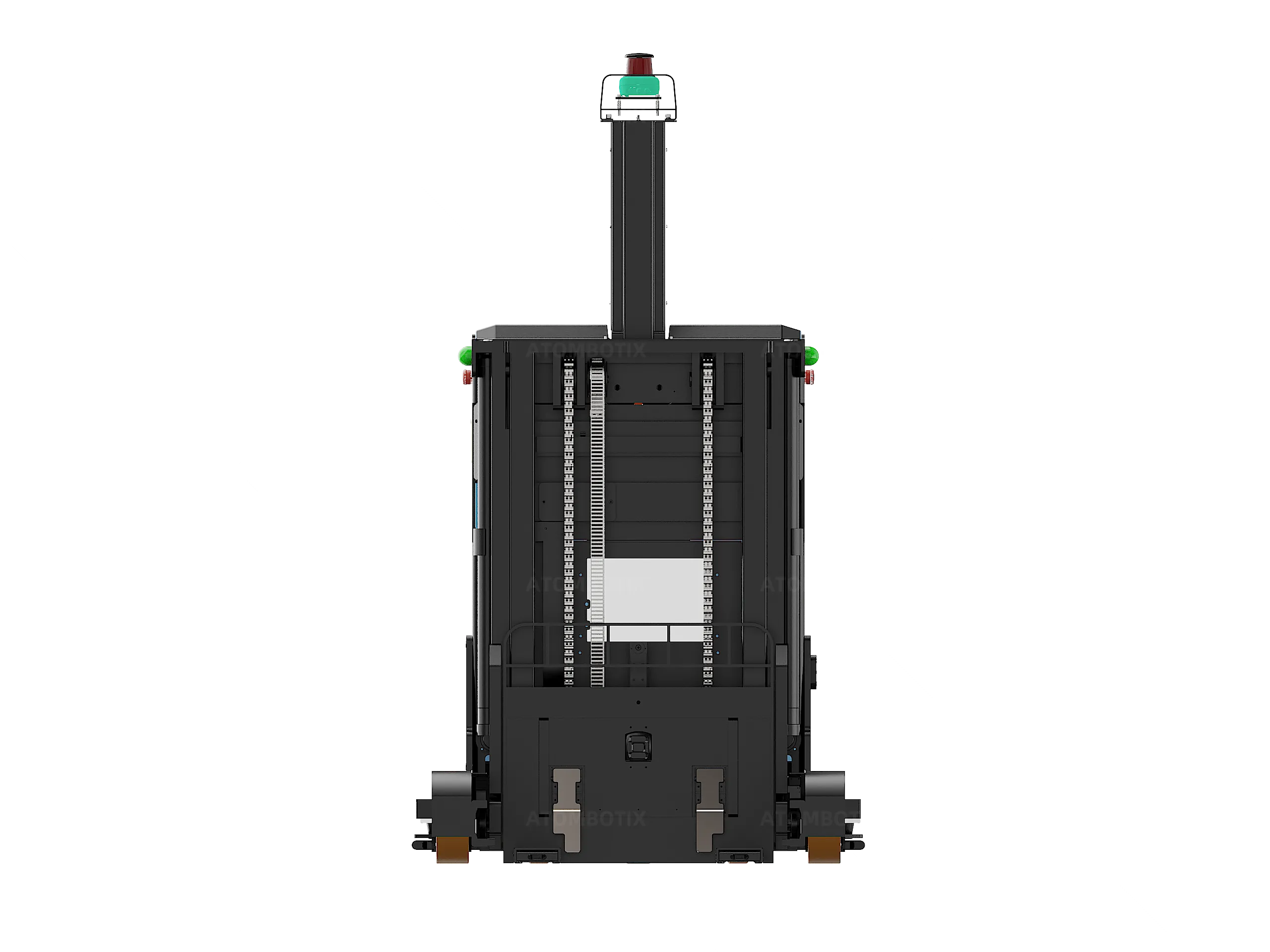

| Model | AB-FLB-RS14 |
| Feature | |
| Power Type | Electric |
| Driving Style | AGV |
| Rated Load Capacity (Q) | 1400 kg |
| Load Center Distance (C) | 500 mm |
| Front Suspension Distance (x) | 130 mm |
| Wheelbase (y) | 1170 mm |
| Weight | |
| Self Weight (Including Battery) | 1890 kg |
| Bridge Load At Full Load, Driving Side/Load-Bearing Side | 1316/1974 kg |
| Bridge Load When Unloaded, Driving Side/Load-Bearing Side | 1323/567 kg |
| Wheel | |
| Tire Type | Polyurethane |
| Tire Size, Drive Wheel | Φ230×75 mm |
| Tire Size, Load-Bearing Wheels | Φ115×55 mm |
| Tire Size, Balance Wheel | Φ210×85 mm |
| Number of Wheels, Drive Side (X=Drive Wheels)/Load-Bearing Side | 1x-2/2 |
| Track Width, Drive Side (b10) | 520 mm |
| Track Width, Load-Bearing Side (b11) | 970 mm |
| Basic Dimensions | |
| Total Height (h1) | 2120 mm |
| Total Width | 1184 mm |
| Total Length (L1) | 1881 mm |
| Vehicle Length (Excluding Fork) (L2) | 841 mm |
| Free Lifting Height (h2) | 0 mm |
| Lifting Height (h3) | 1600 mm |
| Max. Lifting Height | 3000 mm |
| Door Frame Deployment Height (h4) | 2188 mm |
| Fork Surface Minimum Height(When The Fork Is At Its Lowest) (h5) | 45 mm |
| Charging Pad Height (h6) | 500 mm |
| Fork Size (l/e/s) | 1050/120/40 mm |
| Fork Outer Width (b5) | 620 mm |
| Min. Ground Clearance of The Vehicle Body (m1) | 32 mm |
| Min. Turning Radius (Wa) | 1481 mm |
| Min. Right Angle Stacking Channel Width | 2033+200 mm |
| Right Angle Stacking Aisle Width, Pallet 800×1200 (1200 Placed Along The Fork) | / |
| Right Angle Stacking Aisle Width, Pallet 1000×1000 (1200 Placed Along The Fork) | 2097+200 mm |
| Right Angle Stacking Channel Width, Pallet 1000 × 1200 (1200 Placed Along The Fork) | / |
| Performances | |
| Driving Speed, Full Load/Empty Load | 5/5 km/h |
| Lifting Speed, Full Load/Empty Load | 115/170 mm/s |
| Descent Speed, Full Load/Empty Load | 114/114 mm/s |
| Climbing Performance, Full Load/Empty Load | 3%/5% |
| Driving Brake Mode | Electromagnetic braking |
| Motor | |
| Drive Motor Power | 2.2 kw |
| Power of Lifting Motor | 3.0 kw |
| Steering Motor Power | 0.4 kw |
| Battery Type | lithium iron phosphate |
| Drive Motor Type | 24 V asynchronous AC motor |
| Steering Motor Type | 48 V DC Servo motor |
| Lifting Mechanism | Hydraulic control |
| Communication Protocol | CAN |
| Battery | |
| Weight of Battery | 58 kg |
| Battery Type | Lithium iron phosphate |
| Battery Voltage/Rated Capacity | 24/210 V/Ah |
