Customized Button - Button Switch

Button Switch

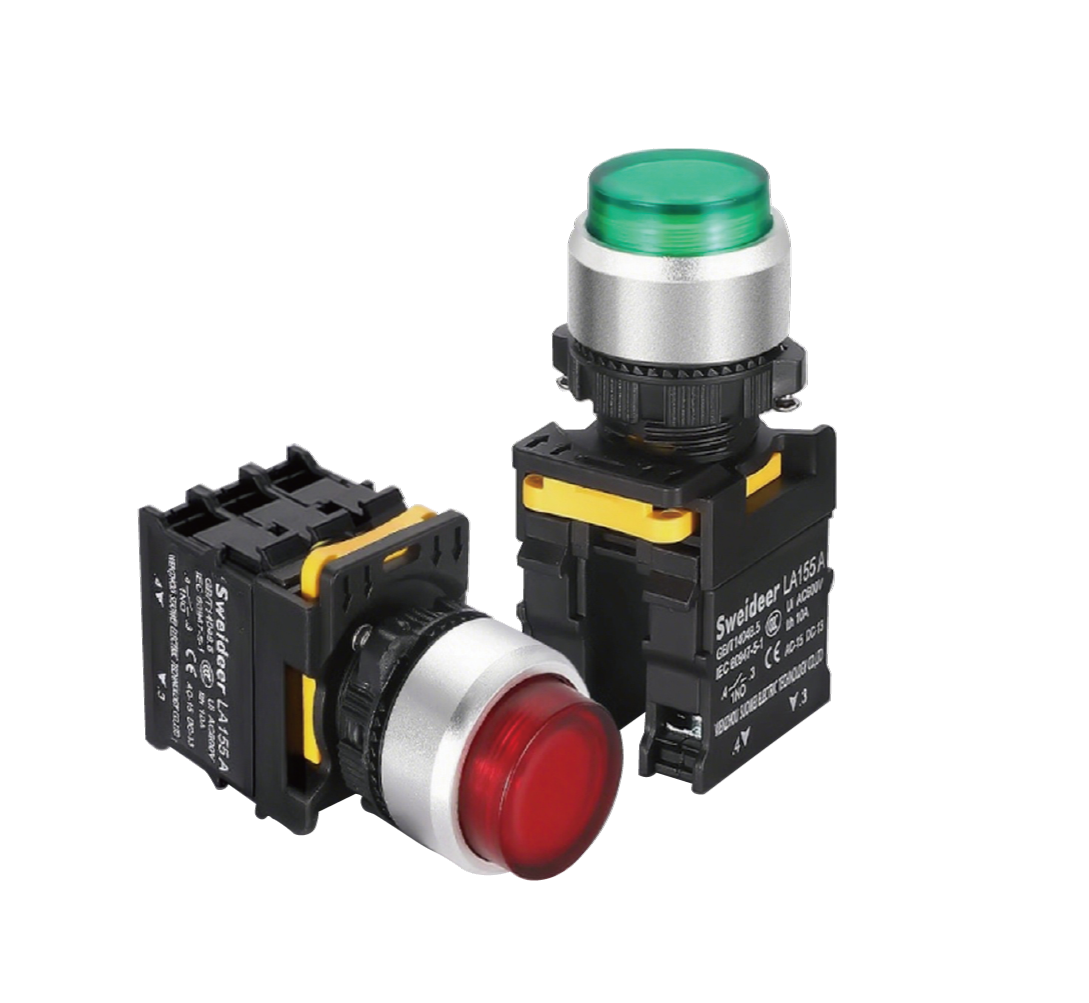

Customized Button

A rugged, high-reliability safety interface built for AGVs.

SPEC

22mm Estop
Extending

43mm behind the panel
Size

40mm
Protection

IP65

consult datasheet

Rich Configuration Options

Offers multiple color choices and various circuit configurations, allowing customized switch definitions

Temperature Resistant & Flame Retardant

Made from high-quality PC flame-retardant materials to ensure safety and reliability during frequent use

Automatic Contact Cleaning

Contacts self-clean to reduce dust and oxidation, maintaining excellent conductivity

Durable & Cost-Effective

Long service life with a high cost-performance ratio

Multiple Trigger Modes

Available in both self-locking and self-resetting push-button modes to meet diverse requirements

CE Certified

Certified by the European Union CE standards, guaranteeing quality and safety

	AB-MS-N×	AB-LS-N×	AB-MS-D×	AB-LS-D×	AB-MS-OC	AB-LS-OC
Rated Voltage	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
Heating Current	10A	10A	10A	10A	10A	10A
Operating Frequency	1200 times/h	1200 times/h	1200 times/h	1200 times/h	1200 times/h	1200 times/h
Operating Temperature	-25 – 55 ℃	-25 – 55 ℃	-25 – 55 ℃	-25 – 55 ℃	-25 – 55 ℃	-25 – 55 ℃
Storage Temperature	-30 – 70 ℃	-30 – 70 ℃	-30 – 70 ℃	-30 – 70 ℃	-30 – 70 ℃	-30 – 70 ℃
Operating Humidity	45% – 85% RH	45% – 85% RH	45% – 85% RH	45% – 85% RH	45% – 85% RH	45% – 85% RH
IP Rating	IP54	IP54	IP54	IP54	IP54	IP54
Certification	CE	CE	CE	CE	CE	CE
LED	Optional	Optional	Optional	Optional	Optional	Optional
Contact Specification	NC/NO	NC/NO	2NC/2NO	2NC/2NO	NC&NO	NC&NO
Operating Characteristics	Momentary Switch	Latching Switch	Momentary Switch	Latching Switch	Momentary Switch	Latching Switch
