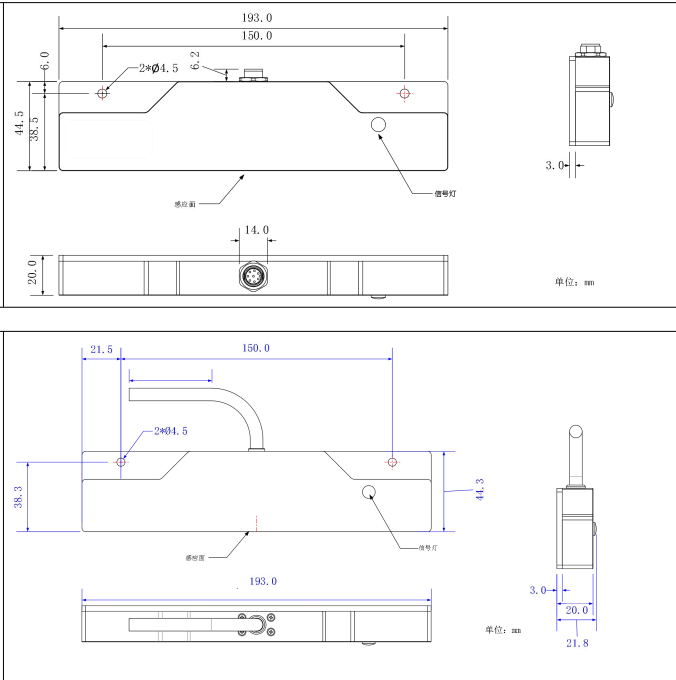

Magnetic Sensor-16 Pro
Magnetic Sensor-16 Pro
Detection Height
Adjustable Sensitivity
Communication
Durability
| Model | AB-MG-CNS-MGS-160ND |
| Performance Parameters | |
| Detection Height | 10-50 m (CNS-MS-30N) |
| Detection Range | ±75 mm |
| Detection Accuracy | 1 mm |
| Number of Output Digital Quantity Points | 16 - bit digital quantity |
| Distance Between Detection Points | 10 mm |
| Sensor Sensitivity | 0-9 Level (Configurable) |
| Induction Polarity | N-pole, S-pole, NS-pole (Configurable) |
| Detection Signal | N/S pole magnetic field signal |
| Detection Range of Magnetic Field Intensity | 1.5 to 95 Gauss |
| Magnetic Strip Detections Number | 3 |
| Electrical Parameters | |
| Rated Voltage | 24V ± 10% |
| Woriking Voltage | 10 - 32V |
| Working Current | < 20mA (Typical Value) |
| Power | < 0.5W |
| Basic Parameters | |
| Interface | RS232, RS485, I/O, CANOPEN |
| Magnetic Strip Position Deviation Data | |
| Magnetic Field Strength Detection Data | |
| Position Output | Supported |
| Switch Signal Output | |
| Strength Signal Output | Supported |
| Branch Selection Function | Supported (Left branch, Straight, Right branch commands) |
| LED | Red, Green |
| Cable Length | Optional |
| Housing Material | Aluminum alloy |
| Protection Class | IP65 |
| Environmental Parameters | |
| Temperature | -10℃ – 50℃, indoor |
| Humidity | < 80% Rh, without codensation and frosting |
